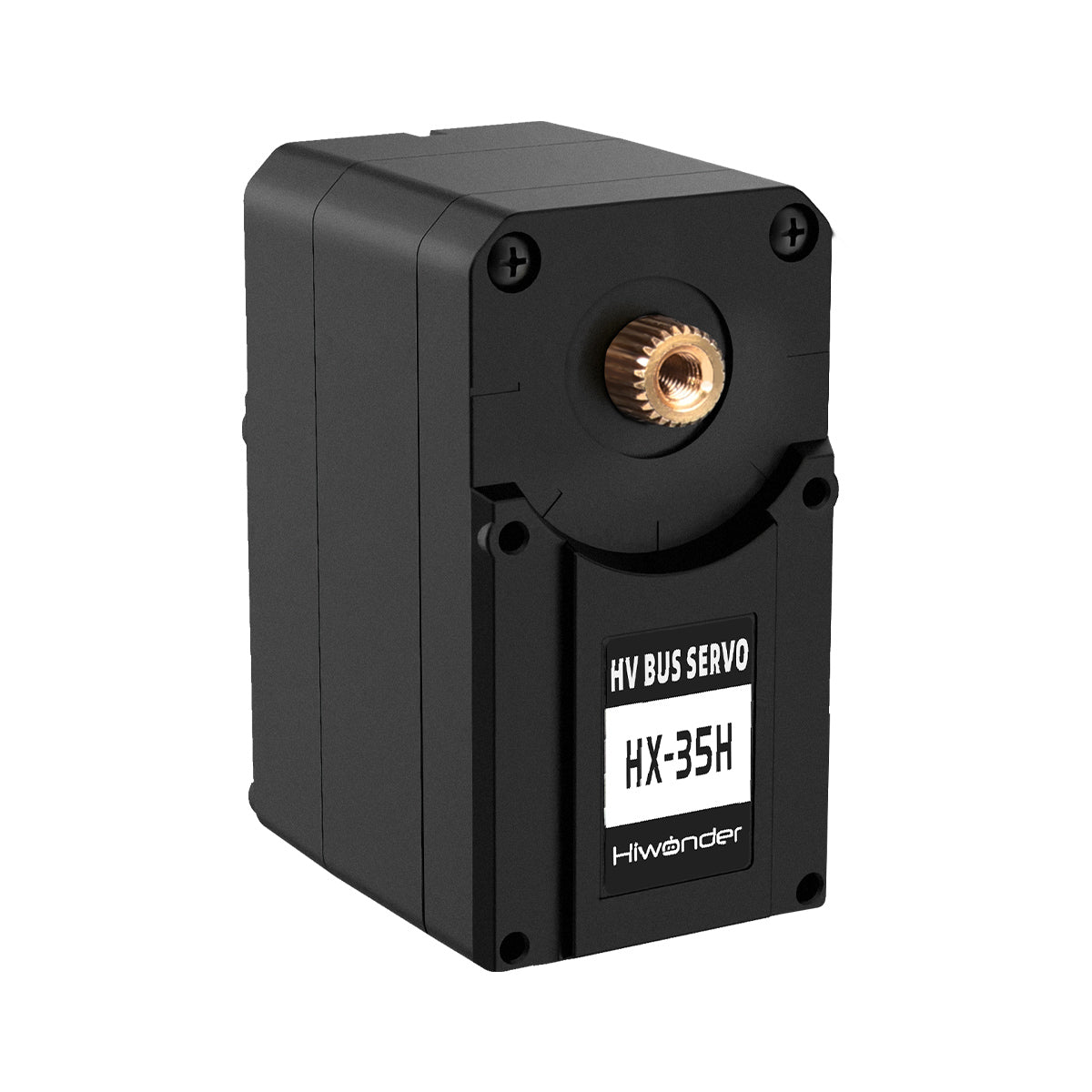

Hiwonder HX-35H Serial Bus High Voltage Servo with Double Shaft, 35KG Strong Torque and Data Feedback Function
Product SKU: 21100032
- User-friendly ports
- High precision and strong torque
- Support temperature, voltage and position feedback
- Support two working modes: servo mode and gear motor mode
- Provide 51, Arduino, STM32, Raspberry Pi source code
Available:
Only 9697 items in stock
In stock
In stock
Out of stock
Back in stock
$21.99
Save
% $-21.99
Product Description
Hiwonder HX-35H is a serial bus high voltage servo with 35kg strong torque. It can provide temperature and voltage feedback for long service life. The adopted high-accuracy potentiometer and metal gear contributes to greater performance. Besides, serial bus interface design helps to get rid of messy wiring and brings beautiful outlook to your robot project!
Hiwonder HX-35H is a serial bus high voltage servo with 35kg strong torque. It can provide temperature and voltage feedback for long service life.
The adopted high-accuracy potentiometer and metal gear contributes to greater performance. Besides, serial bus interface design helps to get rid of messy wiring and brings beautiful outlook to your robot project!
The adopted high-accuracy potentiometer and metal gear contributes to greater performance. Besides, serial bus interface design helps to get rid of messy wiring and brings beautiful outlook to your robot project!
Feature
- Use high-accuracy potentiometer for angle feedback
- Adopt metal gear for higher torque and less noise
- Serial bus interface design beautifies the looking and facilitates the wiring
- Support temperature and voltage feedback function to effectively protect the servo
- Support two working modes, including servo mode and gear motor mode
- Use high-accuracy potentiometer for angle feedback
- Adopt metal gear for higher torque and less noise
- Serial bus interface design beautifies the looking and facilitates the wiring
- Support temperature and voltage feedback function to effectively protect the servo
- Support two working modes, including servo mode and gear motor mode
Clean Wiring
Clean Wiring
Servos can be connected in series through these two interfaces. And there is an I/O port for serial servos on Hiwonder controller, which makes the project have clean wiring and beautiful outlook.
Serial Bus Interface
35KG High Torque
Angle Read Back
2 Operation Modes
Metal Gear
Short and Compact
High Accuracy Potentiometer
ID Identification, Bus Communication
Temperature and Voltage Feedback
Serial Bus Interface
35KG High Torque
Angle Read Back
2 Operation Modes
Metal Gear
Short and Compact
High Accuracy Potentiometer
ID Identification, Bus Communication
Temperature and Voltage Feedback
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, stalling alarm and voltage alarm for servos.

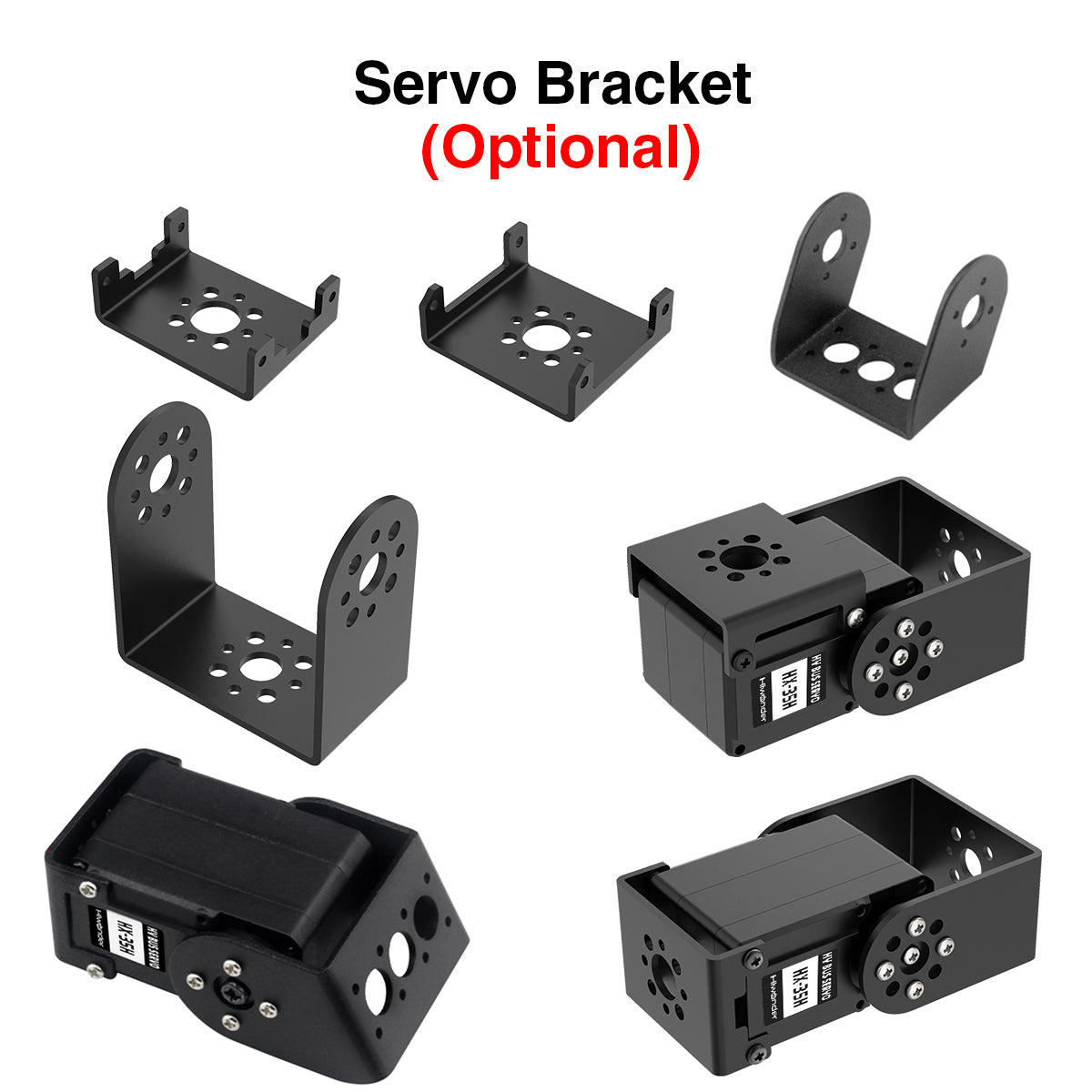

Work with Servo Bracket
Work with Servo Bracket

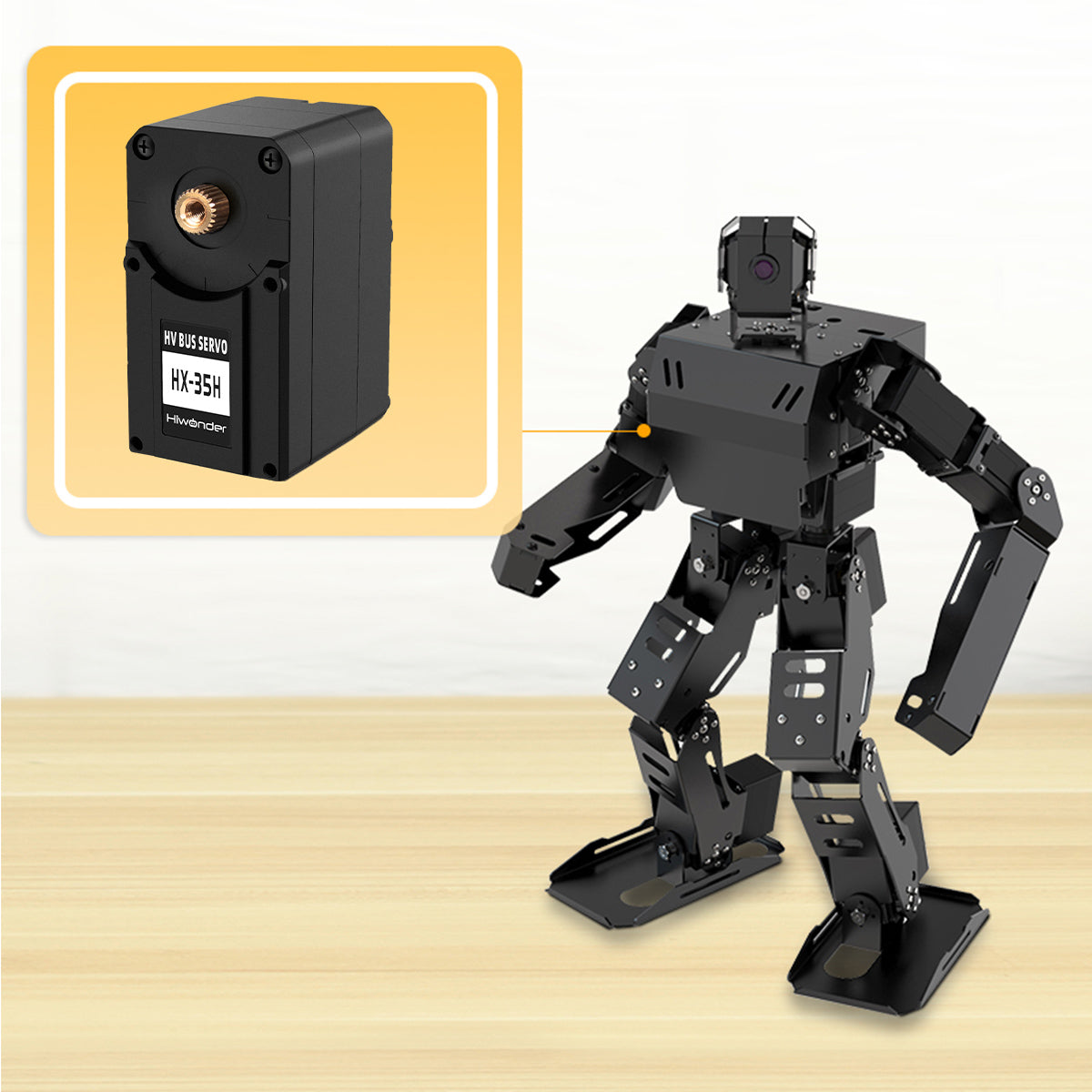

Applicable Scenario
HX-35H servo can combine with different brackets to build more creative robot project
Packing List
Packing List
| Item | Specification |
| Name | HX-35H serial bus high voltage servo |
| Brand | Hiwonder |
| Weight | 52g |

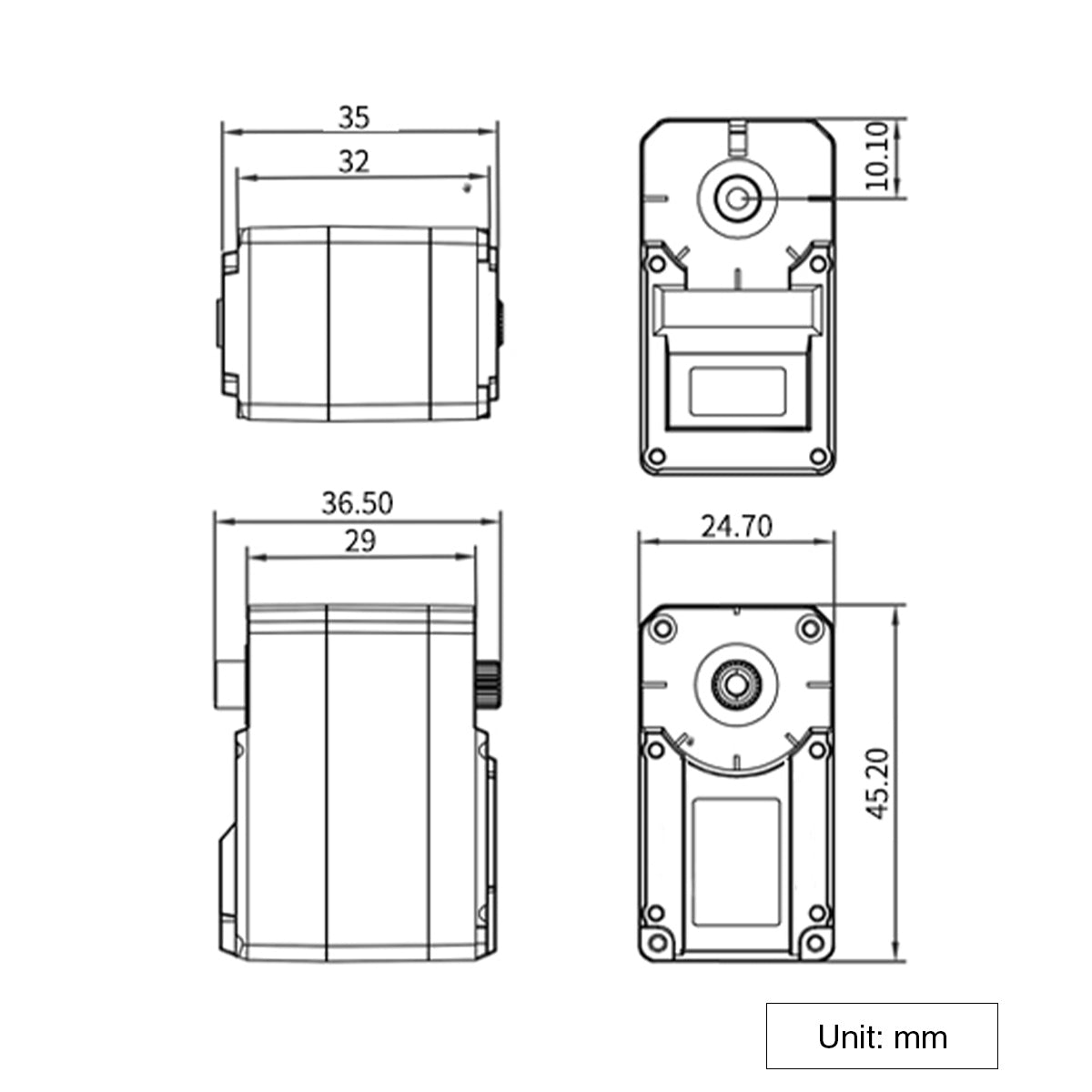

| Dimension | 45.2 x 24.7 x 35mm |
| Working voltage | 9-12.6v |
| Rotation speed | 0.18sec / 60° 11.1v |
| Rotation torque | 25kg.cm 11.1v |
| Static maximum torque | 35kg.cm 11.1v |
| Rotation range | 0-240° |
| No-load current | 100mA |
| Stall current | 3A |
| Servo accuracy | 0.3° |
| Controllable angle range | 0-1000,corresponding to 0-240° |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Storage | save data when power off |
| Servo ID | can be set to 0-253.1 by default |
| Angle read back function | support |
| Protection | avoid stalling and overheat |
| Data feedback | temperature, voltage, position |
| Working mode | servo mode and gear motor mode |
| Gear tape | metal gear |
| Servo wire length | 20cm |
| Connector | 5264-3P |
| Applicable to | joints of bionic robots |
| Package List |

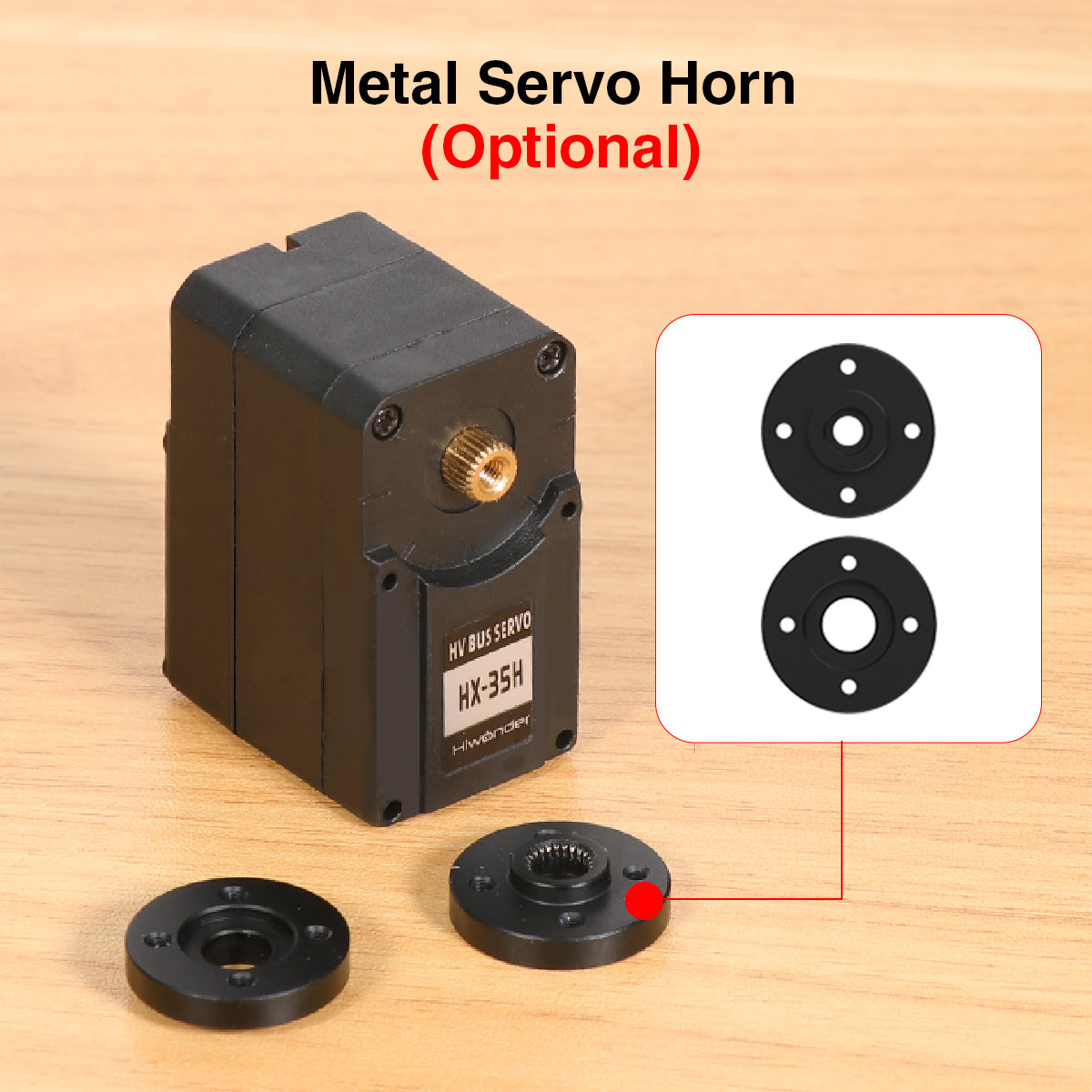

1* HX-35H servo 1* Plastic main servo horn 1* Plastic assistant servo horn 1* Servo wire (20cm) 1* Screw bag 1* Servo bracket pack (optional) 1* Metal servo horn pack (optional) |
Questions & Answers
Have a Question?
-
When the servo is currently in the middle of execution of a previously sent command, can I send a new command without affecting the current operation? For example, let's say I previously sent a SERVO_MOVE_TIME_WRITE command to the servo to go to a position of 120 degrees in 10 seconds. And then, 2 seconds later (when the servo is still rotating), I send another command SERVO_MOVE_TIME_WAIT_WRITE to the servo but NOT actually start the move. Will this command affect the current servo rotation? Or will it only affect the servo rotation after I send the SERVO_MOVE_START command?
In a task, sending a new control instruction will impact the progress of the current instruction, either interrupting it and reporting an error, or executing the new instruction.
