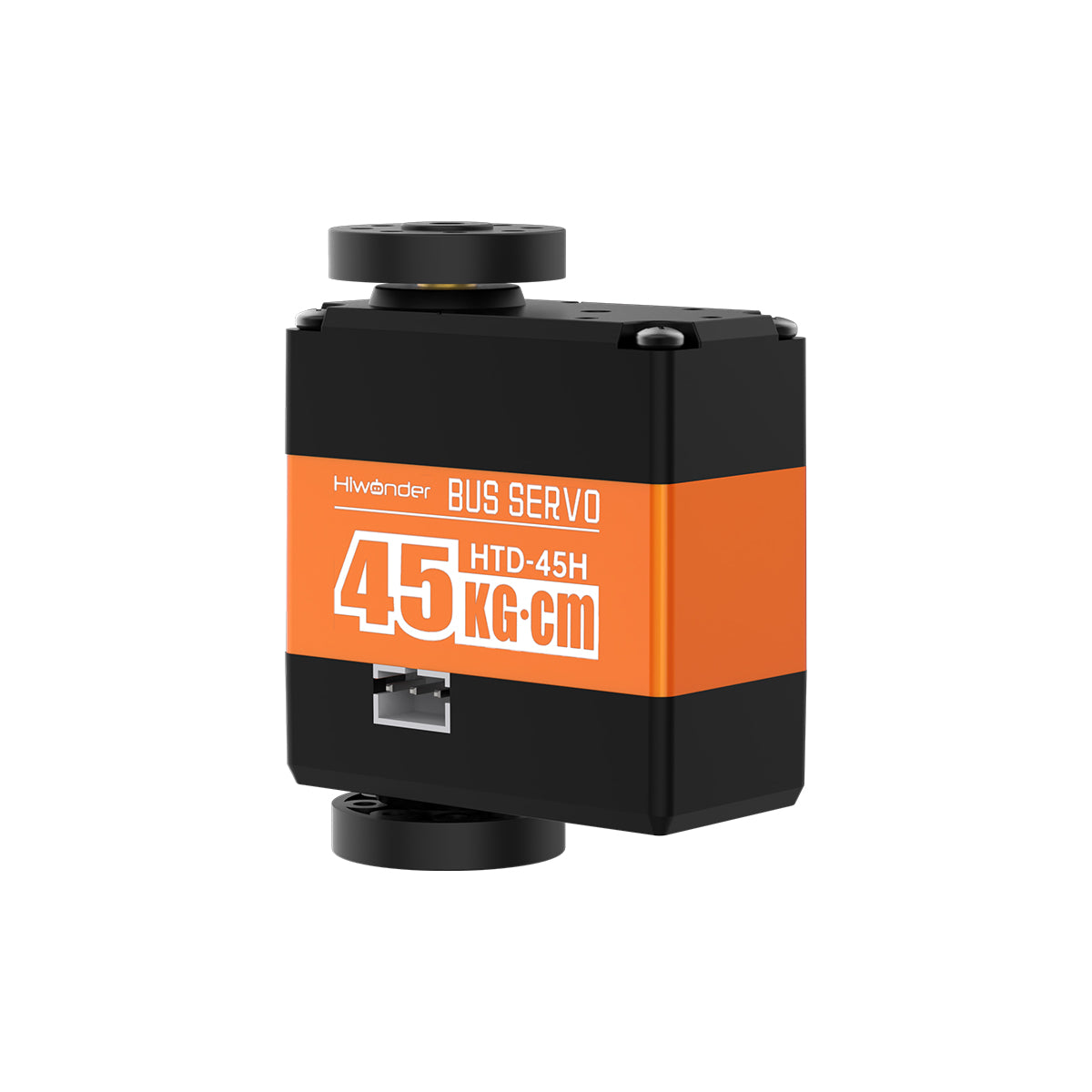

Hiwonder HTD-45H High Voltage Serial Bus Servo 45KG Torque with Three Connectors and Data Feedback

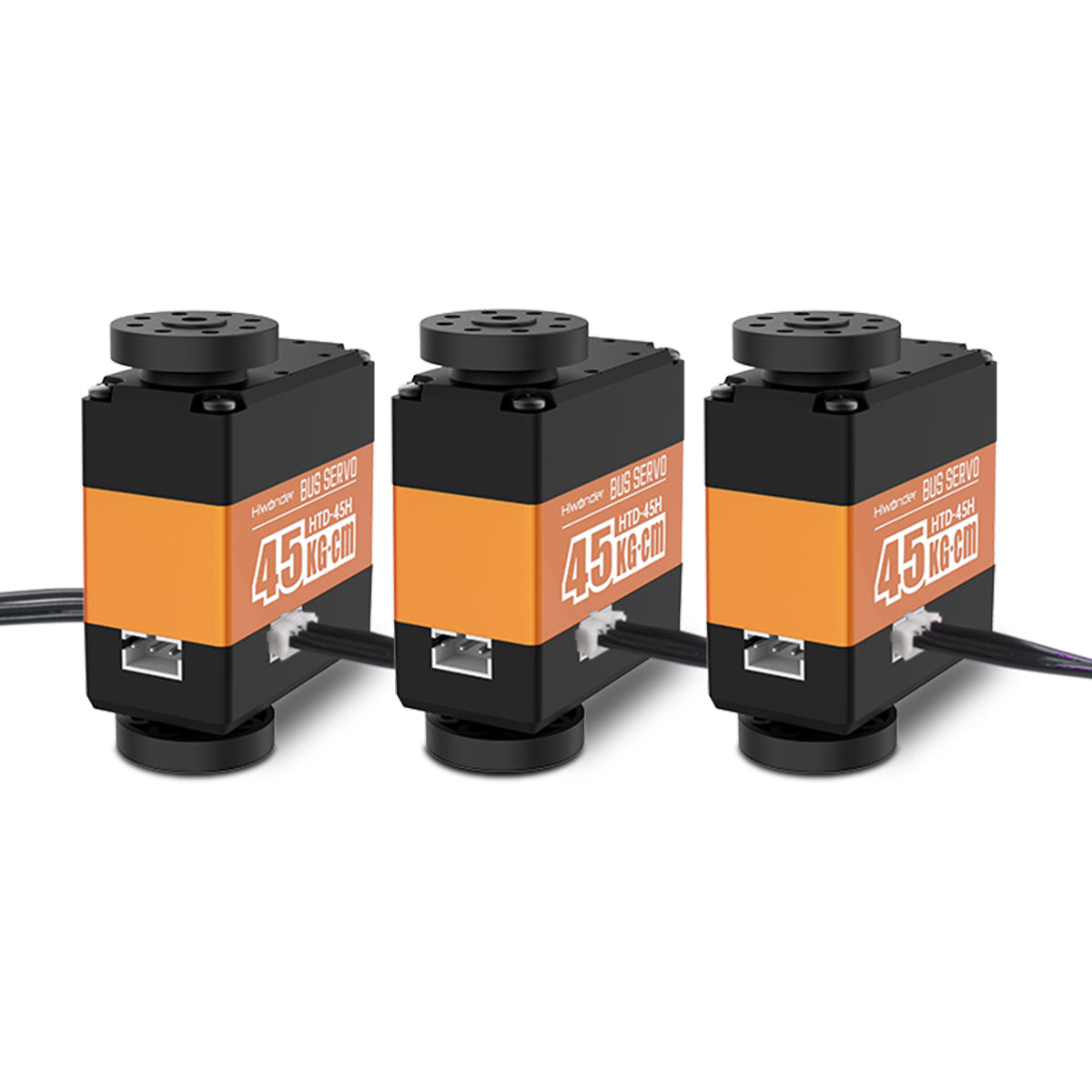

- Three connectors for clean wiring
- High precision and strong torque
- With real-time temperature, voltage and position feedback
- Provide 51, Arduino, STM32 and Raspberry Pi control source code
-
Support position/temperature/voltage feedback for protecting the servo from burning
-
With the TTL/USB debugging board, the servo can be set through the provided PC software
-
High-precision potentiometer for more stable operation
-
Provide 51, Arduino, STM32, and Raspberry Pi control source code

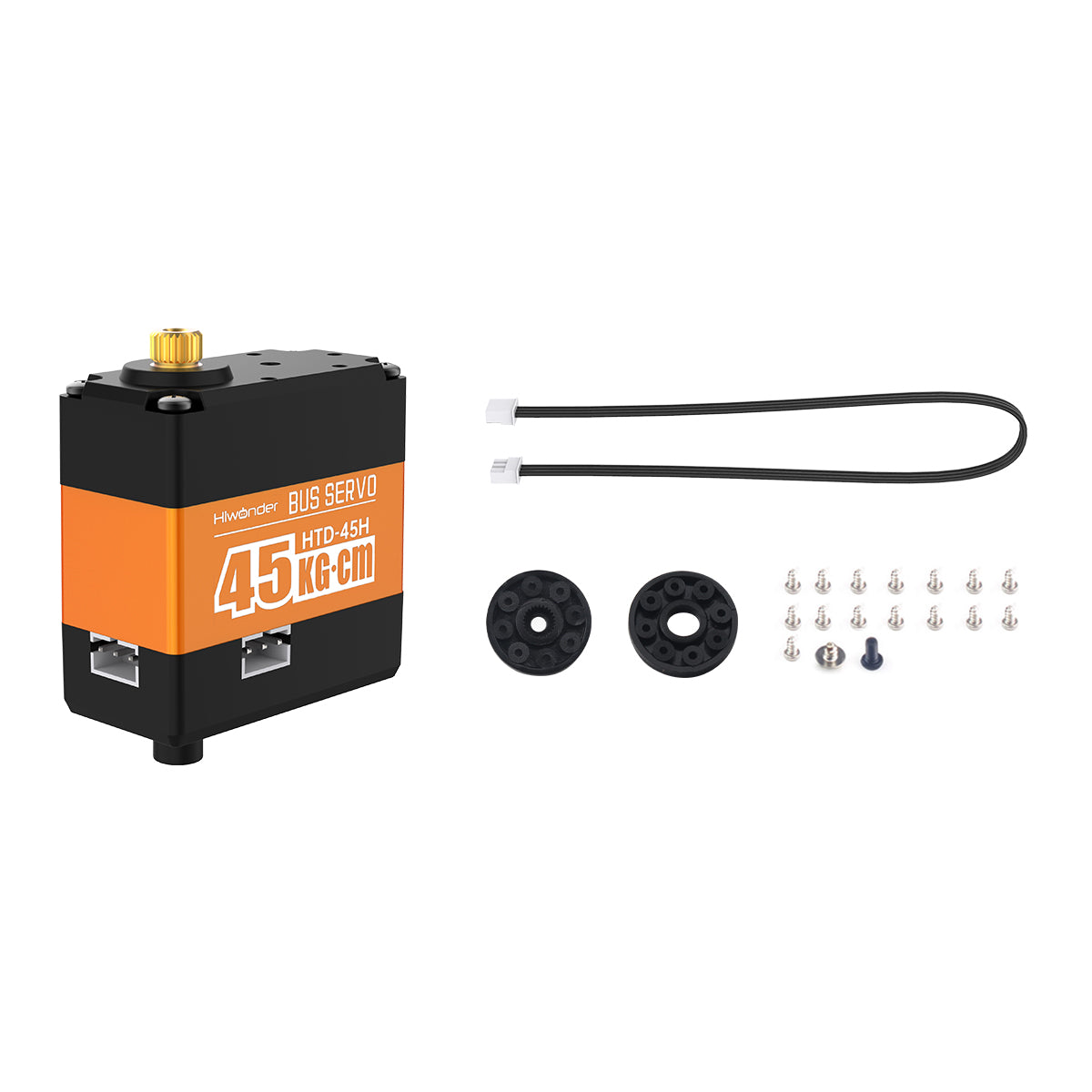

1 x Plastic main servo horn
1 x Plastic assistant servo horn
1 x Servo wire (20cm)
1 x Screws

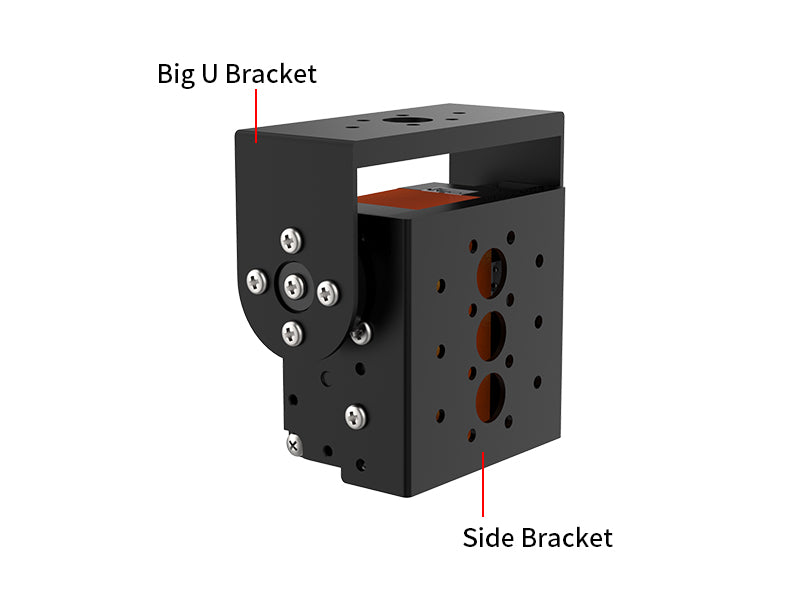

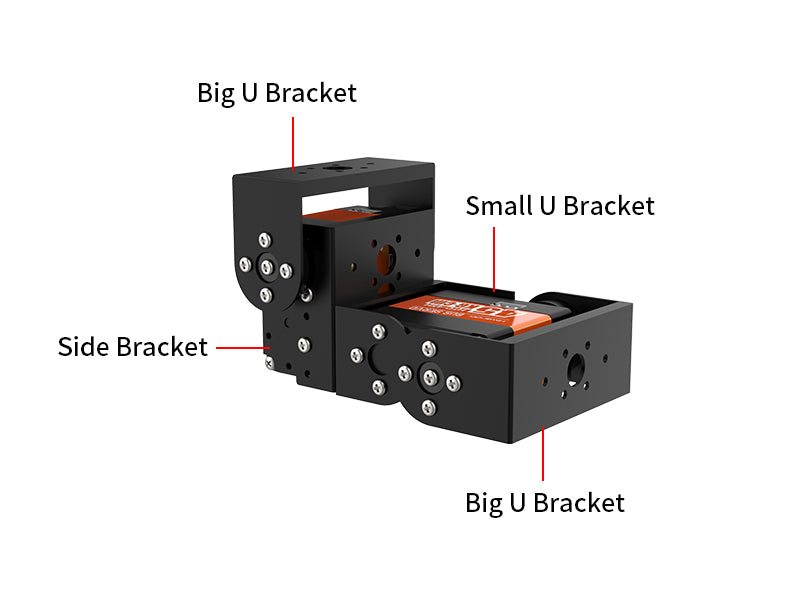

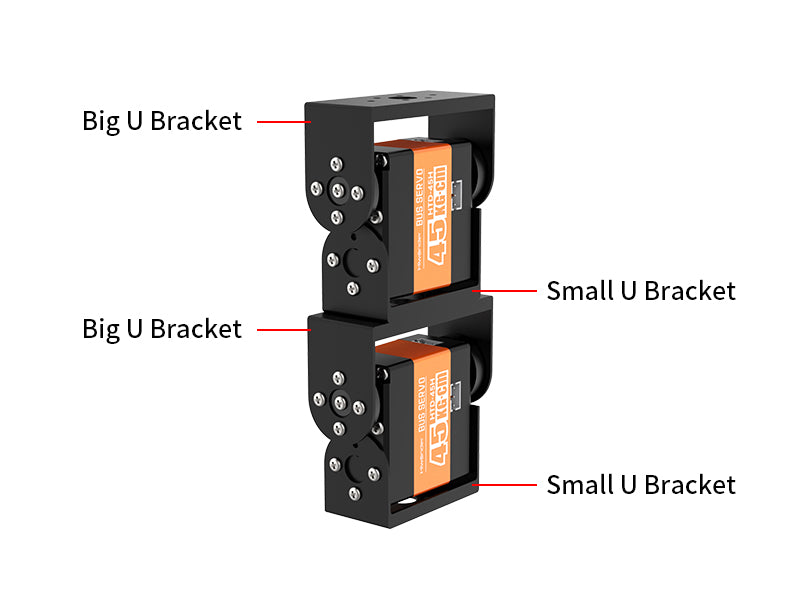

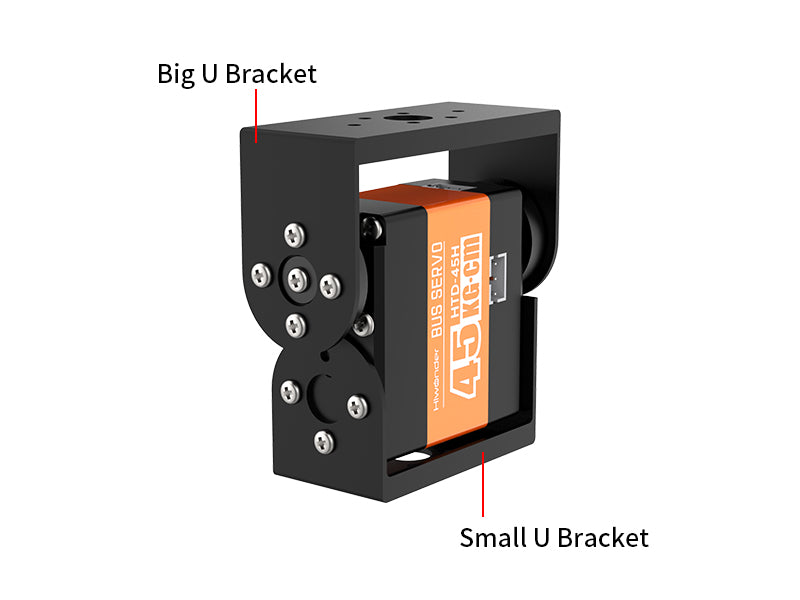

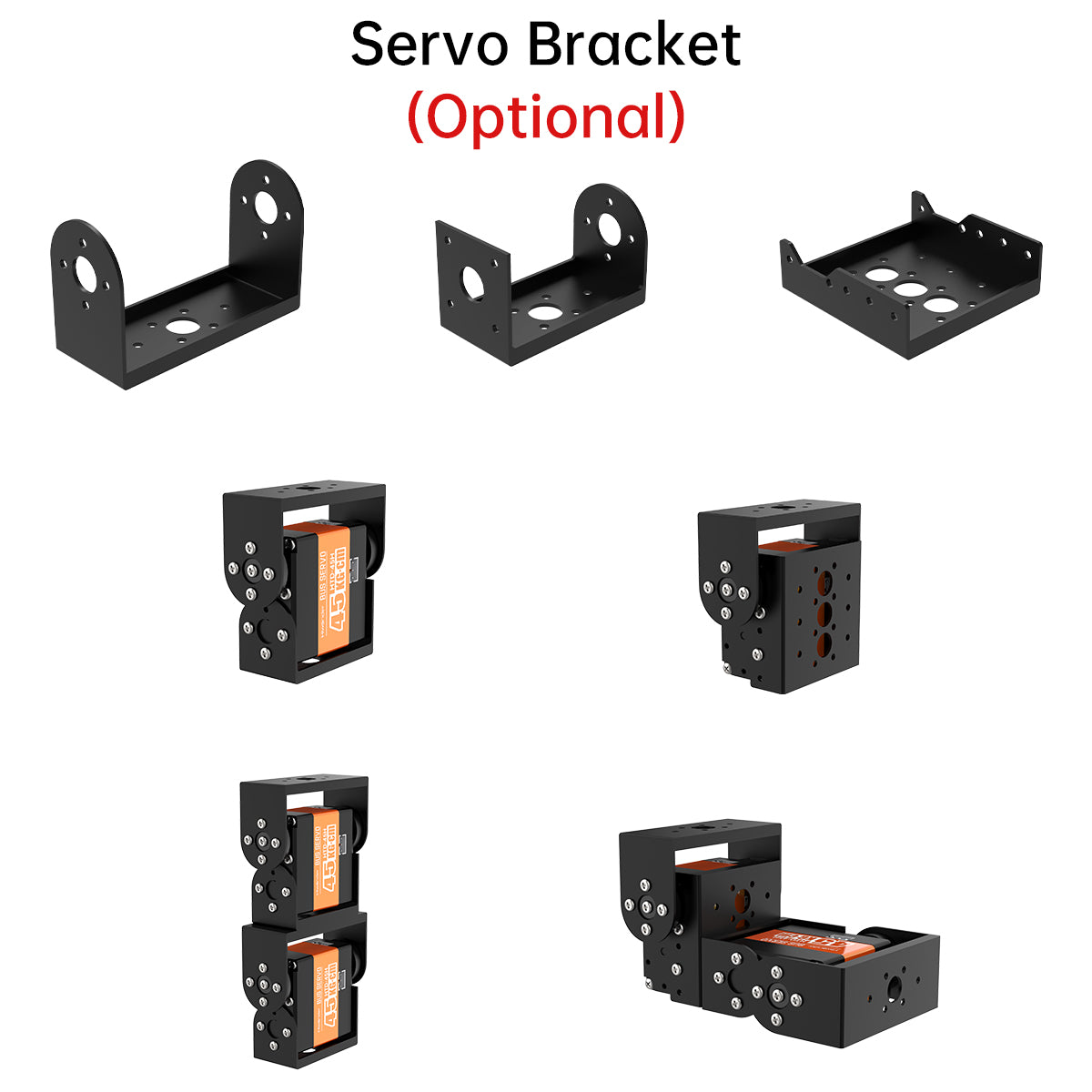

1 x Big U bracket (optional)
1 x Small U bracket (optional)
1 x Side bracket (optional)

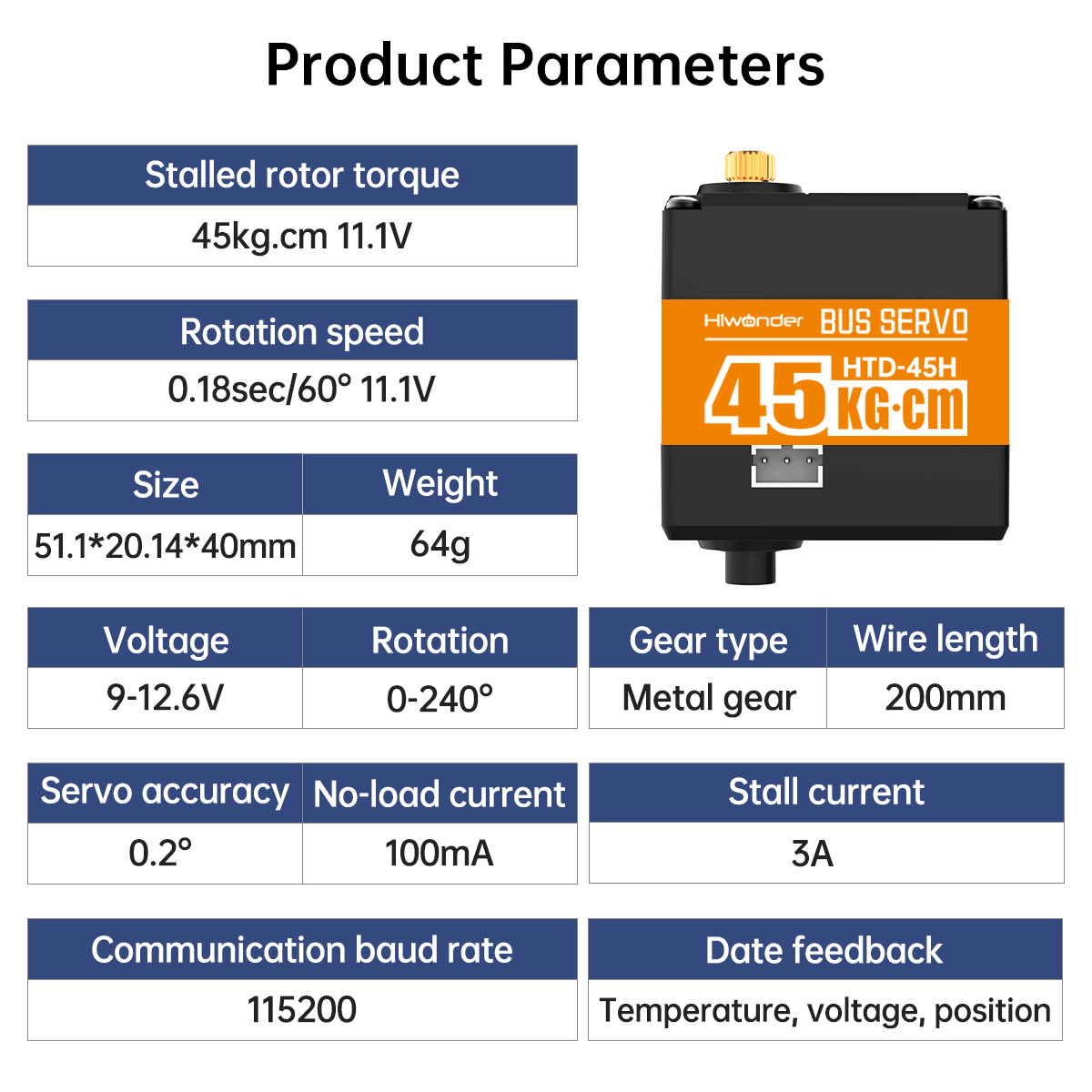

| Item | Specification |
| Name: | HTD-45H serial bus high voltage servo |
| Brand: | Hiwonder |
| Weight: | 64g |

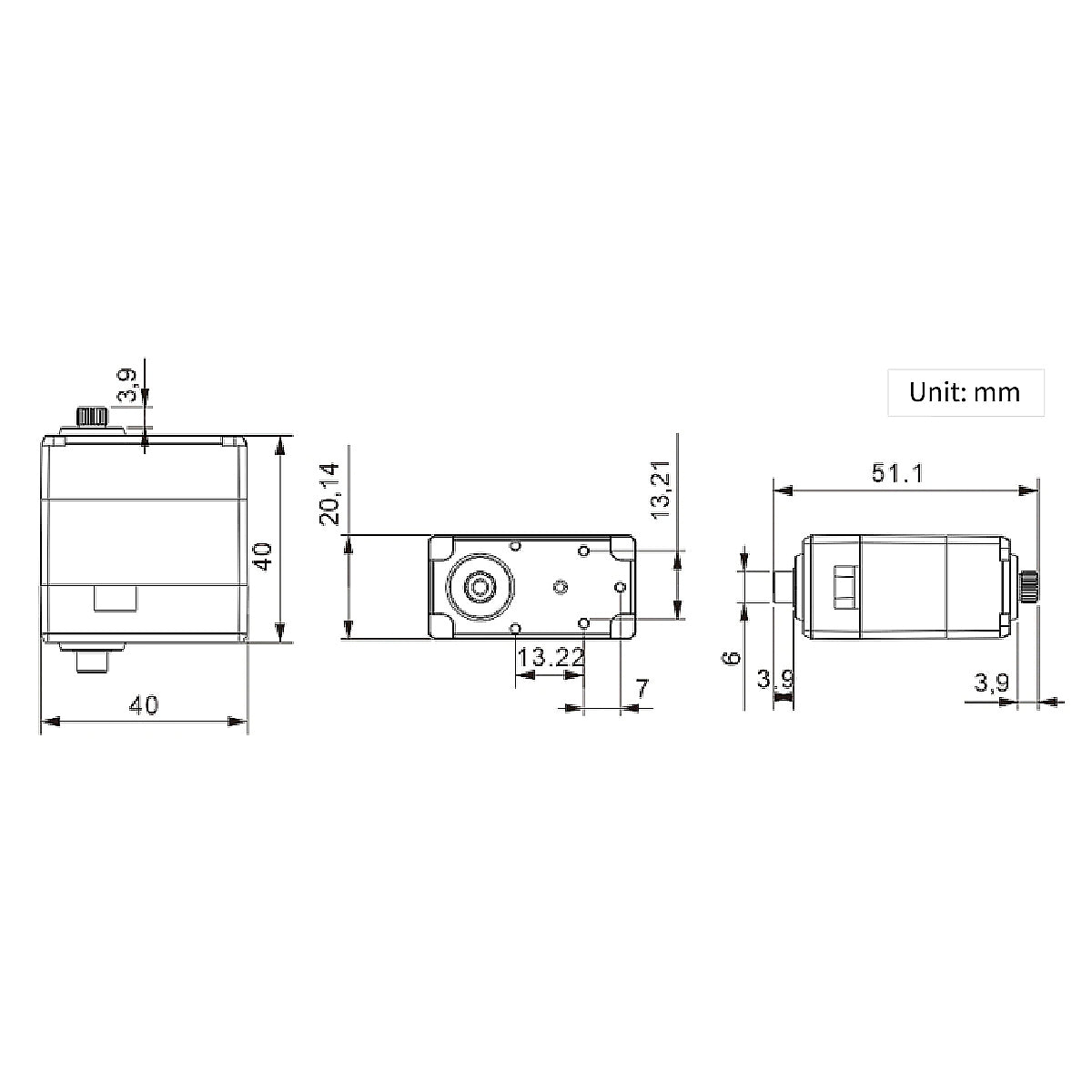

| Dimension: | 51.1×20.14×40mm |
| Working voltage: | 9-12.6V |
| Rotation speed: | 0.18sec/60°11.1V |
| Locked torque: | 45kg.cm 11.1V |
| Static maximum torque: | 45kg.cm 11.1V |
| Rotation range: | 0°-240° |
| No-load current: | 100mA |
| Stall current: | 3A |
| Servo accuracy: | 0.2° |
| Controllable angle range: | 0~1000, corresponding to 0~240° |
| Control method: | UART serial command |
| Communication baud rate: | 115200 |
| Storage: | Save data when power off |
| Servo ID: | Can be set to 0~253, 1 by default |
| Angle read back function: | Support |
| Protection: | Avoid stalling and overheat |
| Date feedback: | Temperature, voltage, position |
| Working mode: | Servo mode and gear motor mode |

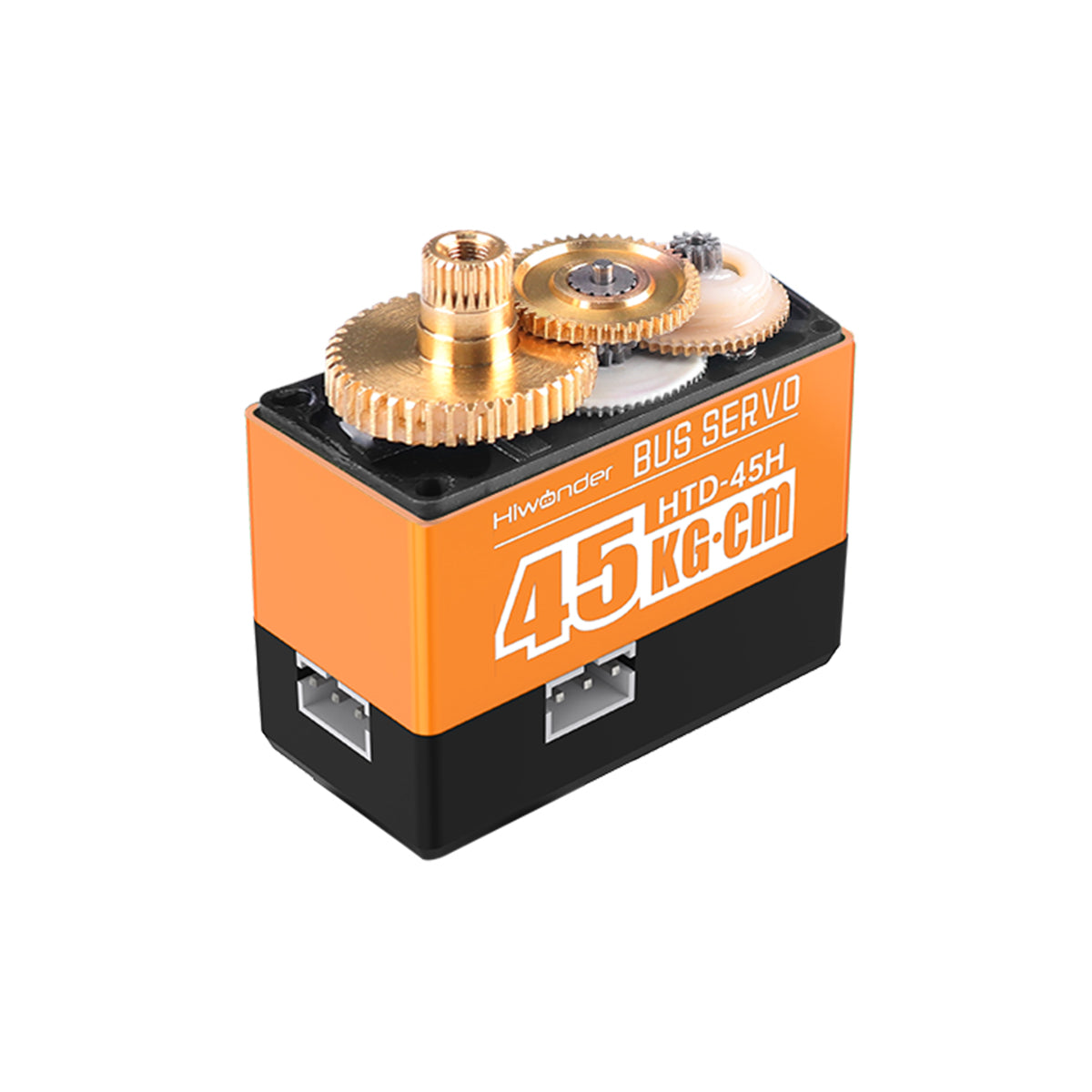

| Gear type: | Metal gear |
| Servo wire length: | 20cm |
| Connector: | PH2.0-3P |
| Applicable to: | Joints of bionic robots |
| Package List: | 1 x HTD-45H servo 1 x Plastic main servo horn 1 x Plastic assistant servo horn 1 x Servo wire (20cm) 1 x Screws 1 x Big U bracket (optional) 1 x Small U bracket (optional) 1 x Side bracket (optional) |
Customer Reviews
This servo is very powerful for its extremely low weight.
Match our project perfectly!
Good Torque, works well for my project. Good value for the price
Questions & Answers
Have a Question?
-
Hello, Thanks for the reply, can I use TTL-RS485 module to send and retrieve data through UART connection with a microcontroller i.e. (Arduino or Esp-32 )
Hi there, pls refer this link for its control method: https://drive.google.com/drive/folders/1kPvTBzUBKv7auwGpHf5mYt7avwqtHKNg?usp=sharing
-
Hello, so if i want to create a robot with 18 servos, how could i connect them to arduino and take feedback signals from all of them, I am aware that it is done through serial communication but do i need a converter chip in between, and would it be able to send signals to all servos and take feedback from them back to the arduino?
Hello,
An Arduino alone cannot retrieve information from the servo through direct connections. If you wants to send signals to the servo and receive feedback, it is recommended to purchase a bus servo controller, which primarily utilizes the 74HC126 chip for this functionality.
-
What is the specific connector type is used on the sides of the servo? I have purchased it but I would like to use the locking connector rather than dupont connectors.
Hi there, the connector is PH2.0-3P
-
Are there drawings of the main servo horn available? Also, what are the screw sizes? Thank you.
Hi there, please contact our email with your order number for servo horn: support@hiwonder.com They are M2 self-tapping screws.
-
Hi, Can I use this as a regular servo? use it with pwm control?
It is controlled by UART serial command
-
Why doesn't it work with "Serial Bus Servo Controller" ? The run button does nothing when pressed. My Windows is 11 . It does not recognize it as a com port
Please send us video about the operation to support@hiwonder.com
-
what is the gear ratio on the Hiwonder HTD-45H?
Servo ratation speed: 0.18 sec/60u00b0 11.1V
-
Hi, Can I use this as a regular DC motor ? If yes, what is the RPM ? Thanks,
Yes, you can. The RPM is 0.18sec/60° 11.1V
