MechDog Hiwonder Open Source AI Robot Dog with ESP32 Controller, High-Speed Coreless Servos Support Scratch, Arduino, and Python Programming
- 【Driven by Coreless Servos】MechDog is equipped with 8 high-speed coreless servos, providing high accuracy and robust force. Its leg linkage structure enables swift and precise walking.
- 【Inverse Kinematics for Flexible Movement】MechDog features built-in inverse kinematics that support real-time adjustments of walking direction and posture, resulting in more flexible and lifelike movements.
- 【Cross-Platform Control with Multiple Programming Options】MechDog supports control via PC software and a mobile app. It can be programmed using Python, Scratch, or Arduino, offering a variety of programming options.
- 【Extensive Expansion for Creativity】MechDog can be enhanced with various sensors and electronic modules. It is also compatible with LEGO components, allowing for a broad range of creative applications.
Pitch
Roll
Turning

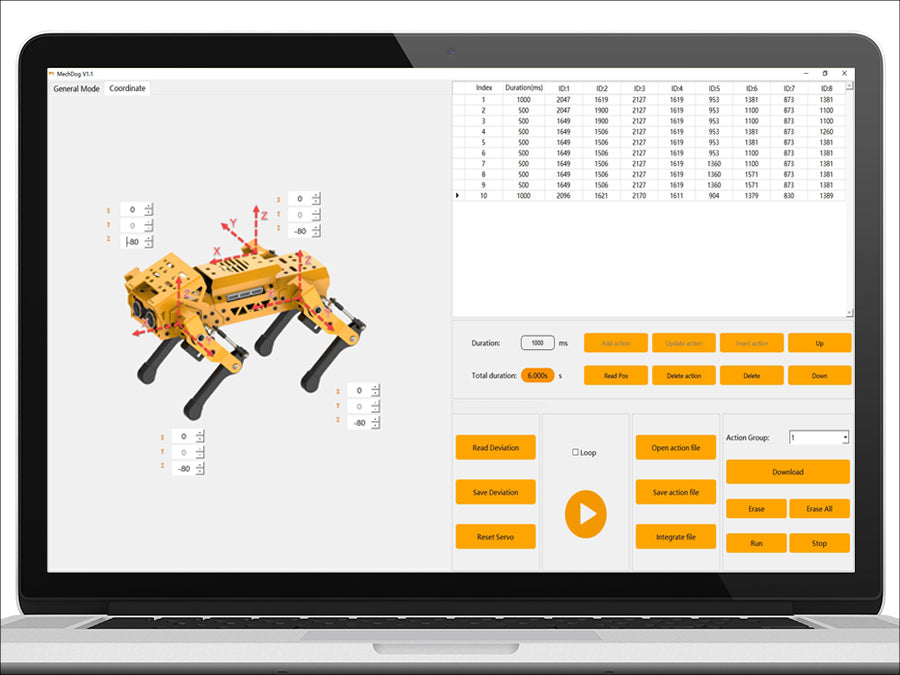

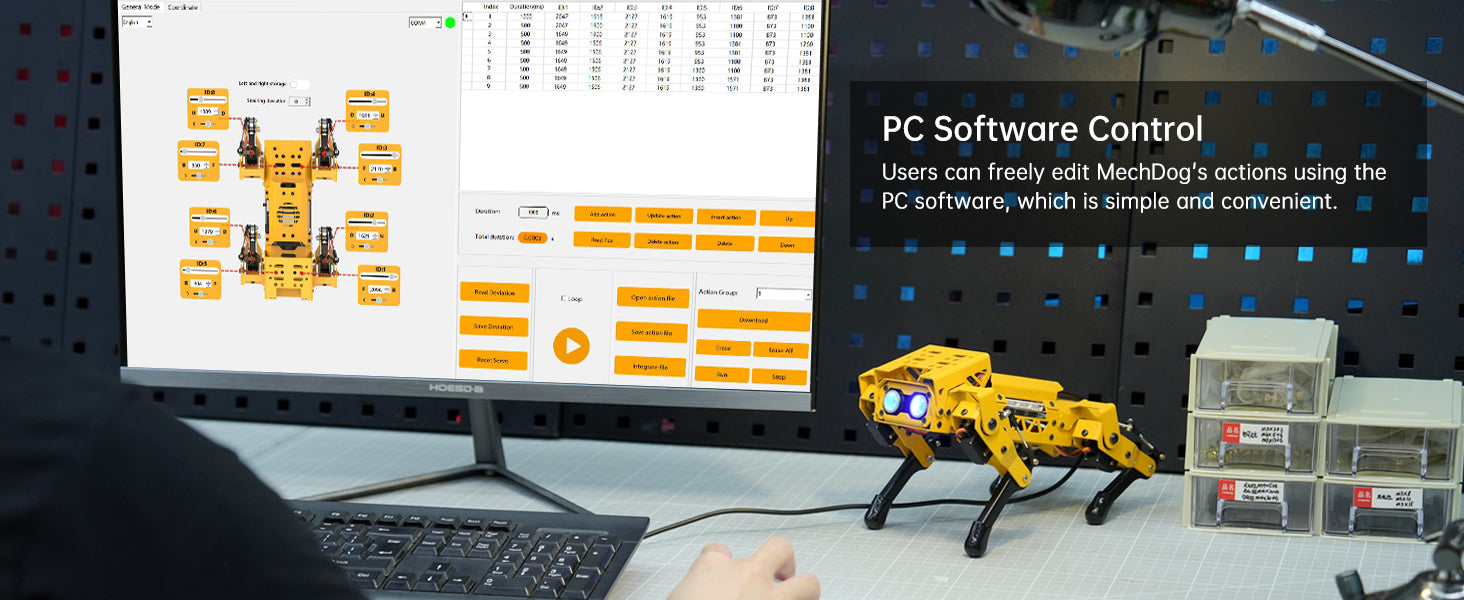

PC Software
Visual PC action editing software allows users to set the end coordinates for each leg, enabling more interesting designs.
APP Control
You can control MechDog freely through the app, which includes 16 preset actions for user-friendly experience.
Self-Balancing System
MechDog's built-in IMU sensor tracks its posture and body status in real time for precise balancing.
Unlimited Creativity
MechDog can be expanded with various electronic modules and LEGO blocks to open up diverse interesting robot games.
Arduino Programming
The hardware interfaces are Arduino-compatible, and the software integrates with the Arduino IDE. The annotated source code is open-sourced for easy learning.
Scratch Block Programming
Simplified programming for easy adoption. Use drag-and-drop blocks to create programs, making it accessible even for beginners without prior experience.
Python Programming
The hardware supports Python programming, enabling swift development with extensive libraries. This gives MechDog flexible control and expansion options for complex algorithms.
Touch Control
MechDog can respond differently to touch controls.
Light Sensing
MechDog can be awakened by sensing light brightness.
Dot Matrix Display
When measuring distance with ultrasound, data can be shown on the dot matrix display.
Singing and Dancing
The MP3 sensor can play music while MechDog dances.
Smart Wing
MechDog morphs into a majestic Pegasus unicorn, gracefully flapping its wings based on the distance to obstacles.
Intelligent Transport
Transform MechDog into a savvy transport robot, effortlessly loading, unloading, and moving objects with ease!
Robot Arm Gripping
Add a 2DOF robot arm to MechDog and unlock a world of new possibilities!
Angry Bull
When detecting an obstacle ahead, MechDog will turn its bull horns to push it out of the way.
Glowy Ultrasonic Sensor
Equipped with a glowy ultrasonic sensor, it measures distance and provides real-time feedback with colored light.
Extensive Expansion Interfaces
MechDog integrates expansion ports for ultrasonic sensors, light sensors, and other sensors.

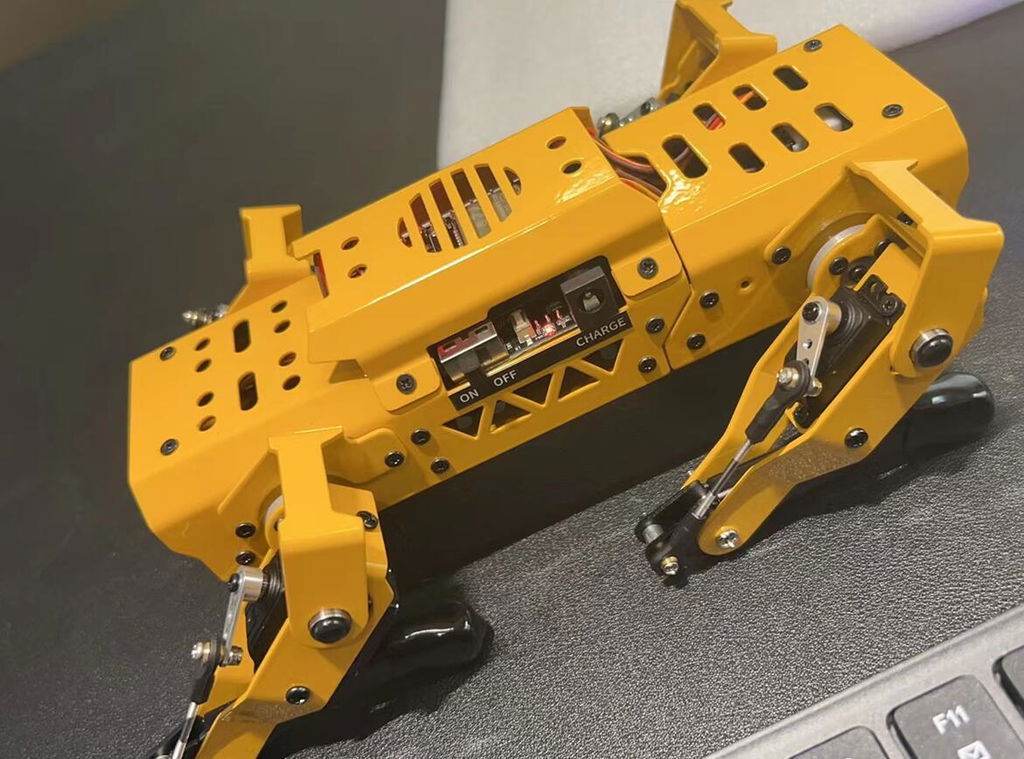

Aluminum Alloy Frame
The body is made from hard aluminum alloy, offering high durability and low weight with a refined, sturdy design.
Removable Lithium Battery
The body has a 7.4V 1500mAh 5C detachable lithium battery with built-in protection for long-lasting, safe use.
| Product size | 214*126*138mm (when it is powered on ) |
| Product weight | About 560g |
| Material | Hard aluminum alloy |
| Camera resolution | 320*240 |
| DOF | 8 DOF |
| Power supply | 7.4V 1500mAh 5C Lithium battery |
| Hardware | ESP32 robot controller |
| Software | APP + action editing PC software |
| Servo | HPS-0618SG coreless servos |
| Control method | PC control/ APP control |
| Standard kit package size | 35*17*14cm |
| Standard kit package weight | About 1.3kg |
| Item | Specification |
| Product size | 214*126*138mm (when it is powered on ) |
| Product weight | About 560g |
| Material | Hard aluminum alloy |
| Camera resolution | 320*240 |
| DOF | 8 DOF |
| Power supply | 7.4V 1500mAh 5C Lithium battery |
| Hardware | ESP32 robot controller |
| Software | APP + action editing PC software |
| Servo | HPS-0618SG coreless servos |
| Control method | PC control/ APP control |
| Standard kit package size | 35*17*14cm |
| Standard kit package weight | About 1.3kg |
Questions & Answers
Have a Question?
-
where is the manual?
Hi there, pls check this link: https://www.hiwonder.com.cn/store/learn/137.html
-
Hi, Is the PC software (control, programming) compatible with Apple Mac computers? Best regards, Dirk
Hi there, yes the mac software will be released on neex week. You can order now and it's ready when you receive it :D
-
Where can I buy these products in Hong Kong?
Hi there,
Yes sure. Please contact our email: support@hiwonder.com
