5-Megapixel USB Wide-Angle Camera, 160° FOV, Driver-Free, Compatible with ROS Robots, Raspberry Pi and Jetson Controllers
- 【High-Performance Image Sensor】Equipped with a high-performance image sensor, the camera delivers 5-megapixel (2592x1944P resolution) output, enabling precise image capture and processing.
- 【160° Field-of-View Lens】Featuring a 160° wide-angle lens, the camera supports manual focus adjustment to meet the requirements for wide-area perception in vision-based robots.
- 【Highly Integrated Carrier Board】 The industrial-grade circuit reduces interference, improves image clarity, stabilizes signal transmission, and ensures the camera operates effectively.

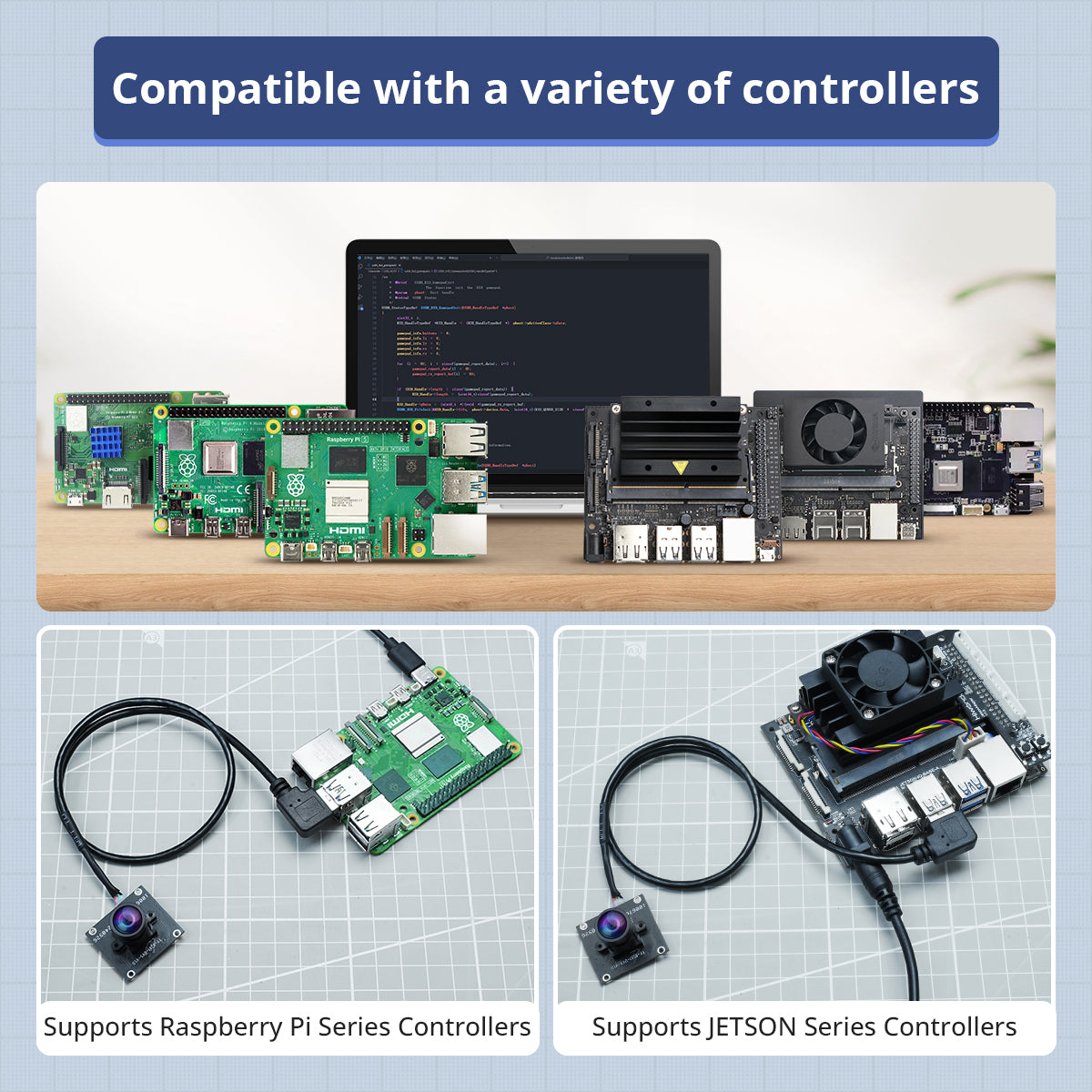

- 【No Driver Required】No drivers are needed—just plug and play. The camera offers high compatibility with various controllers, enhancing deployment efficiency and improving the overall user experience.

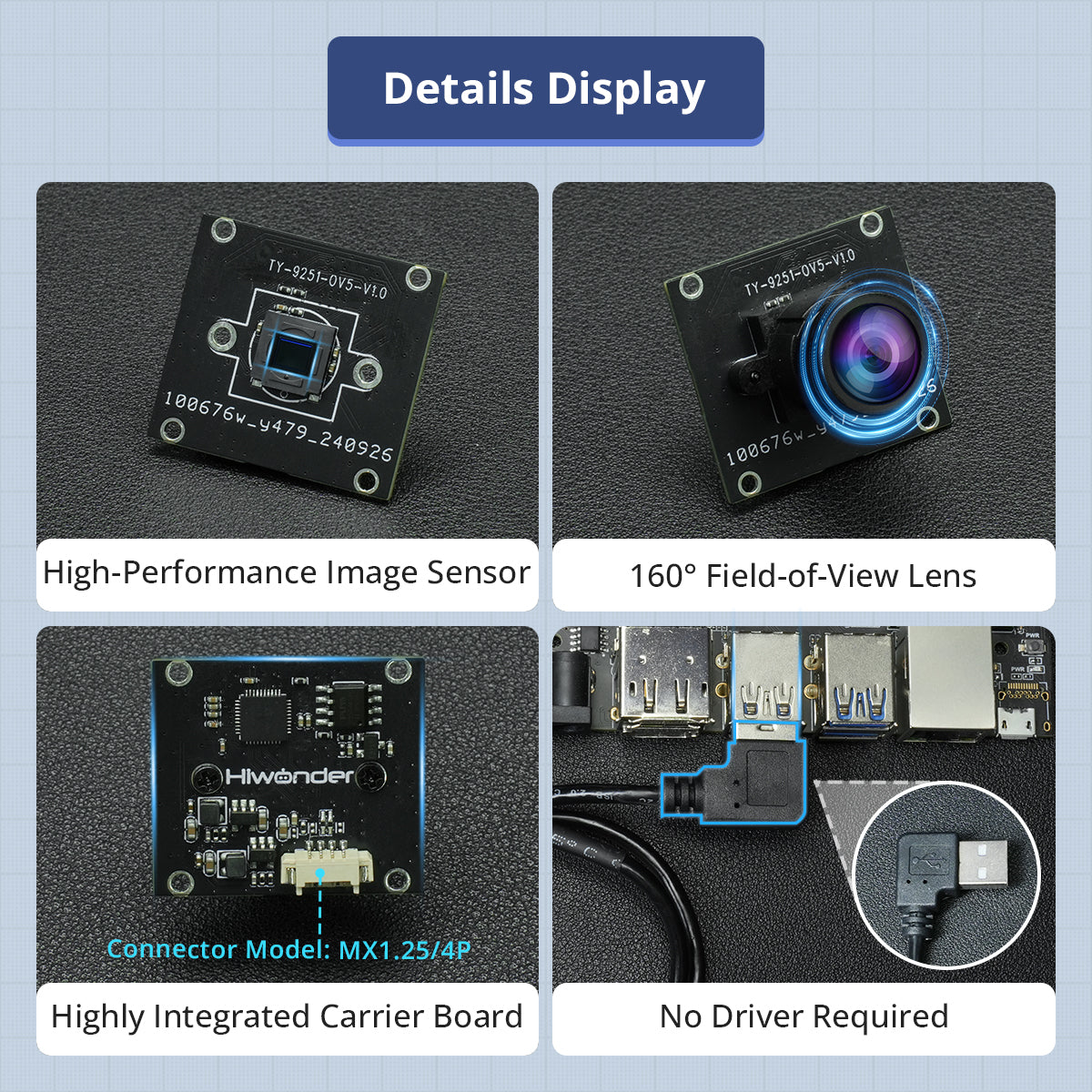

High-Performance Image Sensor
Equipped with a high-performance image sensor, the camera delivers 5-megapixel (2592x1944P resolution) output, enabling precise image capture and processing.
160° Field-of-View Lens
Featuring a 160° wide-angle lens, the camera supports manual focus adjustment to meet the requirements for wide-area perception in vision-based robots.
Highly Integrated Carrier Board
The industrial-grade circuit reduces interference, improves image clarity, stabilizes signal transmission, and ensures the camera operates effectively.
No Driver Required
No drivers are needed—just plug and play. The camera offers high compatibility with various controllers, enhancing deployment efficiency and improving the overall user experience.

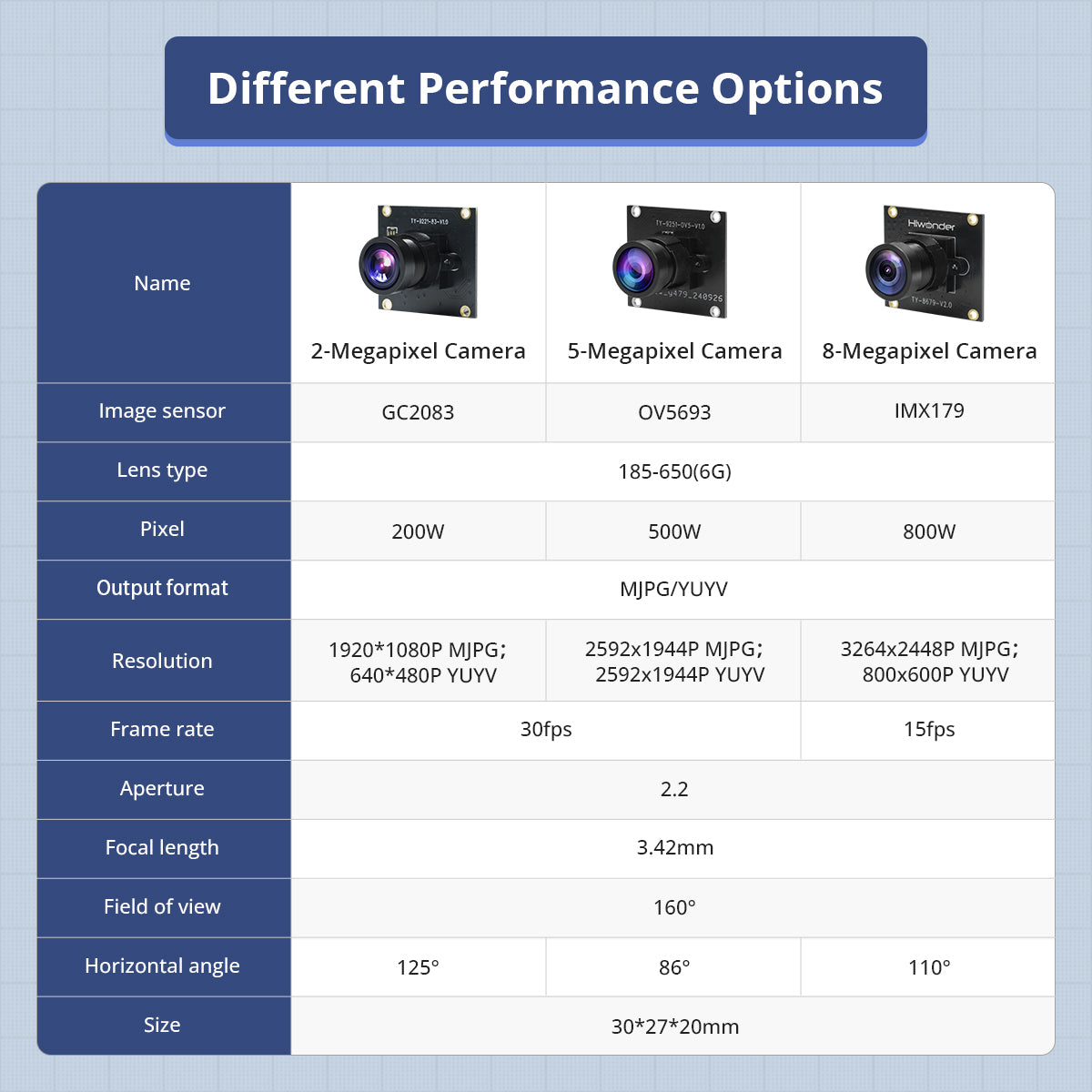

| Product Parameters | |||
| Image sensor | OV5693 | Lens type | 185-650 (6G) |
| Pixel | 5 megapixels | Resolution | 2592x1944P |
| Frame rate | 30fps | Aperture | f/2.2 |
| Focal length | 3.42mm | Field of view | 160° |
| Horizontal angle | 86° | Size | 30*27*20mm |
| Item | Specification |
| Image sensor | OV5693 |
| Lens type | 185-650 (6G) |
| Pixel | 5 megapixels |
| Resolution | 2592x1944P |
| Frame rate | 30fps |
| Aperture | f/2.2 |
| Focal length | 3.42mm |
| Field of view | 160° |
| Horizontal angle | 86° |

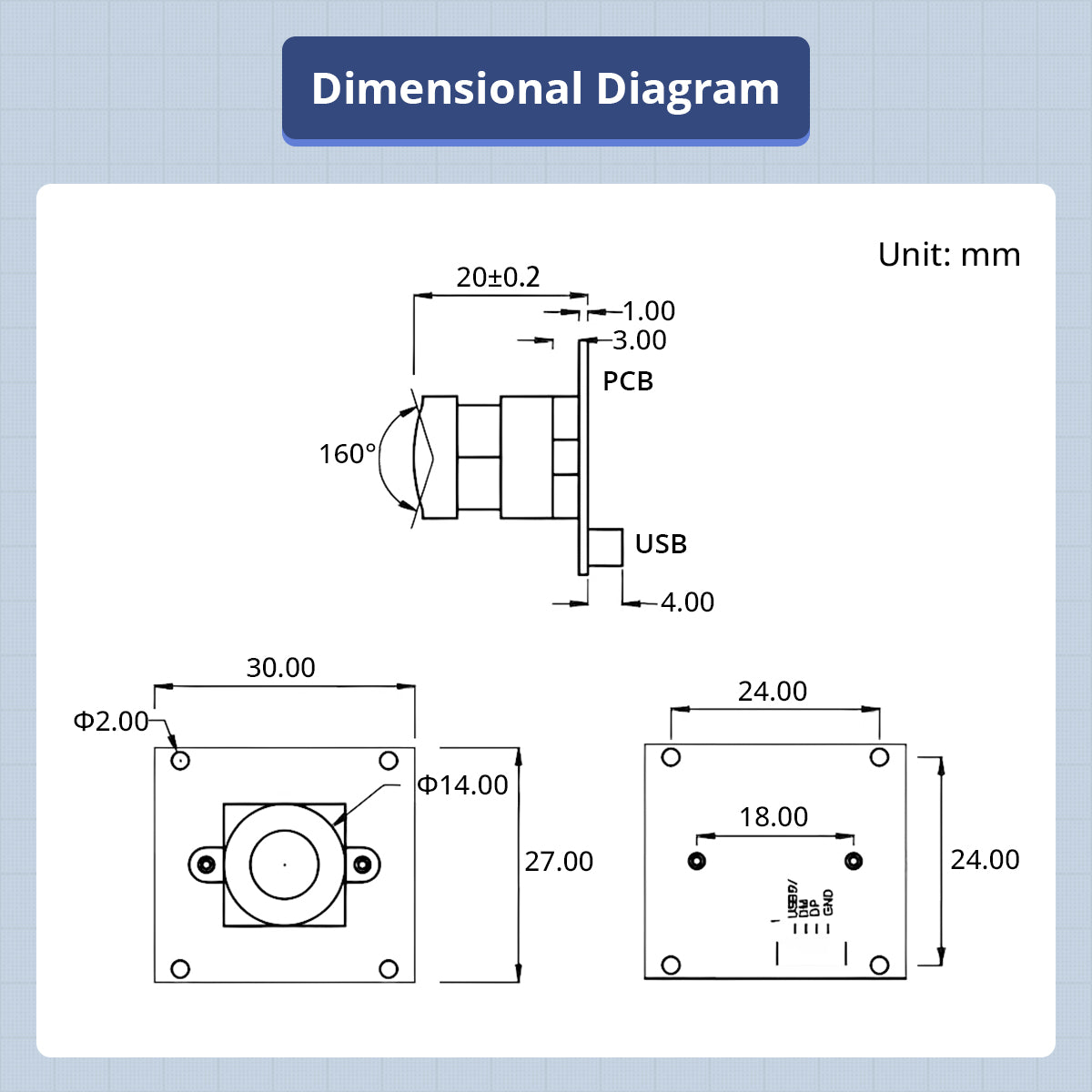

| Size | 30*27*20mm |
