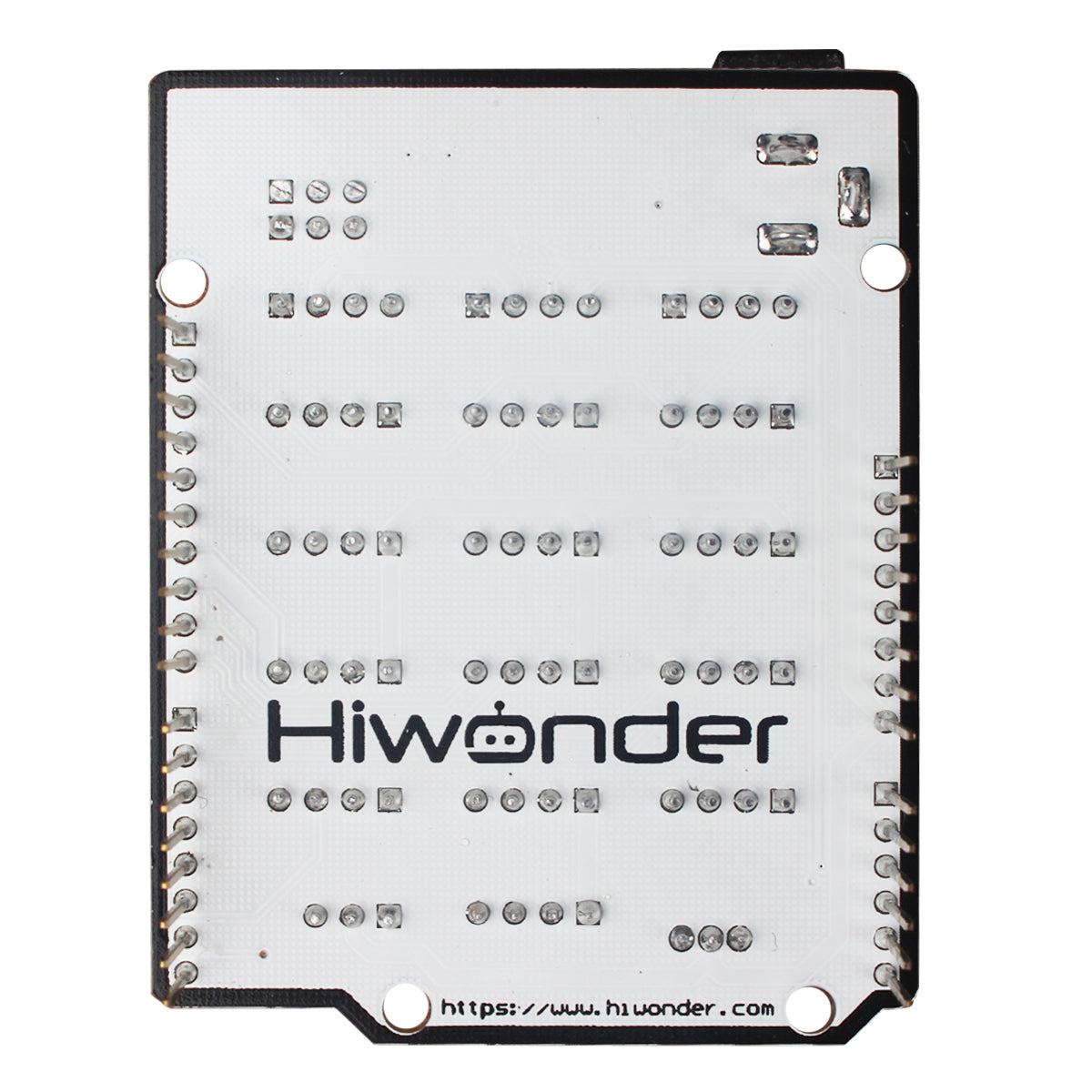

Arduino Expansion Board Multi-function Expansion Board Highly Compatible with Arduino
Product SKU: 21090012
- Highly Compatible with Arduino UNO
- Onboard 16-Channel 4Pin Port
- Onboard 2-Channel PWM Port
- Able to Connect 3 Wire Sensor
Available:
Only 961 items in stock
In stock
In stock
Out of stock
Back in stock
$9.99
Save
% $-9.99
Product Introduction

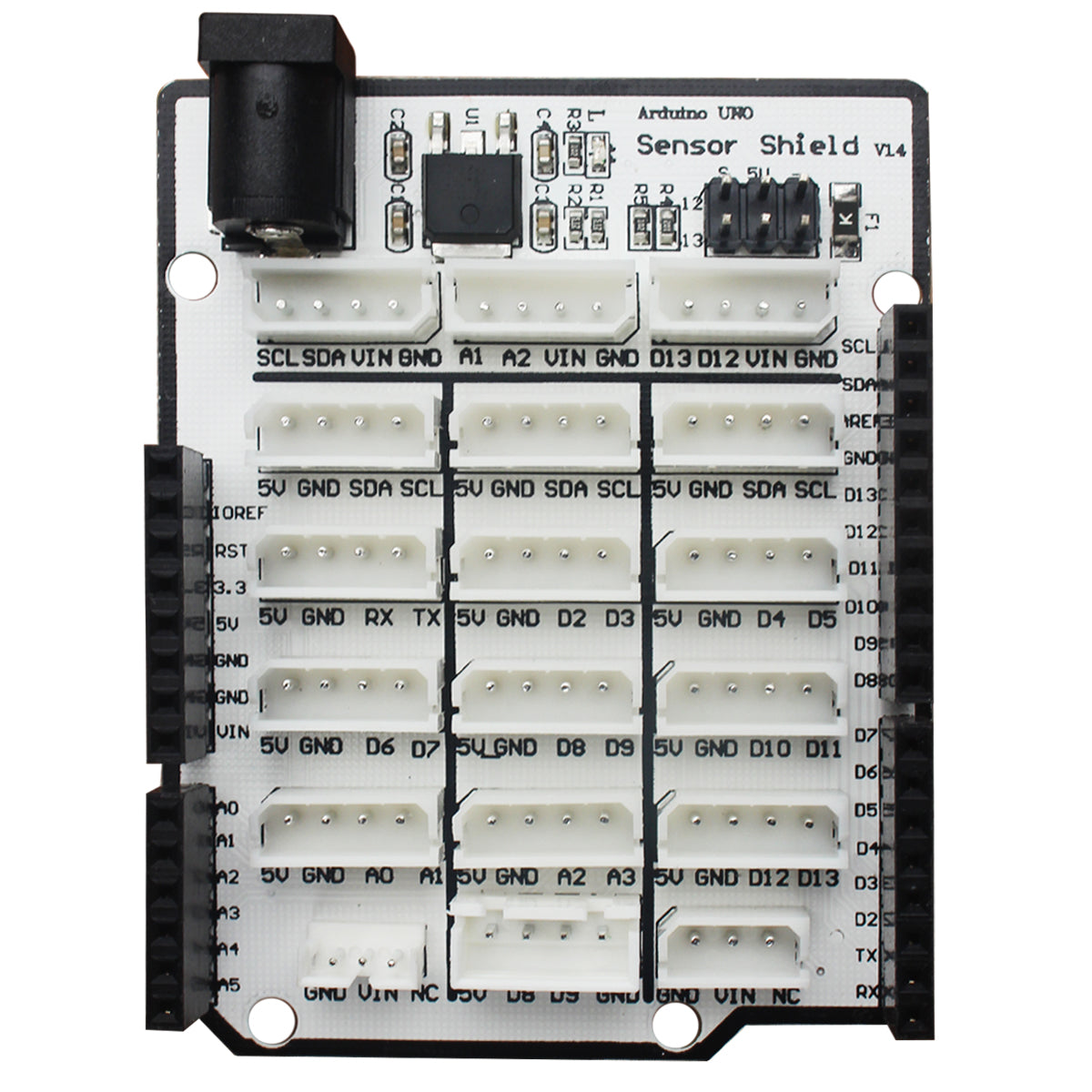

The multi-function expansion board is highly compatible with Arduino UNO. It has 16-channel 4Pin interfaces and 2-channel PWM interfaces on the board. It is convenient and beautiful in wiring. It also reserves all on-board I/O interfaces and has a wide range of applications.
Dimensional Diagram
| Size | 53.34*70.49mm |
| Power supply voltage | DC 7-12V |
| Servo interface | 2 PWM Port |
| Equipment provided | Arduino UNO |
| Expansion interface | 4Pin expansion I/O port*8 4Pin expansion serial port*1 4Pin expansion I2C port*4 analog ADC Port*3 3Pin expansion power supply port*2 |
Product Parameters

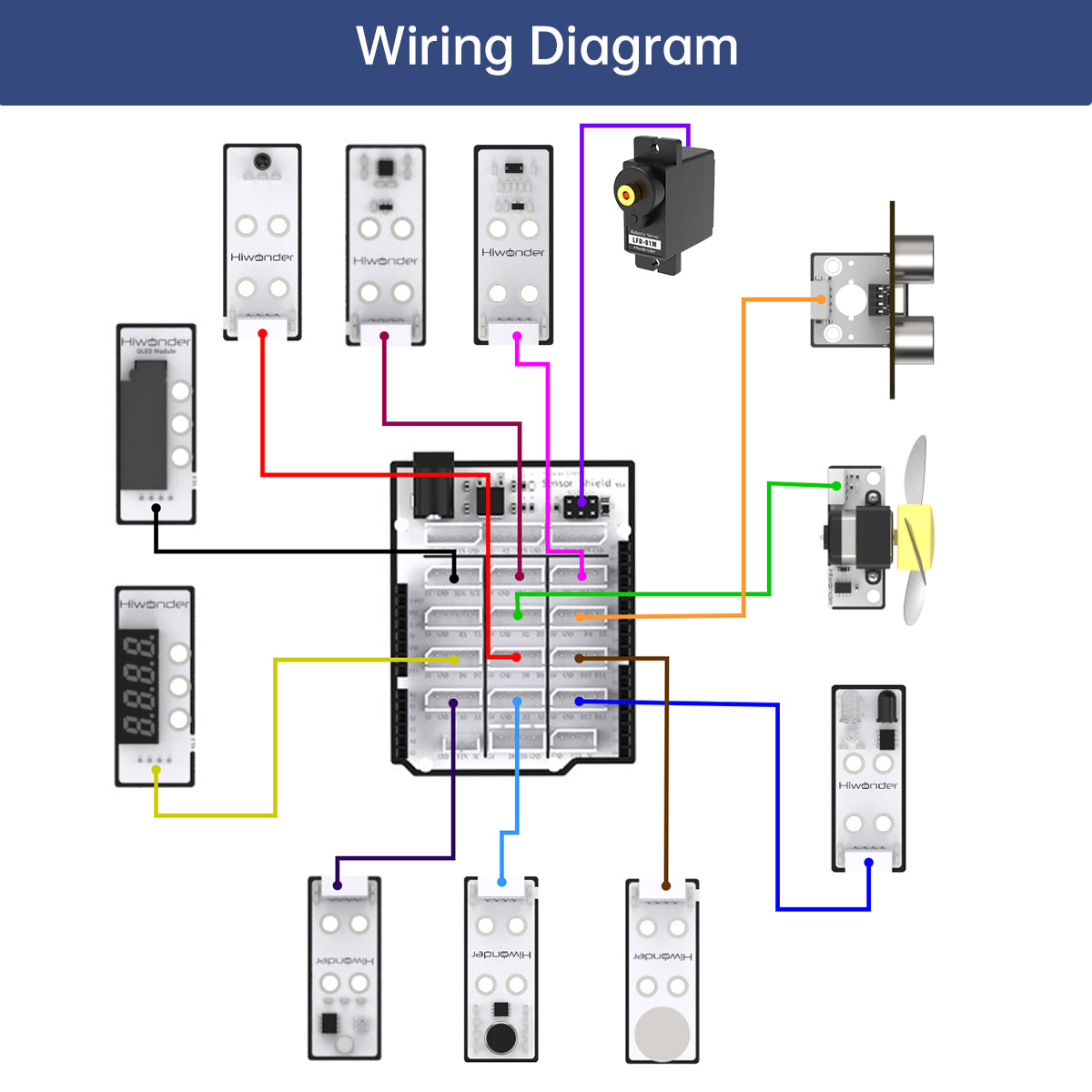

Wiring Diagram

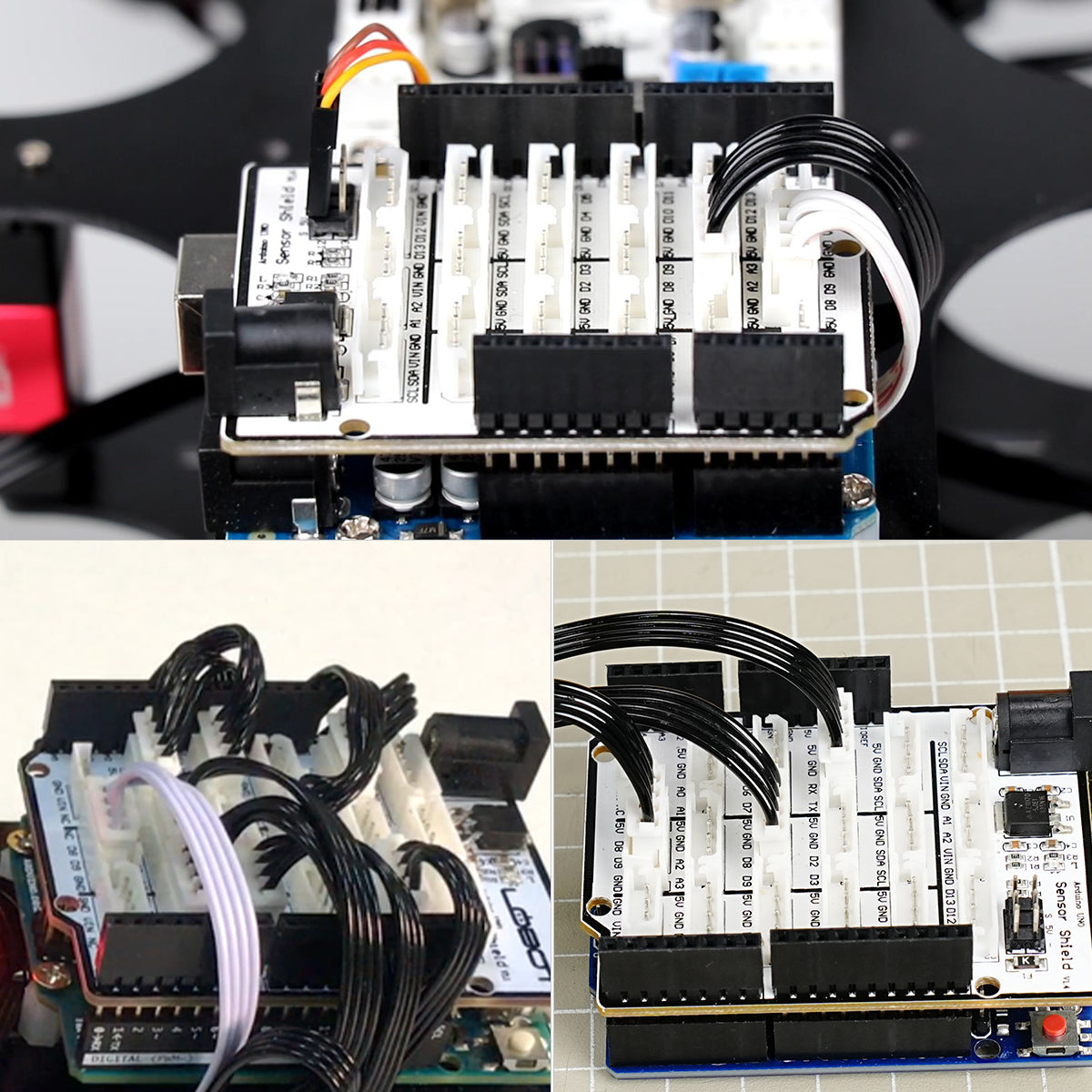

Application Scenario
| Item | Specification |
| Product size | 53.34*70.49mm |
| Power supply voltage | DC 7-12V |
| Servo interface | 2 PWM Port |
| Equipment provided | Arduino UNO |
| Expansion interface | 4Pin expansion I/O port*8 4Pin expansion serial port*1 4Pin expansion I2C port*4 analog ADC Port*3 3Pin expansion power supply port*2 |
Questions & Answers
Have a Question?
-
I have a Hiwonder Hexapod Arduino using the Expansion Board for the sensors. How big a current is it possible to load? I want to connect the ESP32 CAM module to it (this module requires a power supply of approx. 260 mA). thank you for answer
The loading current is not fixed, and the supply voltage is within DC 7-12V
-
Is the Arduino Expansion Board compatible Xarm ESP32 Controller. Or how can I expand the In- Outputs of the ESP32 board?
No, it is not compatible. xArm ESP32 is powered by ESP32
