Hiwonder HPS-2518 25KG High Torque Digital Servo Full Metal Gear Supports Robotic Arm/RC Car/Single Shaft
- 【25kg-180°High Torque Servo Motor】This rc servo boasts a maximum torque of 25KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an anodized aluminum case that facilitates excellent heat dissipation and effectively reduces power consumption.
- 【Superior Quality & High Performance】This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
- 【Perfect Servo for Model DIY & IP67 Waterproof】It fits 1/6 1/8 1/10 1/12 RC cars, robots, vehicle/boat/airplane models, and any DIY. Crafted with high precision and thorough sealing, this rc servo provides IP67 water resistance, which allows it to operate even in the presence of water splashes.
| Product weight | 0.15Ib / 66g |
| Product size | 1.57*0.8*1.59inch / 40*20*40.5mm |
| Rotation speed | 0.20sec/60°(7.4V) |
| Stall torque | 25 kg·cm (277.6 oz·in) @7.4V |
| Working Voltage | 6-8.4V |
| Stall current | 2.4~3A |
| No-load Current | 100mA |
| Servo Horn | 25T |
| Servo Wire | 30cm(11.8inch) in length |
| Control Method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
| Rotation range | 0~180° |
| Servo accuracy | 0.3° |
25kg Large Torque
This servo boasts an impressive maximum torque of 25KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an aluminum alloy casing that facilitates excellent heat dissipation, thereby effectively reducing power consumption.
All Metal Gear
This product showcases exceptional performance, minimal noise output, and the inclusion of metal gear and dual-ball bearings. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
Waterproof Protection
Crafted with high precision and thorough sealing, this servo provides an exceptional level of water resistance. This allows it to operate even in the presence of water splashes.

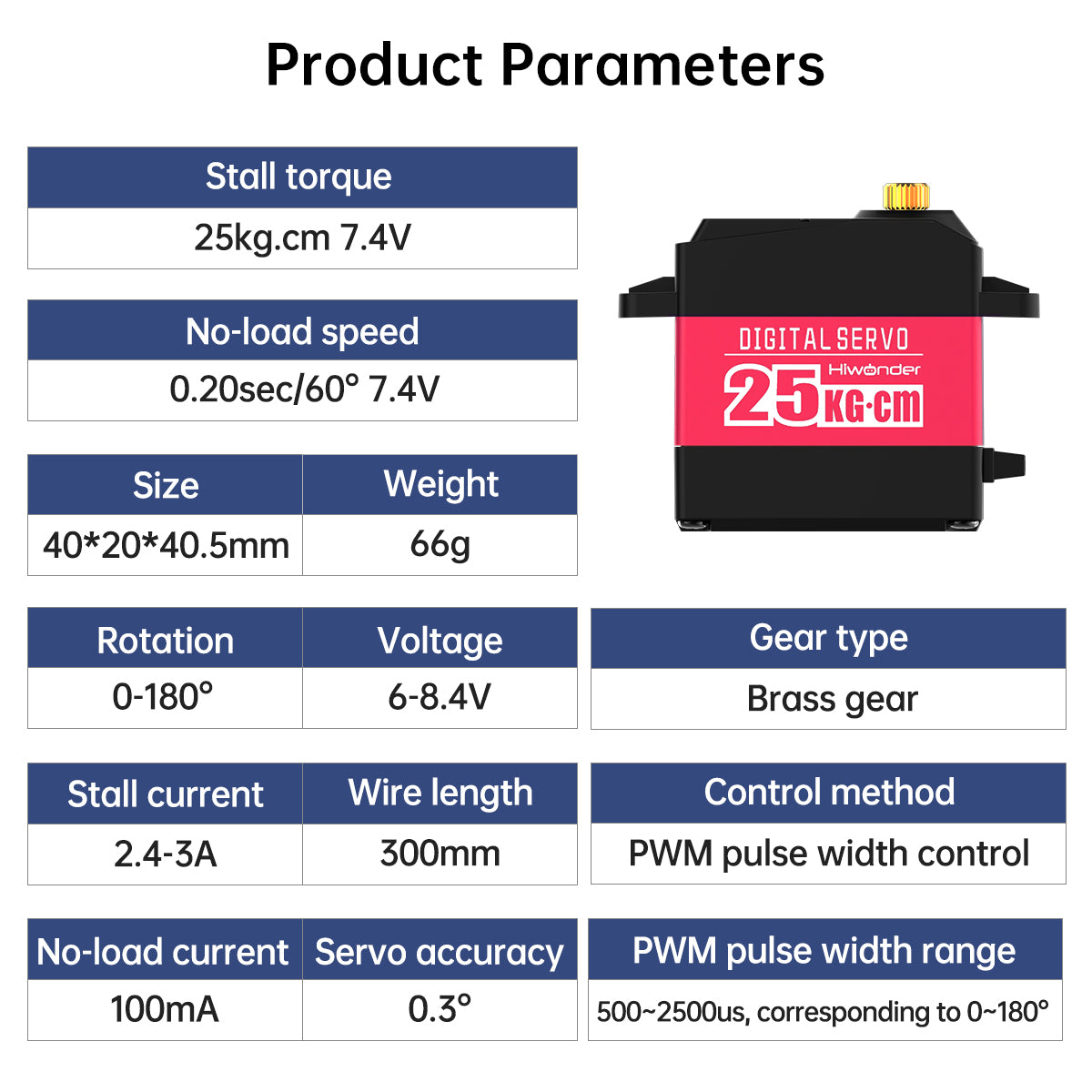

| Item | Specification |
| Product weight | 0.15Ib/ 66g |
| Product size | 1.57*0.8*1.59inch/ 40*20*40.5mm |
| Rotation speed | 0.20sec/ 60°(7.4V) |
| Stall torque | 25 kg·cm (277.6 oz·in) @7.4V |
| Working Voltage | 6-8.4V |
| Stall current | 2.4~3A |
| No-load Current | 100mA |
| Servo Horn | 25T |
| Servo Wire | 30cm(11.8inch) in length |
| Control Method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
| Rotation range | 0~180° |
| Servo accuracy | 0.3° |
