Hiwonder HPS-4527SG High-Speed Coreless Servo 45KG High Torque, Stainless Steel Gear, Waterproof, Suitable for Robot DIY and RC Cars, with 270° Controllable Angle
- 【High-Speed Coreless Servo】Equipped with a high-speed coreless motor and stainless steel gear, this servo delivers 45KG.cm of torque and a 270° rotation range. It offers quick response and is ideal for robot DIY.
- 【Outstanding Performance and Durability】The aluminum alloy shell improves heat dissipation and extends the servo's lifespan. With IP66 waterproof protection, it operates reliably in splash-prone conditions.
- 【Versatile Compatibility and Applications】This servo is compatible with 1/6, 1/8, 1/10, and 1/12 scale RC cars, robots, as well as various car, boat, and airplane models, and DIY projects, making it a flexible choice for different needs.

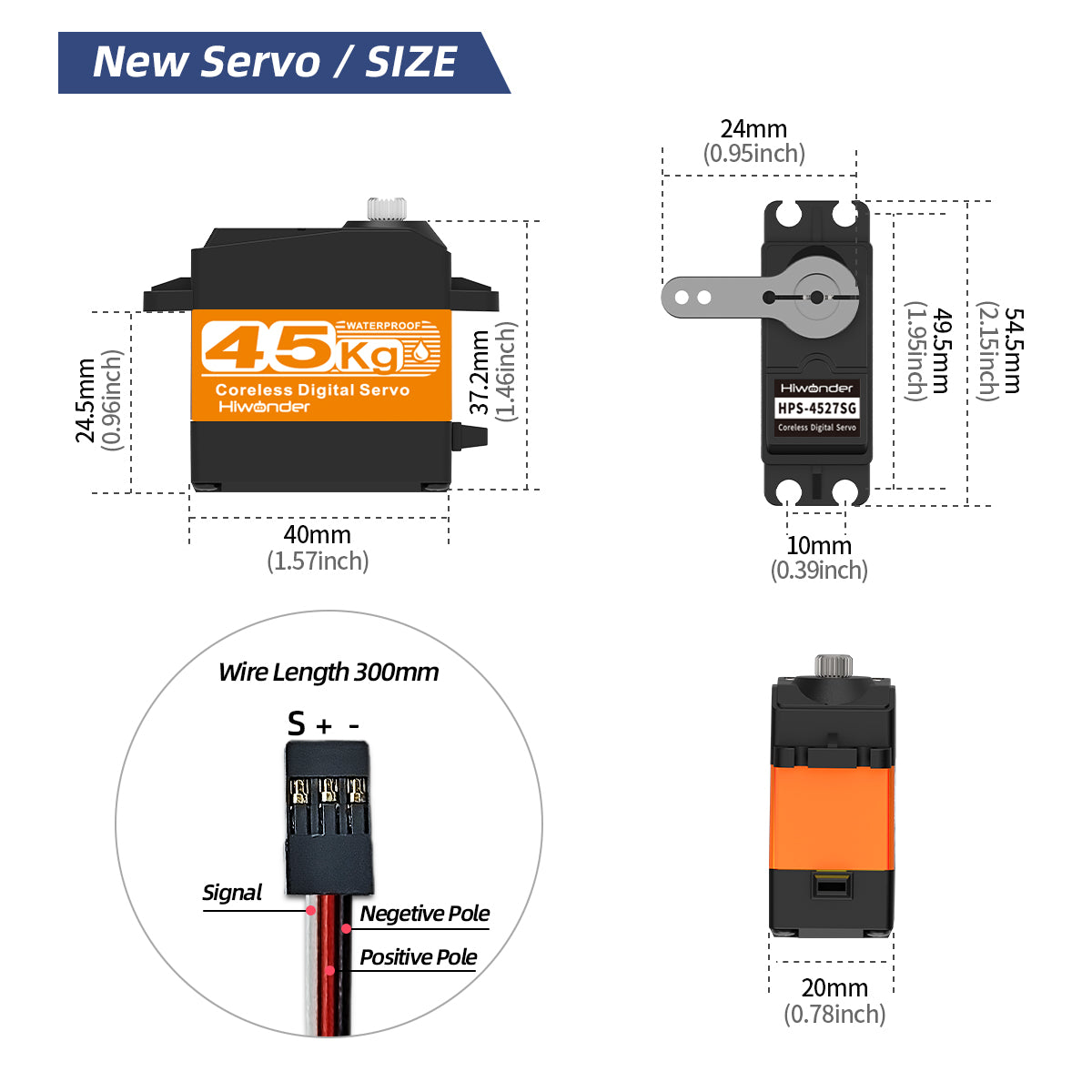

| Size | 40*20*40.5mm |
| Operating voltage | 5-8.4V |
| No-load speed | 0.13sec/60° 7.4V |
| Motor | Coreless motor |
| Control accuracy | 2 μsec |
| Gear ratio | 342 |
| Stall Torque | 45KG·cm 7.4V |
| Weight | 60g |
| Standby current | 5mA |
| Stalled current | 3.5-5.8A |
| Gear type | Stainless steel gear |
| Rotation range | 0~270° |

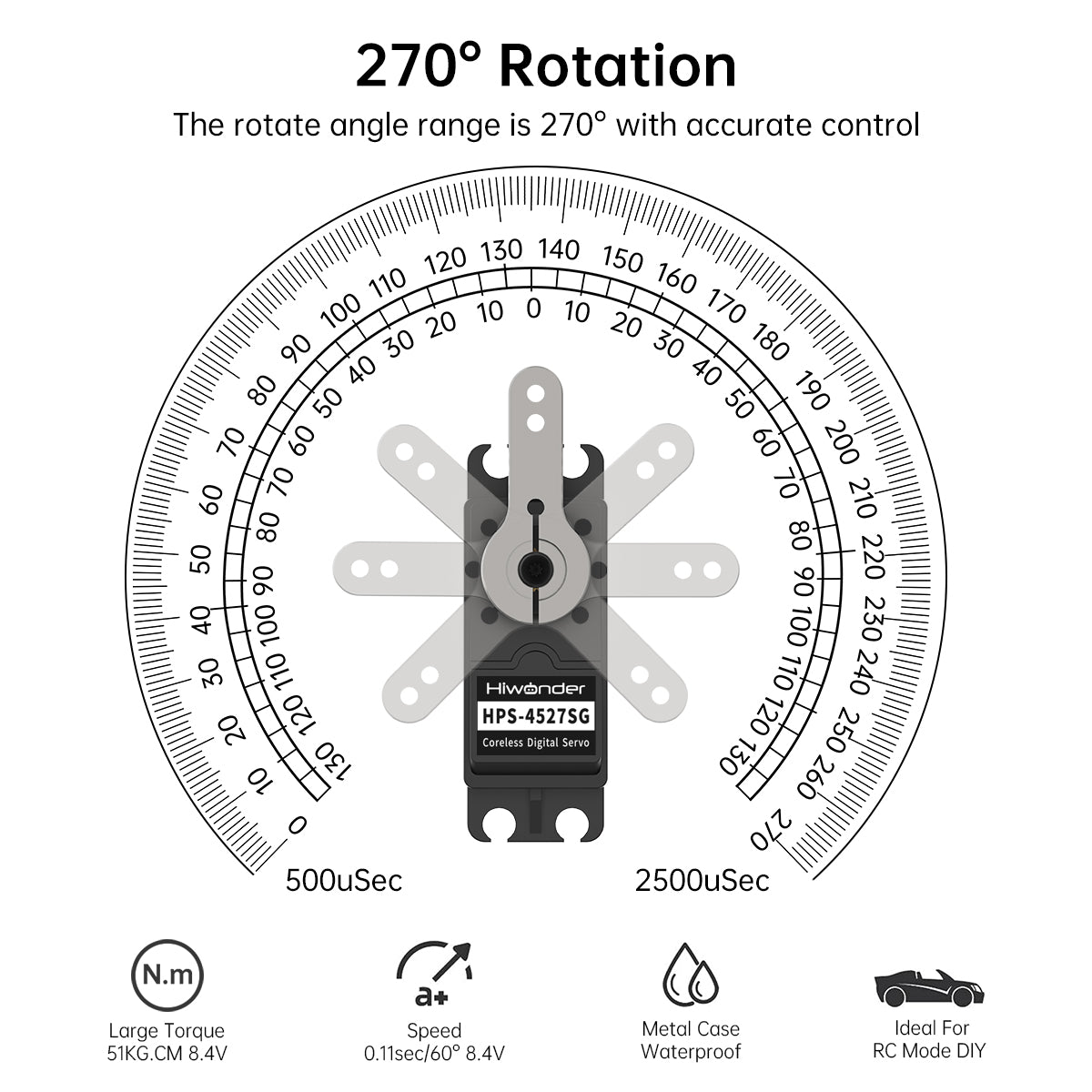

| PWM pulse width range | 500~2500 µsec, corresponding to 0~270° |
| Wire length | 300mm |
45kg Large Torque
This servo provides 45KG·CM of high torque at 7.4V, making it ideal for demanding robotic applications.

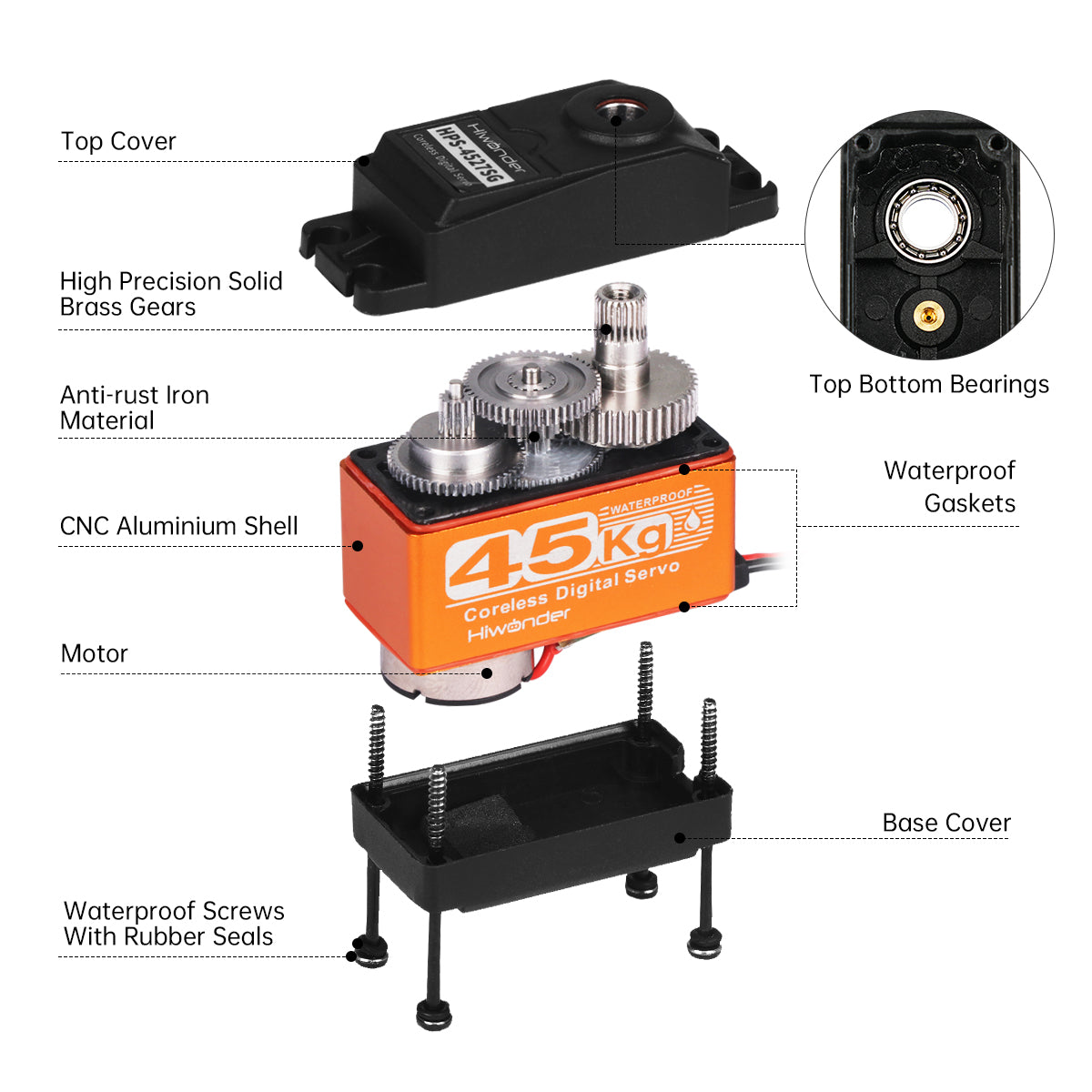

High-Speed Coreless Servo
Uses a coreless motor as the power source. This design eliminates the iron core, resulting in low rotor inductance, improved responsiveness, high efficiency, and a compact size that delivers high torque.
Aluminum Alloy Shell
Its aluminum alloy shell enhances heat dissipation, reduces power consumption, and has a sleek design.
High-Performance Potentiometer
This potentiometer offers exceptional accuracy and linearity, ensuring precise motion control. It is designed to meet the demands of robotics applications and help you achieve optimal performance in your designs.
Stainless Steel Gear
The stainless steel gears ensure high durability and greatly extend the servo's lifespan.

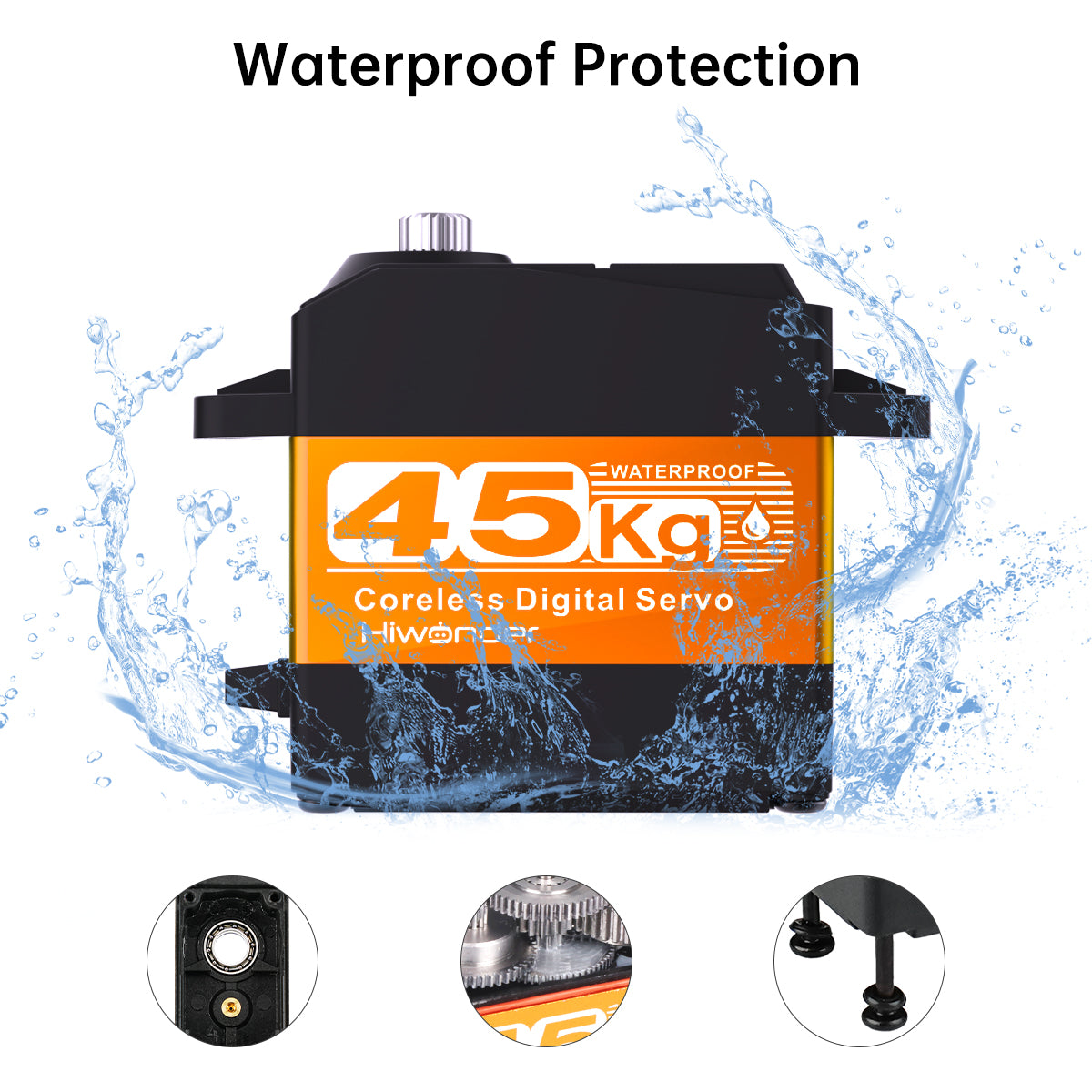

Waterproof Protection
Crafted with high precision and thorough sealing, this servo provides an exceptional level of water resistance. This allows it to operate even in the presence of water splashes.

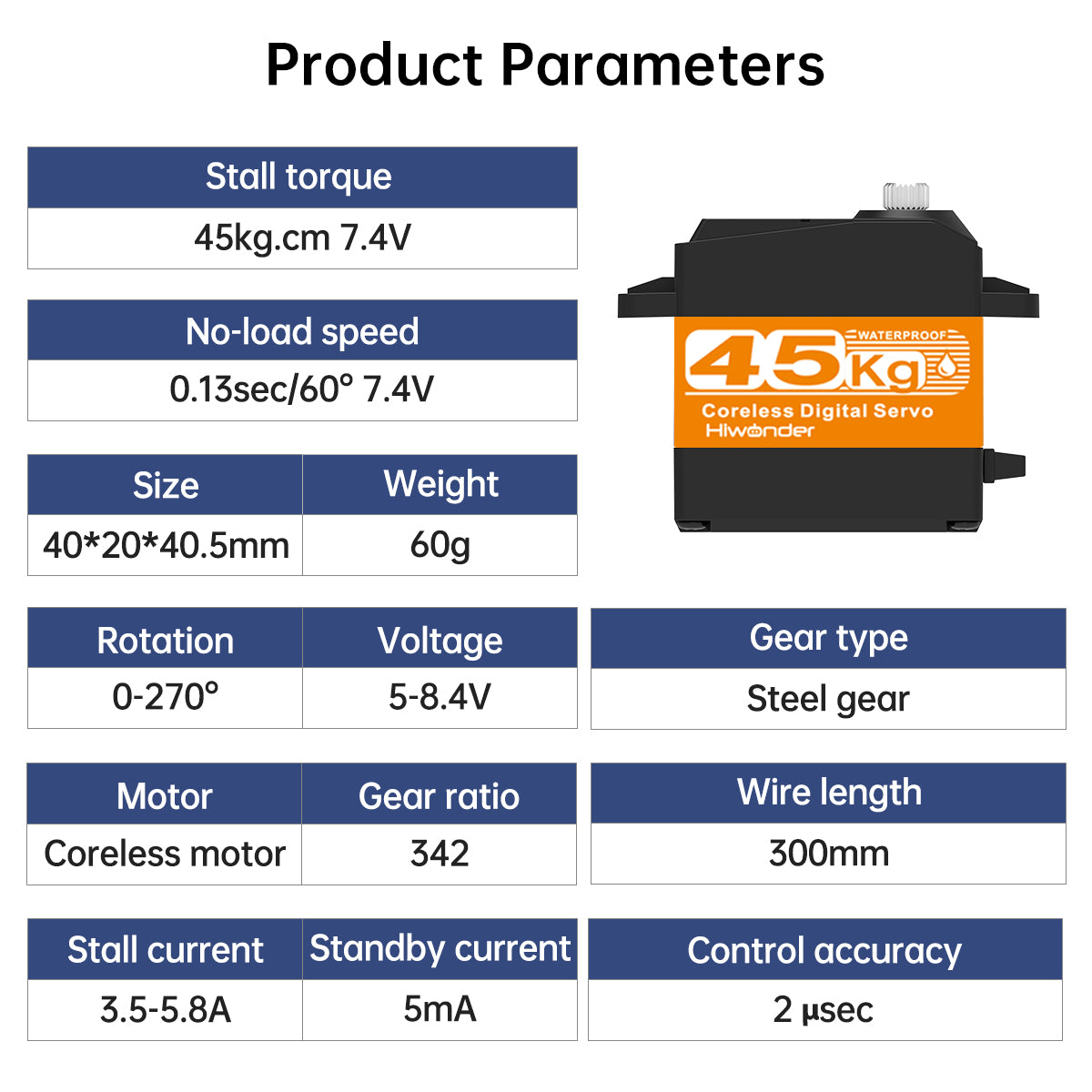

| Item | Specification |
| Size | 40*20*40.5mm |
| Weight | 60g |
| Operating voltage | 5-8.4V |
| No-load speed | 0.13sec/60° 7.4V |
| Stall Torque | 45KG·cm 7.4V |
| Motor | Coreless motor |
| Control accuracy | 2 μsec |
| Gear ratio | 342 |
| Waterproof performance | IP66 |
| Standby current | 5mA |
| Stalled current | 3.5-5.8A |
| Gear type | Stainless steel gear |
| Rotation range | 0~270° |
| PWM pulse width range | 500~2500 µsec, corresponding to 0~270° |
| Wire length | 300mm |
