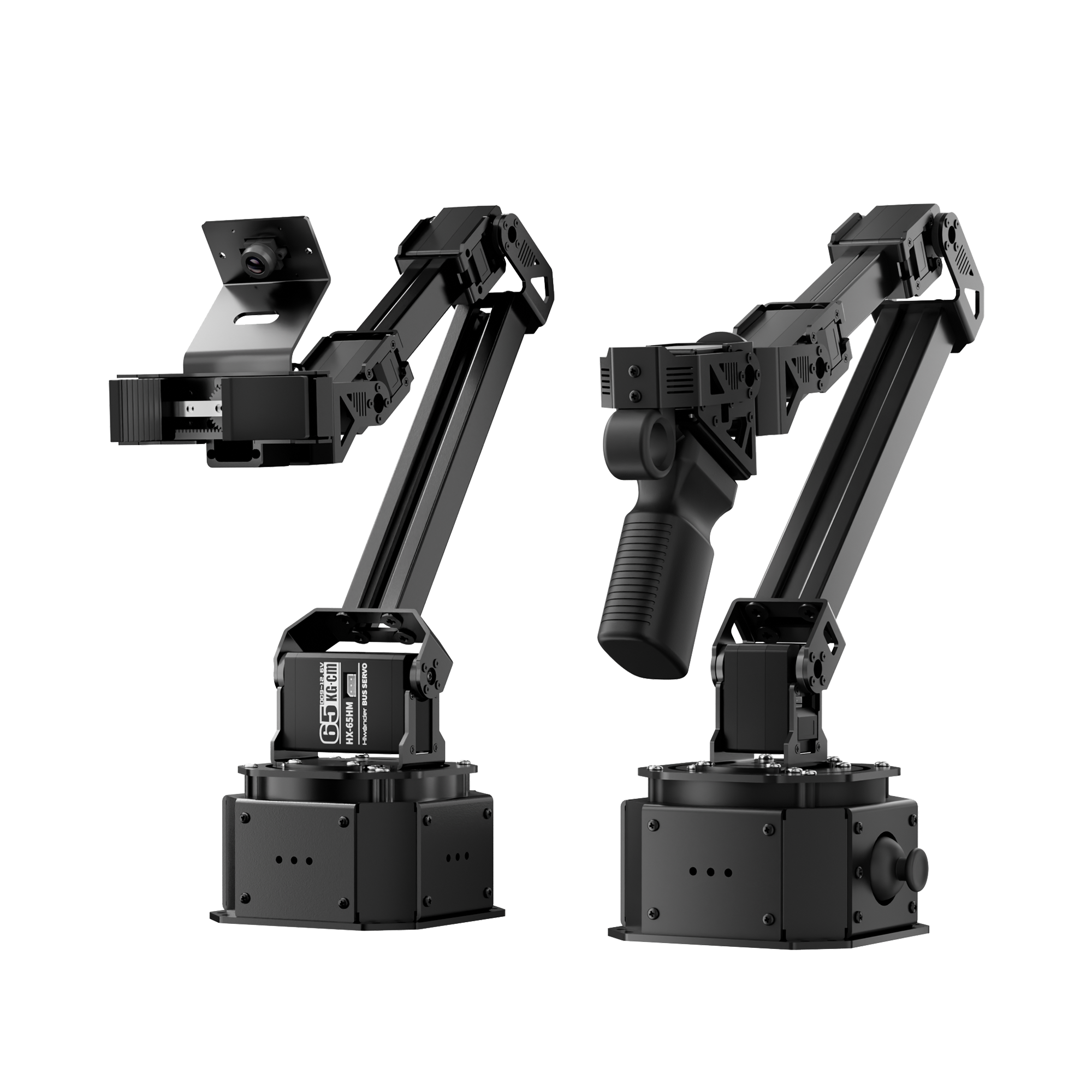

Hiwonder NexArm LeRobot VLA Open-Source 6-Axis Robotic Arm for Embodied AI, Imitation Learning, and ESP32 Development
-
【Embodied Al Robotic Arm】NexArm robot arm features an industrial-grade metal body with high-precision magnetic encoder servos and inverse kinematics. It delivers a 500mm reach,500g payload, and +2mm repeatability. Curve smoothing algorithms eliminate jitter for precise grasps and smooth trajectories.
-
【Compatibility with the LeRobot Ecosystem & End-to-End Algorithms】NexArm robotic arm is fully integrated with the LeRobot framework to access community models, datasets, and simulations. Developers can easily train and deploy end-to-end imitation and reinforcement learning algorithms like ACT.
-
【Leader-Follower Teleoperation & VLA Development】Supports synchronous teleoperation via leader and follower arms. By capturing HD video alongside trajectory data, NexArm robotic arm quickly builds "vision-action" datasets, making it an ideal platform for VLA (Vision-Language-Action) model training.
-
【Dual-Camera Vision System】Equipped with both a gripper-mounted camera and an external camera, the robot arm system supports both precise manipulation and environmental awareness for accurate imitation learning.
-
【Open-Source and Multi-Mode Control】Open-source code and schematics, plus PC software, app control, secondary development examples, and structured tutorials, significantly lower the barrier to embodied AI development.
NexArm covers the complete development pipeline, from teleoperation teaching and data collection to imitation learning and edge deployment. Fully compatible with the LeRobot ecosystem, it enables rapid deployment of cutting-edge robot policies like ACT, Diffusion Policy, and Pi0.
| Product Parameters | ||
| Brand | Hiwonder | |
| Product name | NexArm open-source embodied AI robotic arm | |
| Material | Metal frame | |
| Dimensions | Leader arm: 111 × 216 × 619 mm | Follower arm: 111 × 111 × 614 mm |
| Weight | Leader arm: 1.2 kg | Follower arm: 1.3 kg |
| Servos | Leader arm: HX-10HM × 5 + HX-12H × 1 | Follower arm: HX-12H × 2 + HX-30HM × 3 + HX-65HM × 1 |
| Controller | NexArm follower arm controller, NexArm leader arm controller | |
| Power supply | 12V 5A (DC 5.5 × 2.5) | |
| Operating system | Windows / Linux / macOS | |
| Control method | USB serial / Bluetooth / Wi-Fi | |
| Programming tool | Arduino IDE | |
| Packaging weight and volume | Leader Arm: 3.2kg, 345 × 158 × 220 mm Follower Arm: 2.9kg, 345 × 158 × 220 mm Standard Kit: 6.7kg, 487 × 290 × 195 mm Advanced Kit: 7.9kg, 487 × 290 × 195 mm |
|
| Product Parameters | ||
| Brand | Hiwonder | |
| Product name | NexArm open-source embodied AI robotic arm | |
| Material | Metal frame | |
| Dimensions | Leader arm: 111 × 216 × 619 mm | Follower arm: 111 × 111 × 614 mm |
| Weight | Leader arm: 1.2 kg | Follower arm: 1.3 kg |
| Servos | Leader arm: HX-10HM × 5 + HX-12H × 1 | Follower arm: HX-12H × 2 + HX-30HM × 3 + HX-65HM × 1 |
| Controller | NexArm follower arm controller, NexArm leader arm controller | |
| Power supply | 12V 5A (DC 5.5 × 2.5) | |
| Operating system | Windows / Linux / macOS | |
| Control method | USB serial / Bluetooth / Wi-Fi | |
| Programming tool | Arduino IDE | |
| Packaging weight and volume | Leader Arm: 3.2kg, 345 × 158 × 220 mm Follower Arm: 2.9kg, 345 × 158 × 220 mm Standard Kit: 6.7kg, 487 × 290 × 195 mm Advanced Kit: 7.9kg, 487 × 290 × 195 mm |
|
| Item | Specification | |
| Brand | Hiwonder | |
| Product name | NexArm open-source embodied AI robotic arm | |
| Material | Metal frame | |
| Dimensions | Leader arm: 111 × 216 × 619 mm | Follower arm: 111 × 111 × 614 mm |
| Weight | Leader arm: 1.2 kg | Follower arm: 1.3 kg |
| Servos | Leader arm: HX-10HM × 5 + HX-12H × 1 | Follower arm: HX-12H × 2 + HX-30HM × 3 + HX-65HM × 1 |
| Controller | NexArm follower arm controller, NexArm leader arm controller | |
| Power supply | 12V 5A (DC 5.5 × 2.5) | |
| Operating system | Windows / Linux / macOS | |
| Control method | USB serial / Bluetooth / Wi-Fi | |
| Programming tool | Arduino IDE | |
| Packaging weight and volume | Leader Arm: 3.2kg, 345 × 158 × 220 mm Follower Arm: 2.9kg, 345 × 158 × 220 mm Standard Kit: 6.7kg, 487 × 290 × 195 mm Advanced Kit: 7.9kg, 487 × 290 × 195 mm |
|
