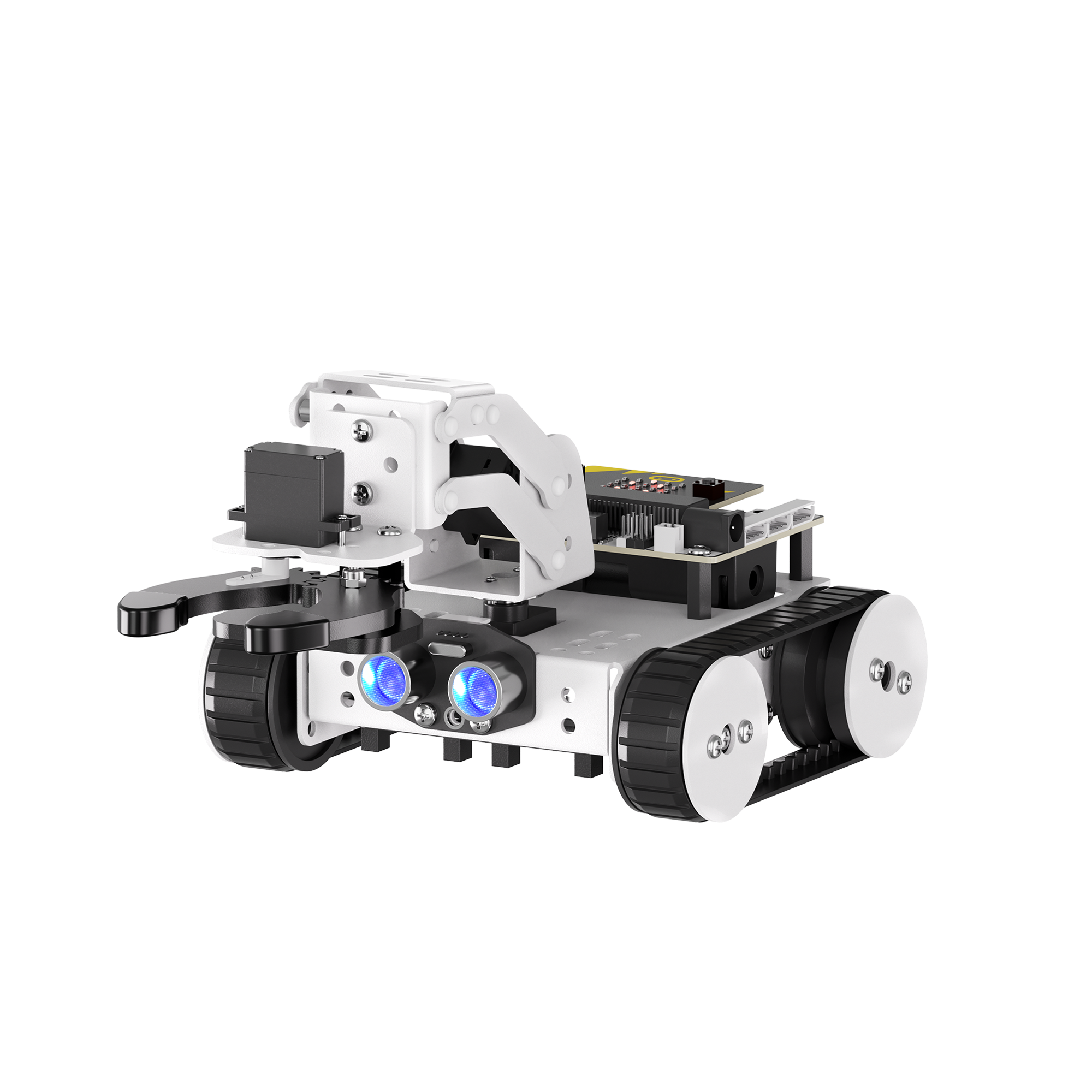

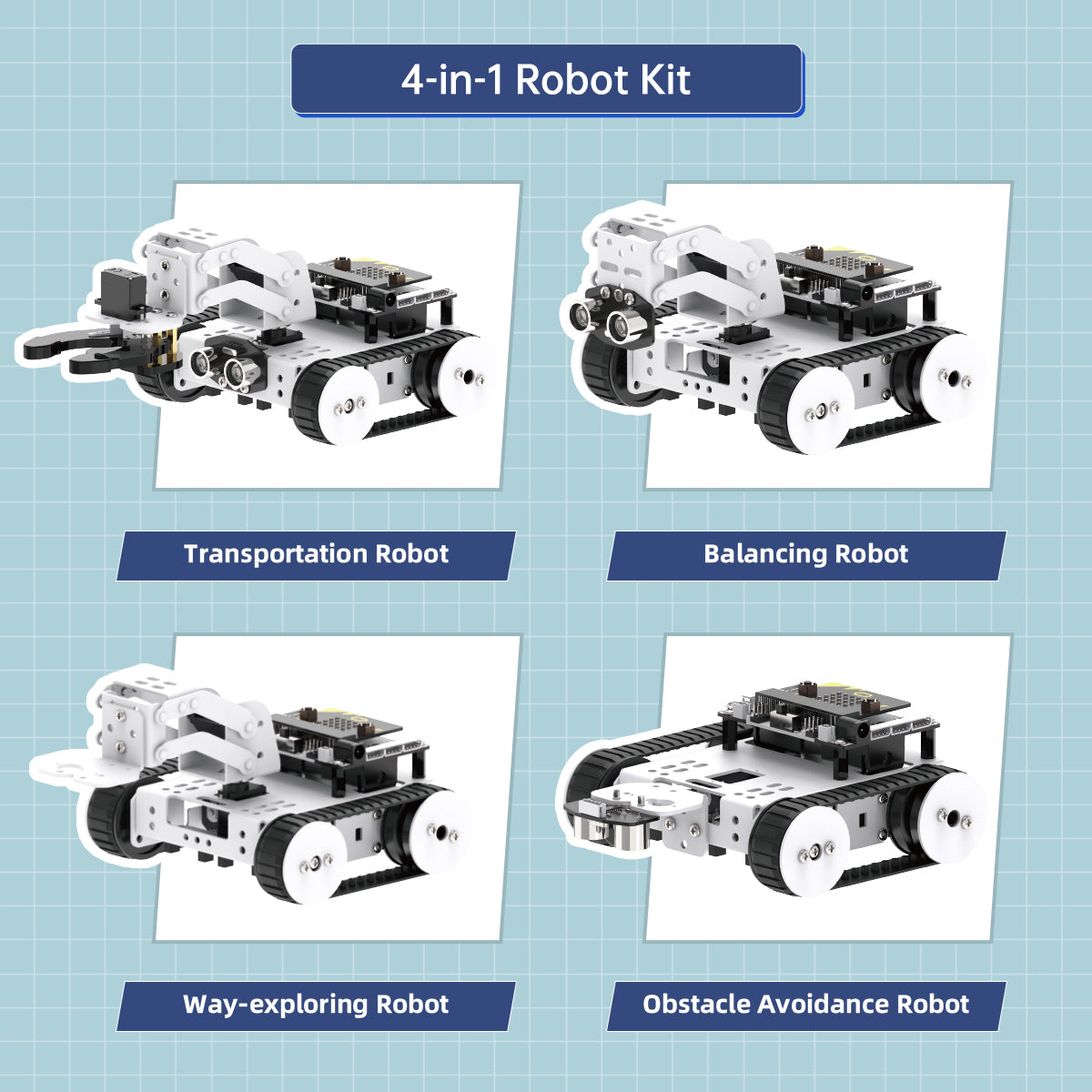

Qtruck Programmable Educational Robot: Hiwonder micro:bit Series Robot with Various Forms

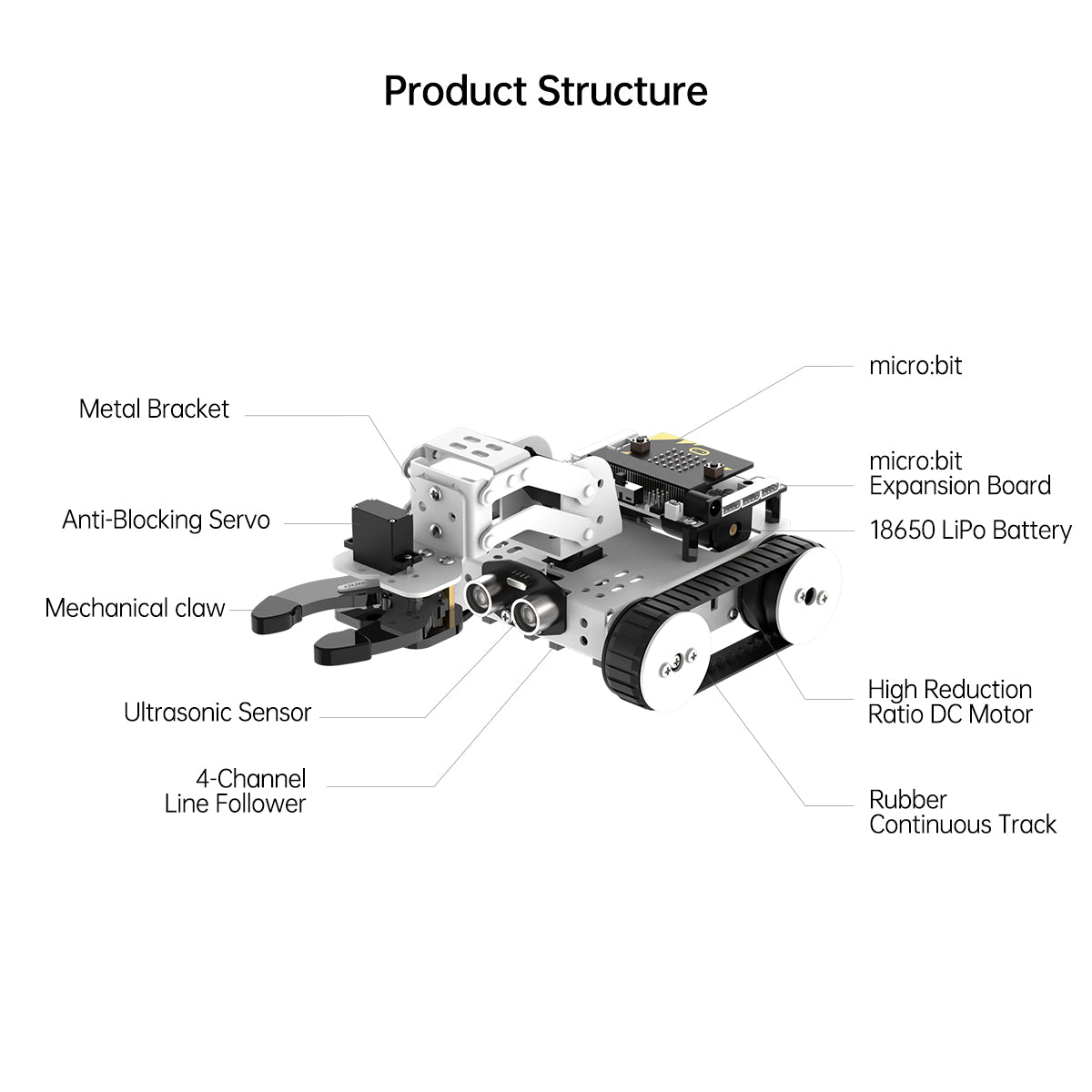

- 【Support micro:bit Programming】Qtruck is a programmable robot kit based on micro:bit, with micro:bit as the core controller, suitable for learning micro:bit programming.

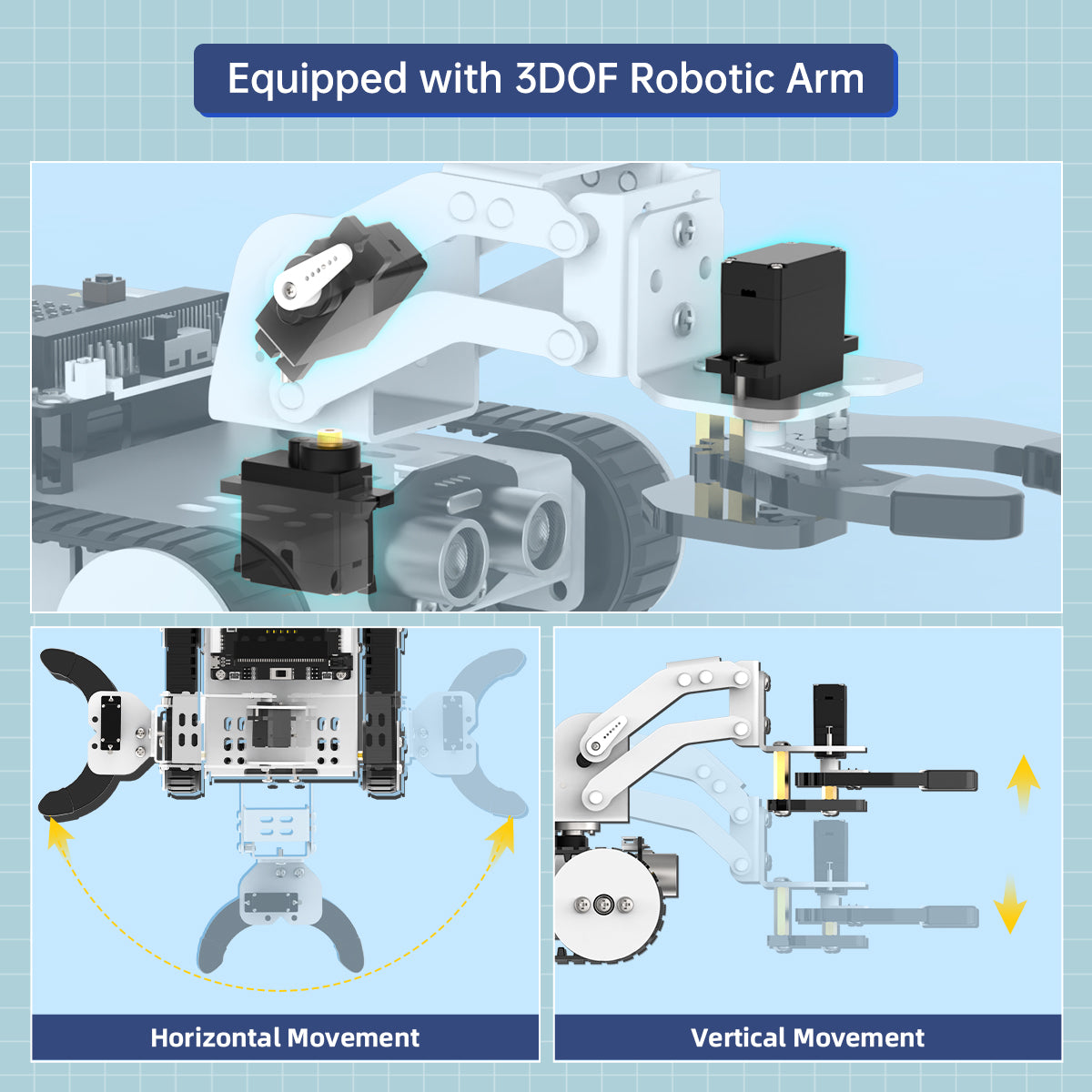

- 【3DOF Robotic Arm】Qtruck is equipped with 3DOF robotic arm,which can realize horizontal and vertical movement to complete the grabbing and transportation of items.

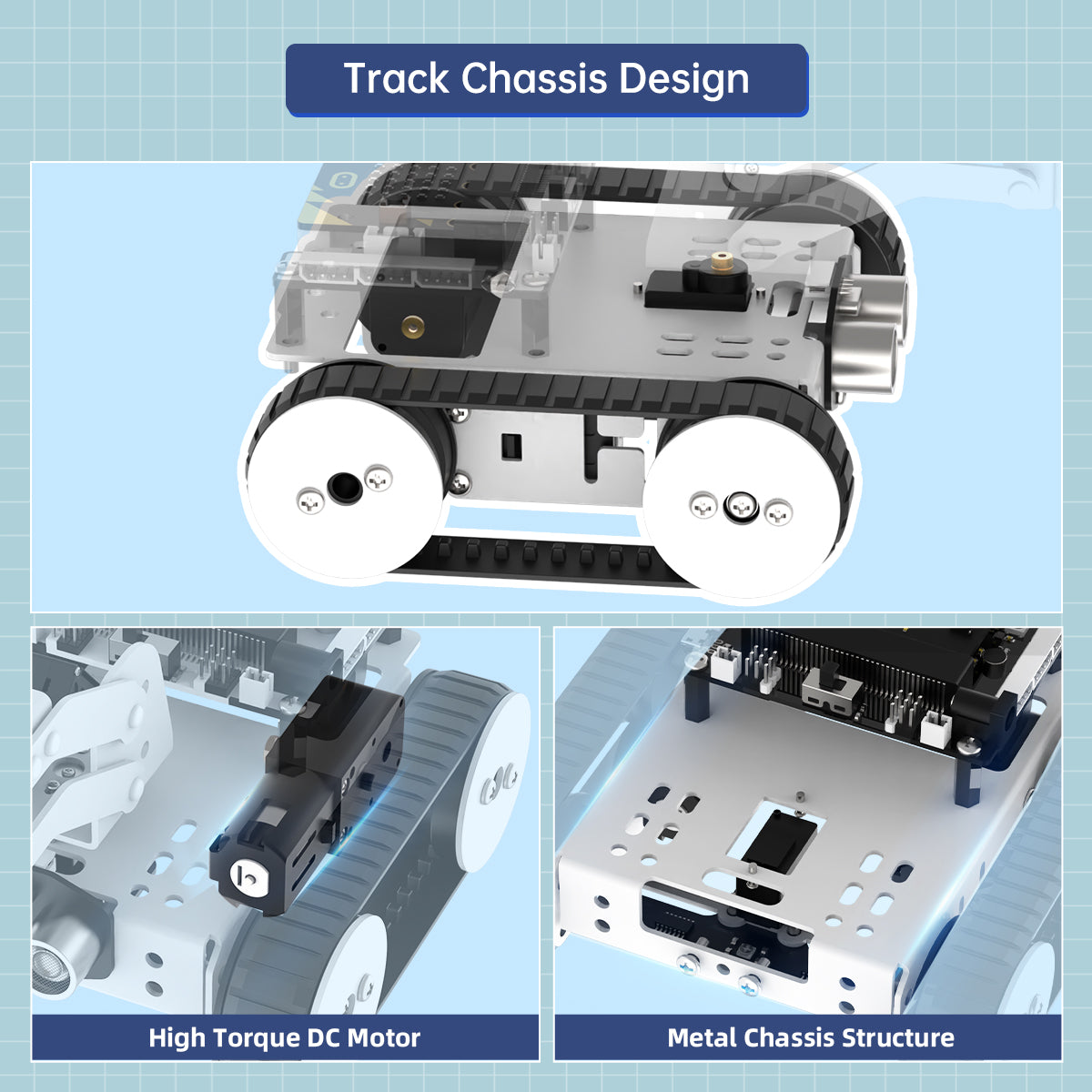

- 【Track Chassis Design】Qtruck is a high-performance micro:bit car, adopts a track chassis and metal chassis structure, which is equipped with a high-torque DC motor.

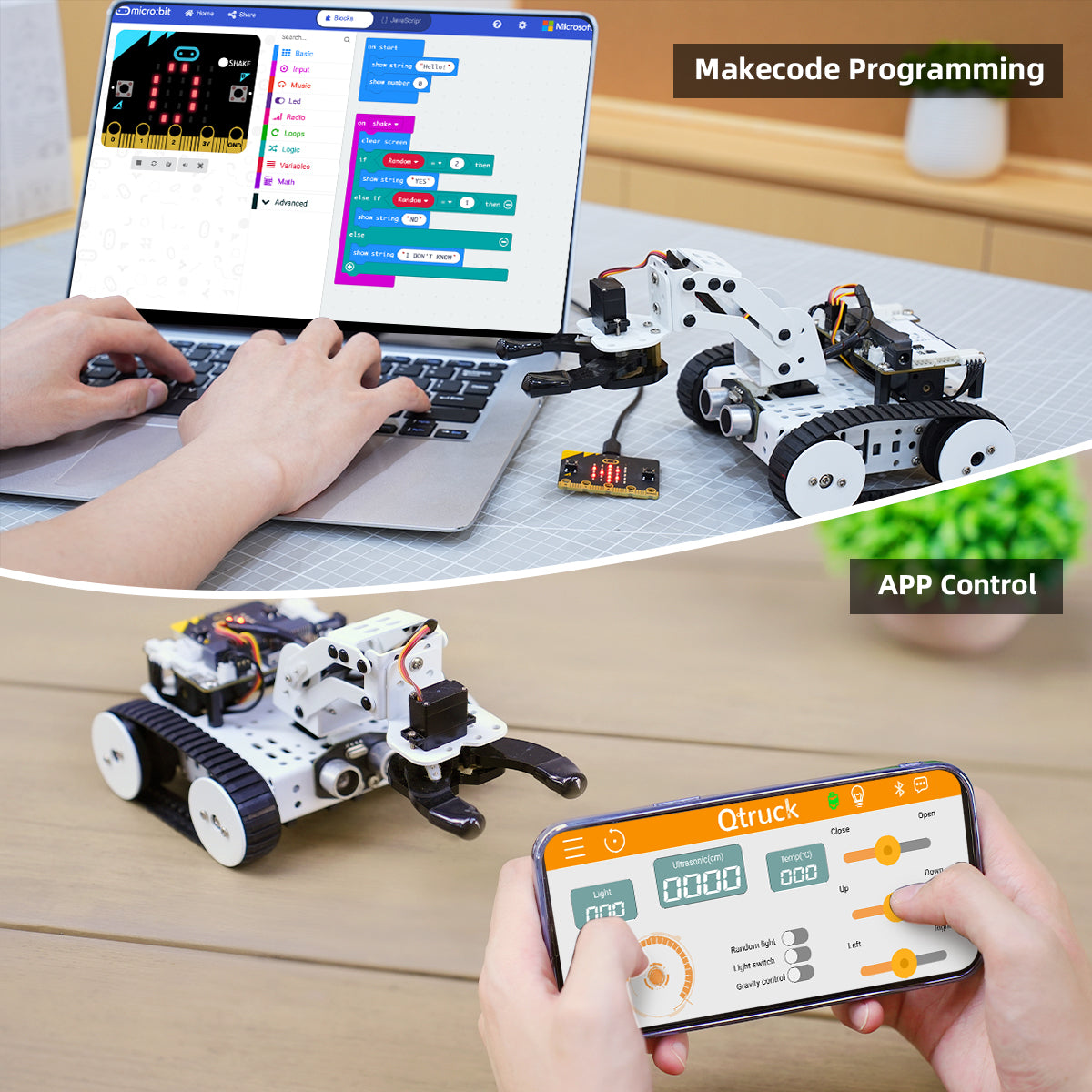

- 【Multiple Control Methods】Qtrcuk supports mobile APP and handlebit control, allowing you to control your robot as you like.

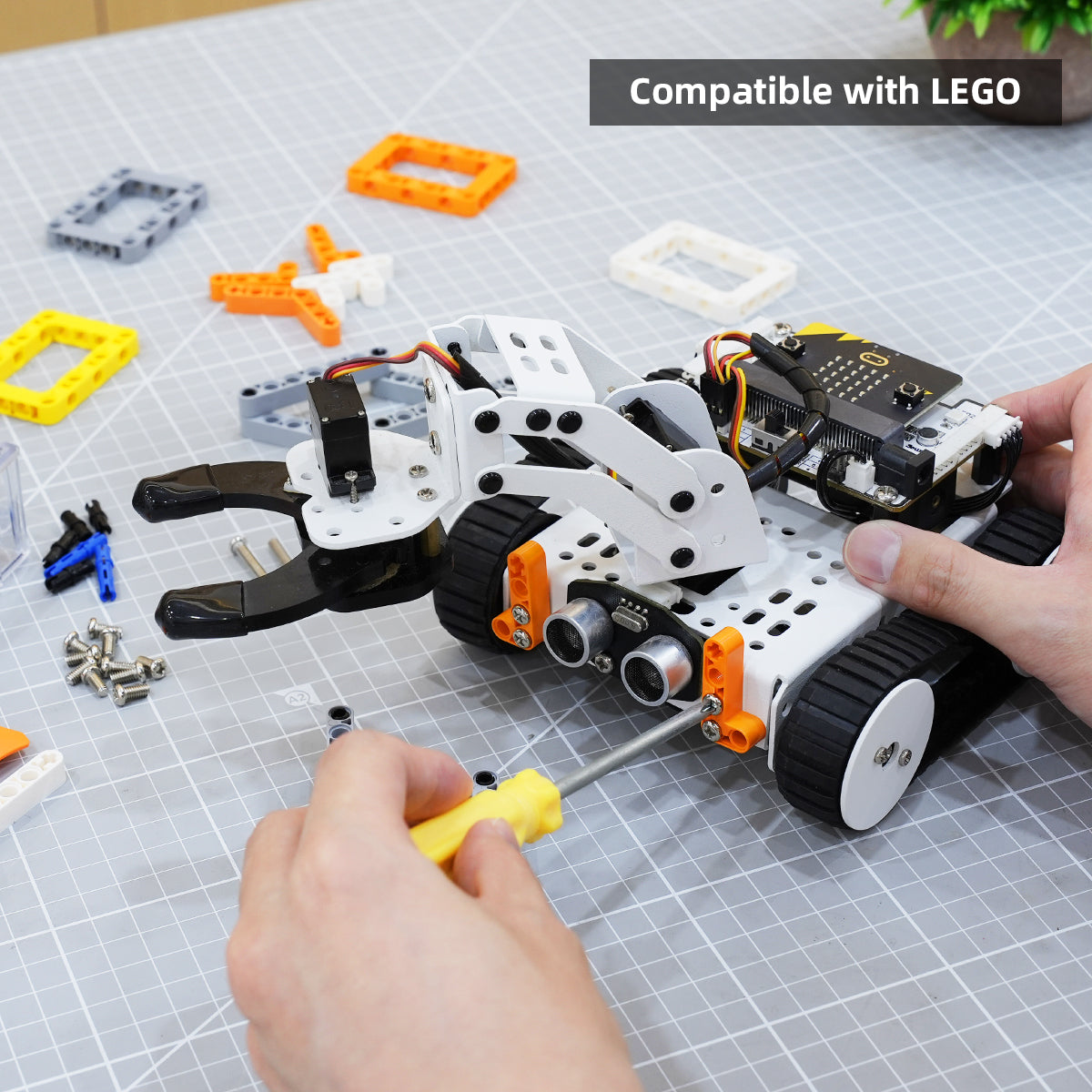

- 【Unlimited Creativity Supports Expansion】Qtruck supports a variety of sensors and LEGO expansion, allowing a variety of creative ways to play.

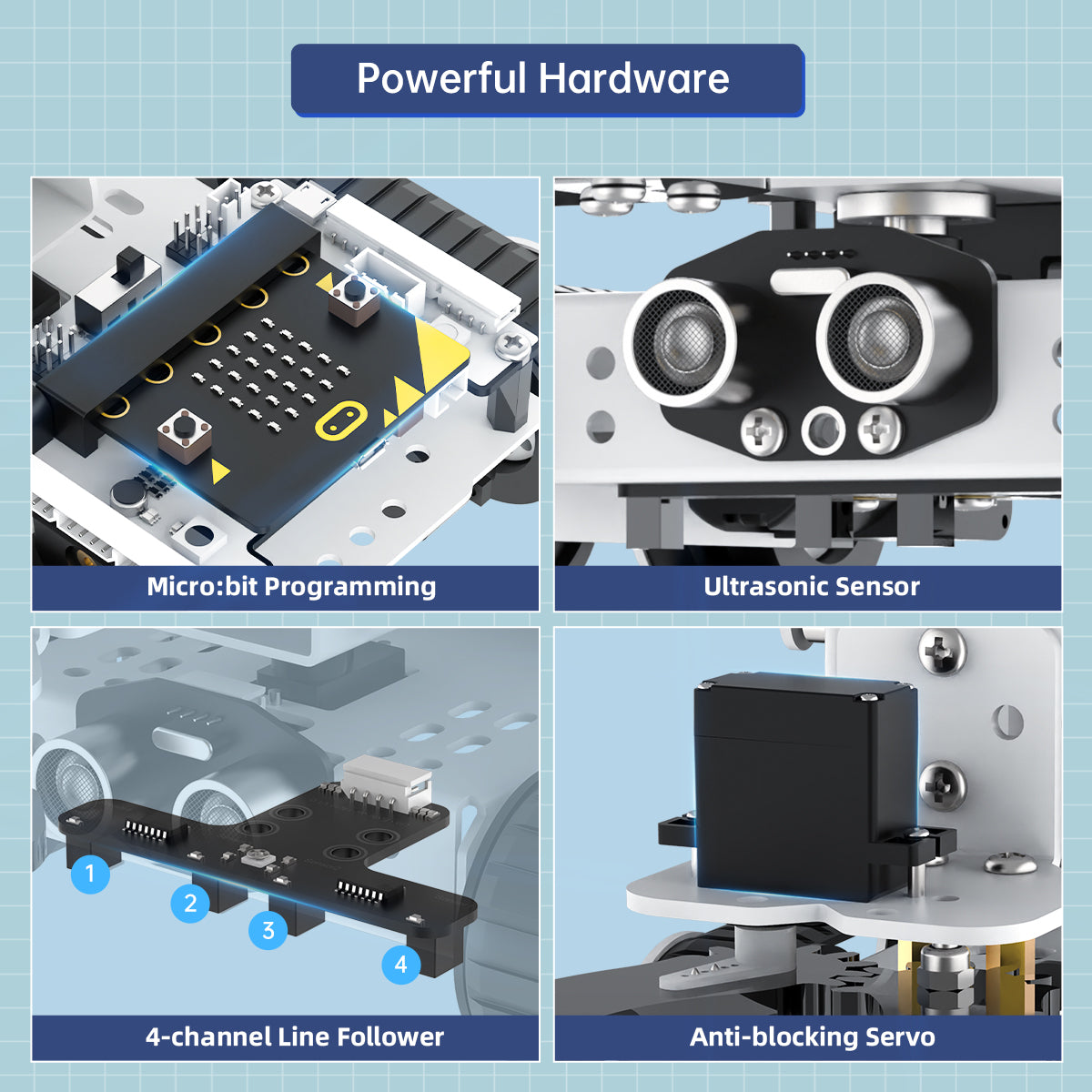

micro:bit Programming
micro:bit is an open-source hardware promoted by BBC for teenager’s programming education. You can code, customize and control your micro:bit from anywhere.
Ultrasonic Sensor
Qtruck is equipped with a ultrasonic sensor, which can realize ranging distance and obstacle avoidance.
4-channel Line Follower
With 4-channel infrared tracking, Qtruck can detect the black line of large-angle turns to finish the variable tracking.
Anti-blocking Servo
Equipped with three anti-blocking servo to ensure that the servo will not be burned due to blockage or collision, greatly extending the service life.
Cross the Maze
Handlebit Control
Grab in a Certain Distance
Clear the Obstacle on Its Way
Intelligent Line Tracking
Chasing

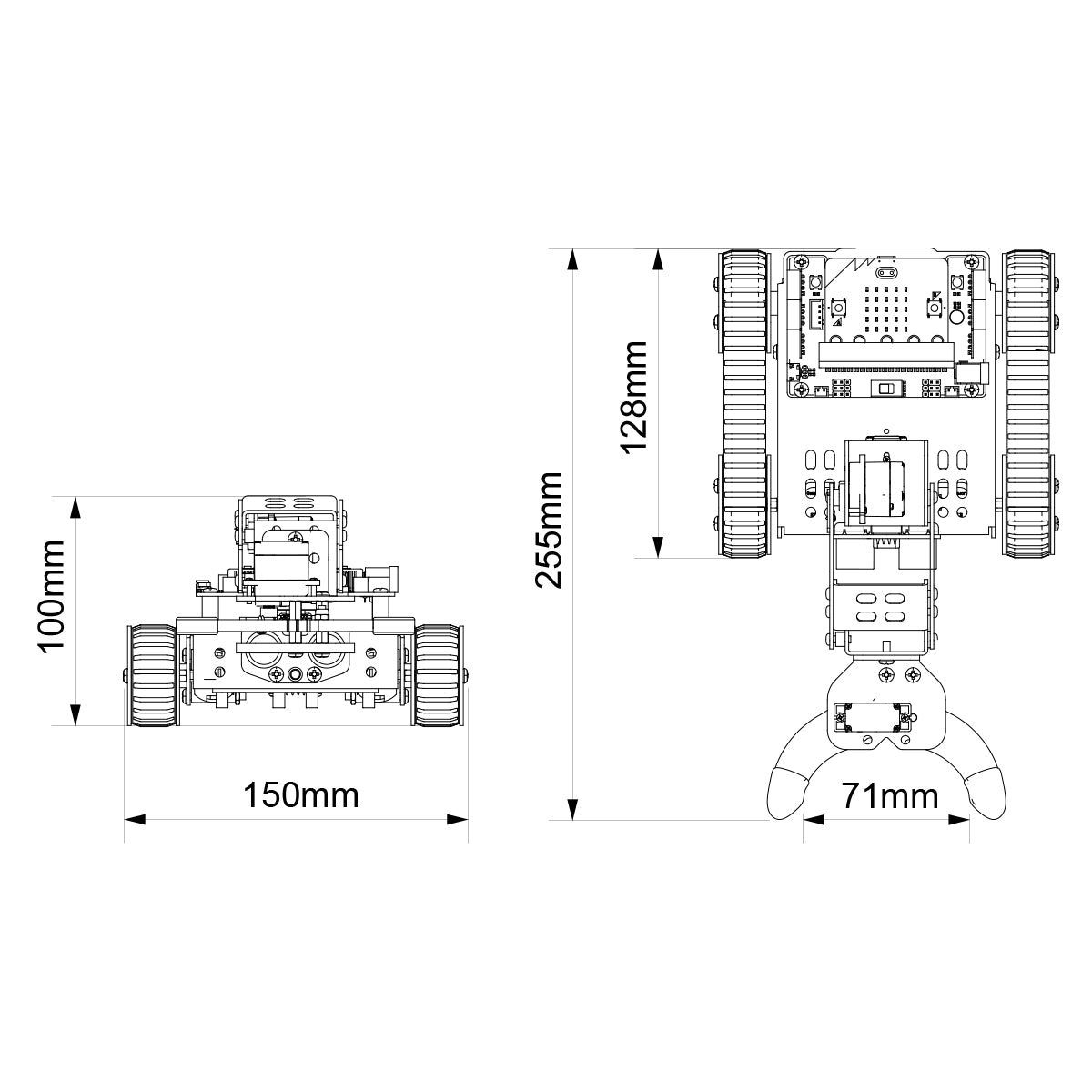

| Product size | 255*150*100mm |
| Product weight | About 0.81kg |
| Package size | 24*19*13.5cm |
| Package weight | About 1.1kg |
| Power supply | 3.7V 18650 lipo battery (1800mAh) |
| Running time | About 60 minutes |

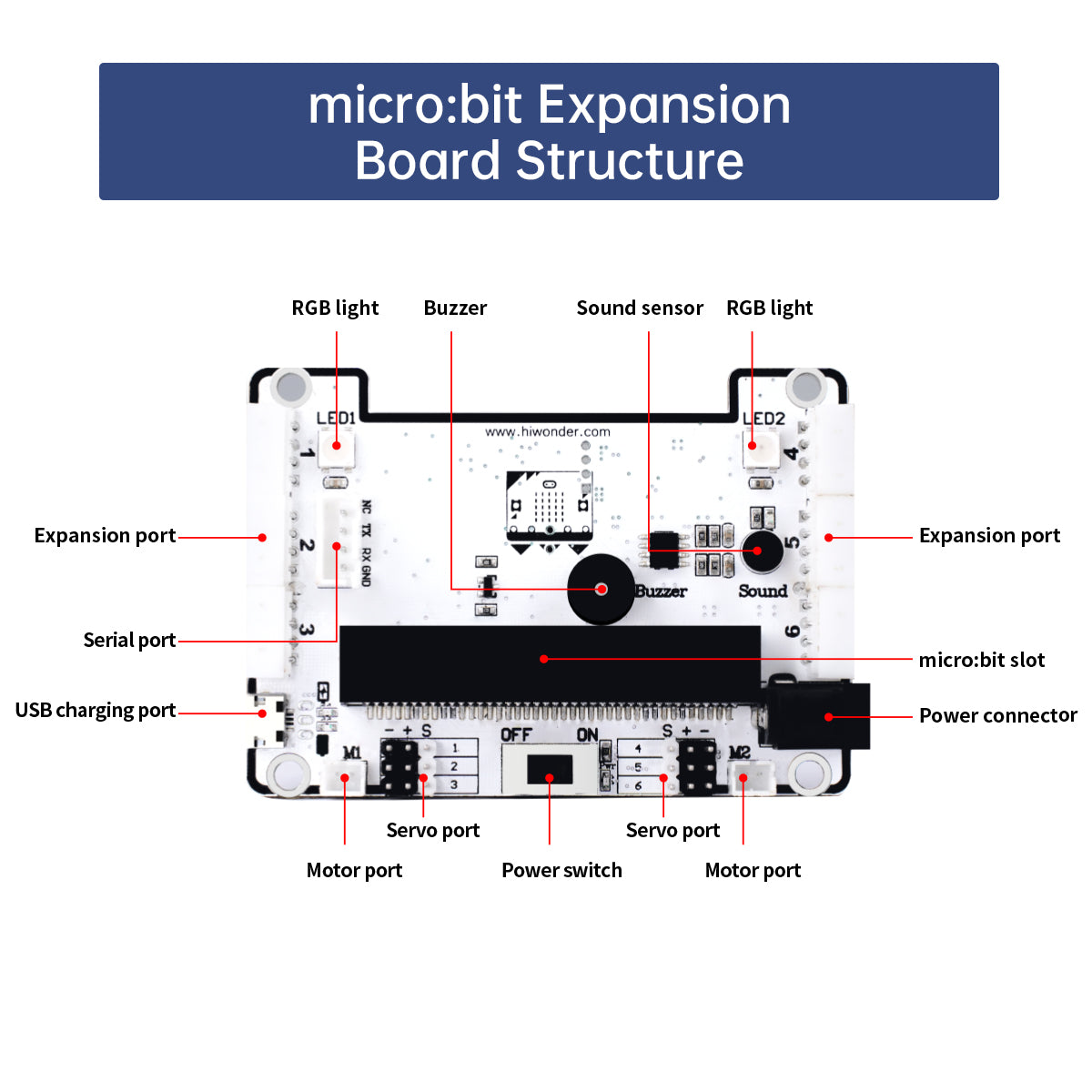

| Controller system | micro:bit + micro:bit expansion board |
| Programming software | MakeCode (offline Version) micro:bit (graphical programming/JavaScript) |
| Input | Sound sensor, ultrasonic sensor, line follower, light sensor,accelerometer, electronic compass, temperature sensor |

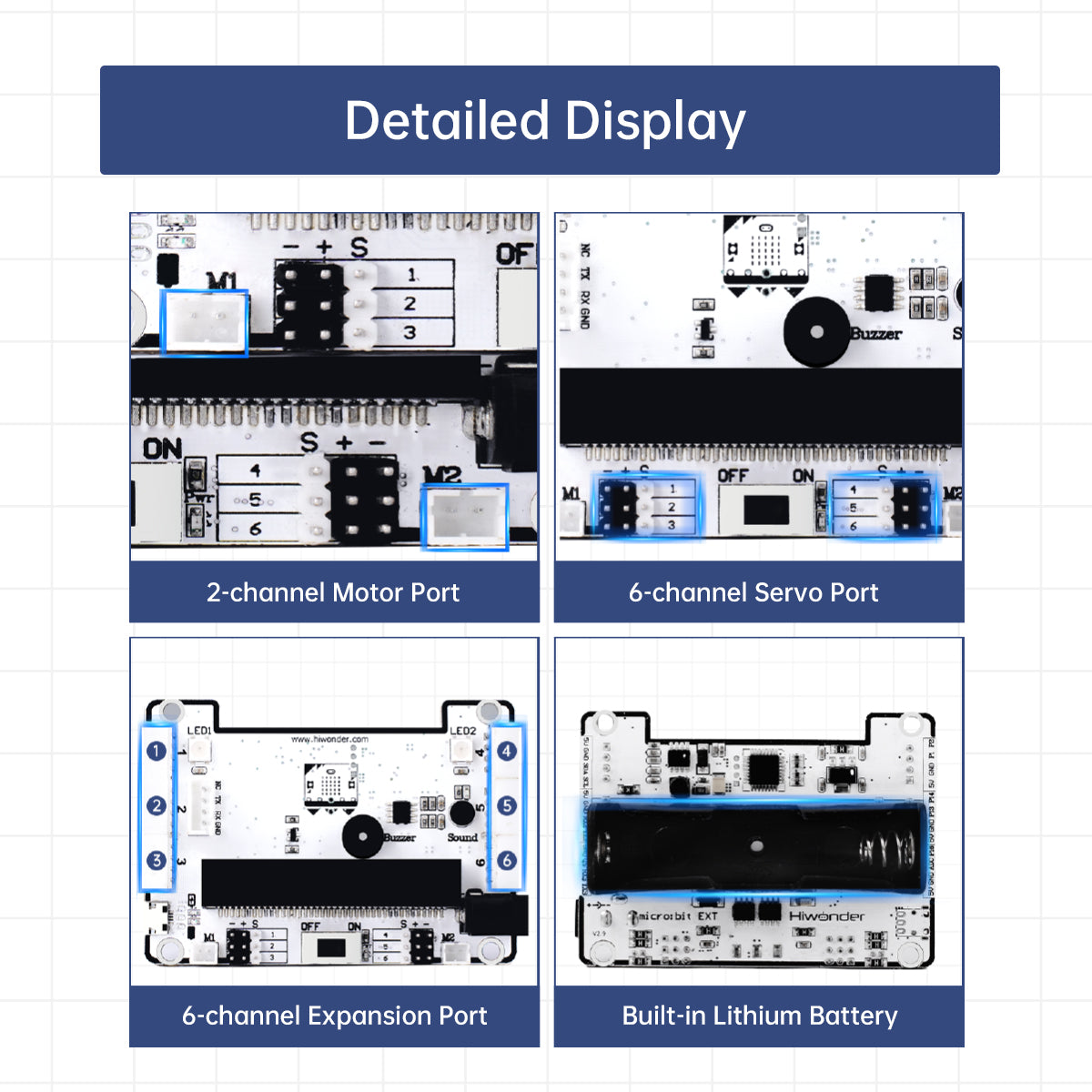

| Output | Buzzer, RGB lights, motor ports, servo ports, 5X5 LED dot matrix |
| Communication port | USB, Bluetooth |
| Product size | 255*150*100mm |
| Product weight | About 0.81kg |
| Package size | 24*19*13.5cm |
| Package weight | About 1.1kg |
| Power supply | 3.7V 18650 lipo battery (1800mAh) |
| Running time | About 60 minutes |
| Controller system | micro:bit + micro:bit expansion board |
| Programming software | MakeCode (offline Version) micro:bit (graphical programming/JavaScript) |
| Input | Sound sensor, ultrasonic sensor, line follower, light sensor,accelerometer, electronic compass, temperature sensor |
| Output | Buzzer, RGB lights, motor ports, servo ports, 5X5 LED dot matrix |
| Communication port | USB, Bluetooth |
Customer Reviews

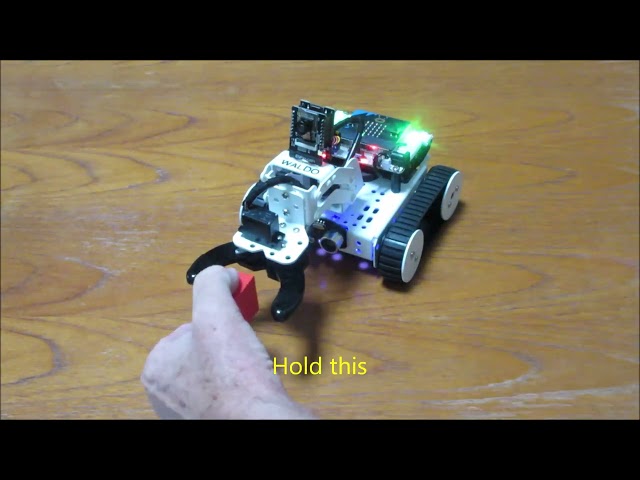

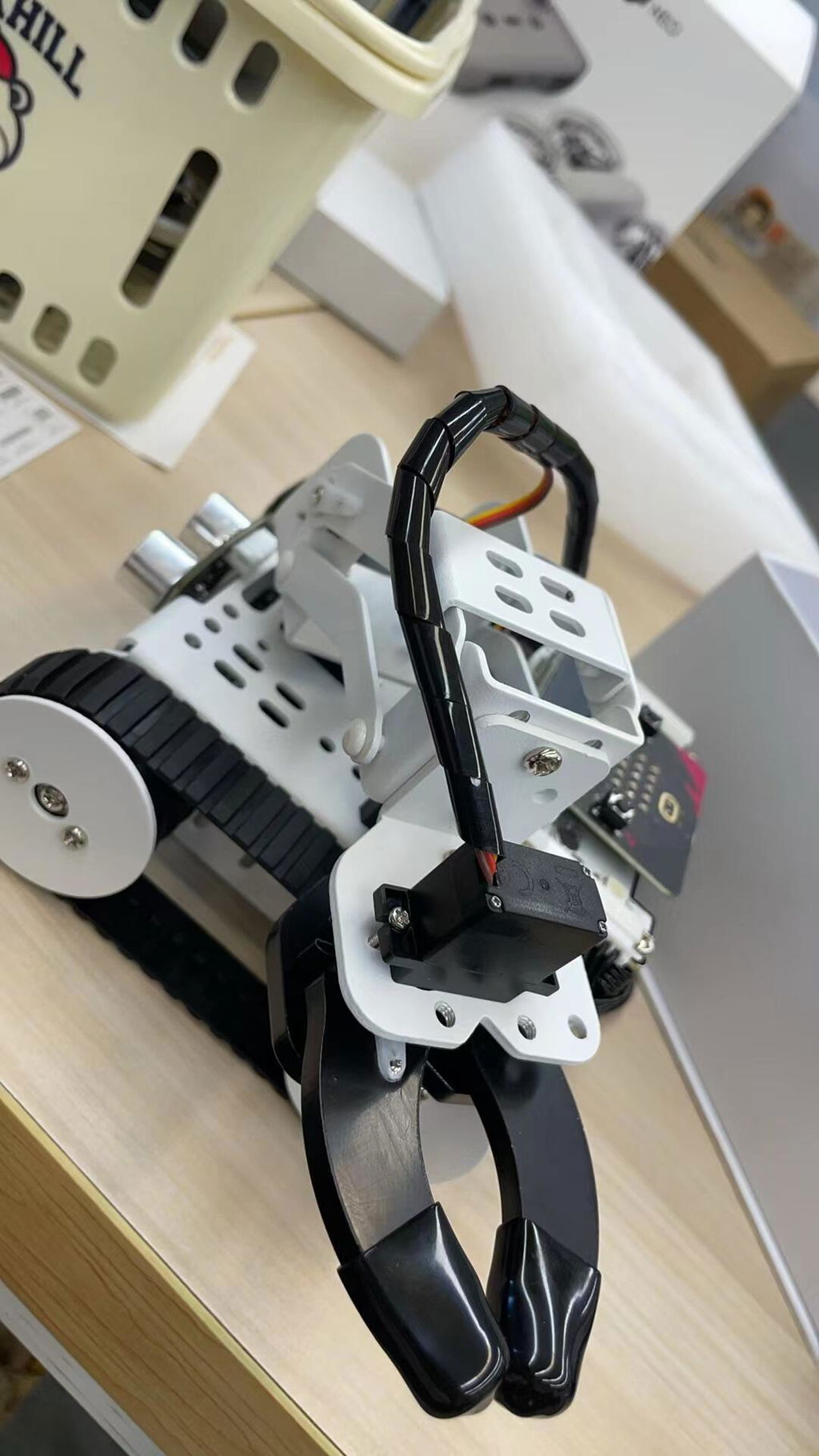

The mechanicals of this base are fairly robust, but it takes quite a while to assemble the kit (around 2 hours). Note that the gripper is a little more sturdy if you use a leftover M3*25 screw on the passive finger, and you'll probably want a higher capacity battery if you do a lot of debugging. By contrast, I really dislike the BBC Microbit system -- it feels needlessly crippled and the Bluetooth is very finicky. Also note that the only stable mode of the MakeCode programming tool is the clunky "Blocks" interface, and the documentation provided by Microbit on the various functions is extremely shallow.
While this package is best suited for short simple programs, I WAS able to write a fairly fancy remote PC interface to Qtruck via Bluetooth (search GitHub for jconnell11/Baijiu to see the code).
Qtruck and its service are outstanding. The abundant tutorials and programs provided have greatly assisted our project.

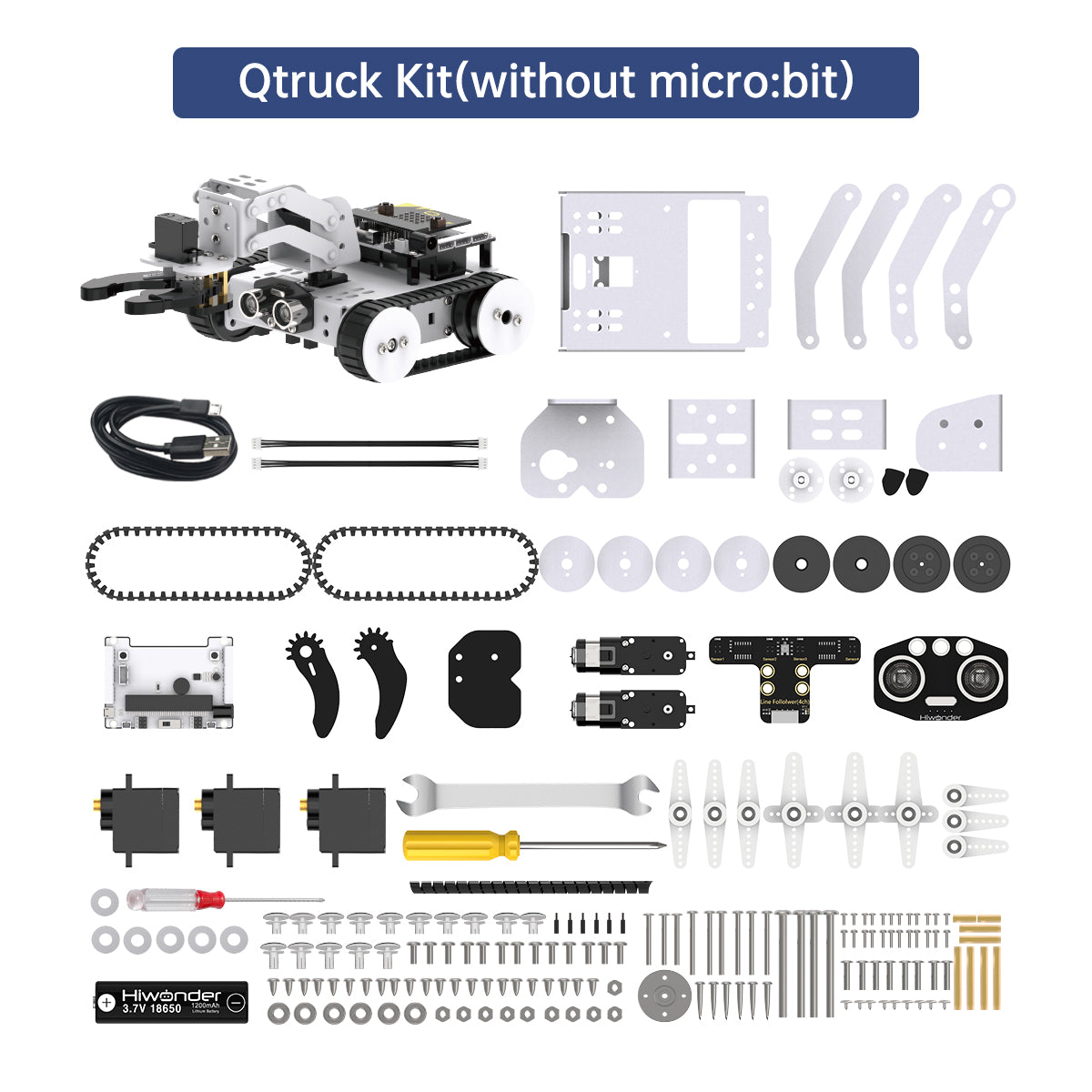

This kit is one quality kit. Our 10 year old grandson has built it with a bit of guidance... Following the steps/directions. Both worked flawlessly.
There was no missing anything in the kit. Parts were packaged in an above quality care!
I recently received the Qtruck robot car and found the instructions to be detailed and enjoyable to follow. The app provides excellent control, and the graphical programming is easy to learn. The car's obstacle avoidance function works accurately.
The car has been assembled and feels of high quality. Programming is straightforward and the operating system is easy to use, making for a great experience.
Questions & Answers
Have a Question?
-
I have the qtruck 4in1 and search for code and application to upload to the board.
Please check this link: https://drive.google.com/drive/folders/1u8TILMw2LyNkhKHKxMmIrhzFbk_bZ_fh?usp=drive_link
