- 【Specifications】76mm*53mm(2.99in*2.09in); Weight: 37g (1.31oz)
- 【Power Supply】This controller can be powered by either a Lipo battery or a power adapter, operating within a voltage range of 5-8.4V.
- 【Manual Adjustment】The controller has 6-channel PWM digital servo port, adopts high-accuracy potentiometer for precise servo control and provides servo reset function.
- 【Support PWM Servo】It supports a wide variety of PWM servos, allowing manual angle adjustments without the need for coding.
- 【Controller Accuracy】Its control accuracy can reach up to 0.09° (with a 1us PWM limit for minimal changes)
- 【Overcurrent protection】The controller offers 3-channel overcurrent protection to prevent damage to the servo.
- 【Versatile Applications】It can be applied in gripper, AI robot, robot arm and more.
Available:
Only 959 items in stock
In stock
In stock
Out of stock
Back in stock
$18.99
Save
% $-18.99

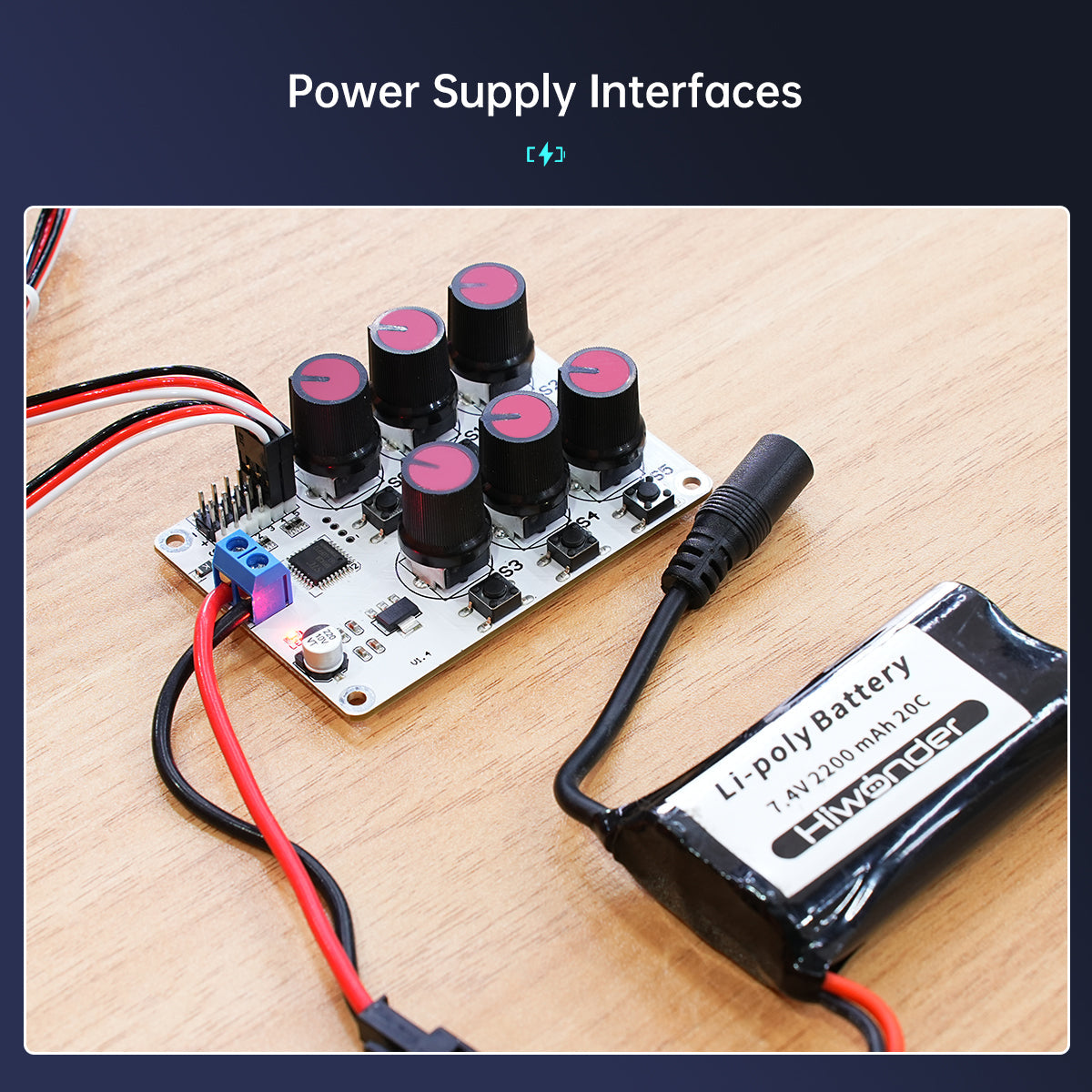

Two Power Supply Methods
Two Power Supply Methods
Product Parameters
- 1. High-precision potentiometer can control the steering gear in real time.
- 2. Onboard 3-way overcurrent protection interface (0.1.2 interface), which can prevent the steering gear from being burned out by excessive current.
- 3. High-resolution PWM signal, onboard 8-bit MCU, can make the control accuracy higher.
- 4. Support manual steering gear controller / steering gear reset to center, switch by function button
- 5. Accuracy of steering gear controller: 0.09° (refers to the minimum change value of PWM 1us)
- 6. Compatible with two power supply link methods of lithium battery/power adapter. (5-8.4V)
- 7. Onboard 6-way PWM digital servo interface, which can be controlled by high-precision potentiometer.
- 8. The size of the 6-way knob is 76mm*53mm, and the weight is 37g.
How to use:
- Supply power to the controller, the voltage can be 5~8.4V, the specific voltage is subject to the actual use of the servo’s rated voltage;
- The servo is plugged into the 3Pin servo port, + is the positive pole, -is the negative pole, and S is the signal terminal;
- The power-on default potentiometer control mode, the servo rotates synchronously when the knob is turned;

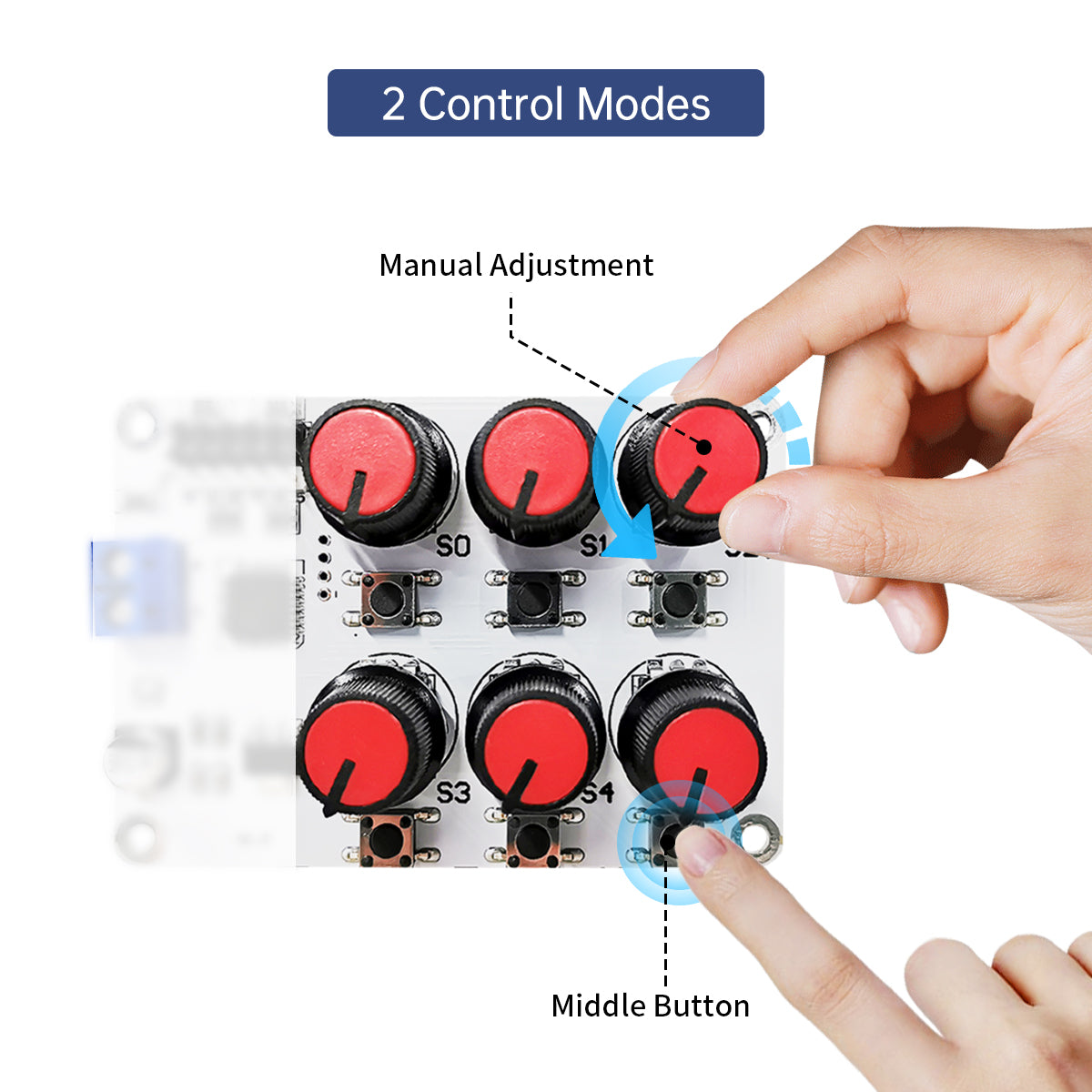

- The button below the knob can switch the mode, press respectively to
"Manual Mode": Knob control.
"Neutral Mode": Return to the center position.

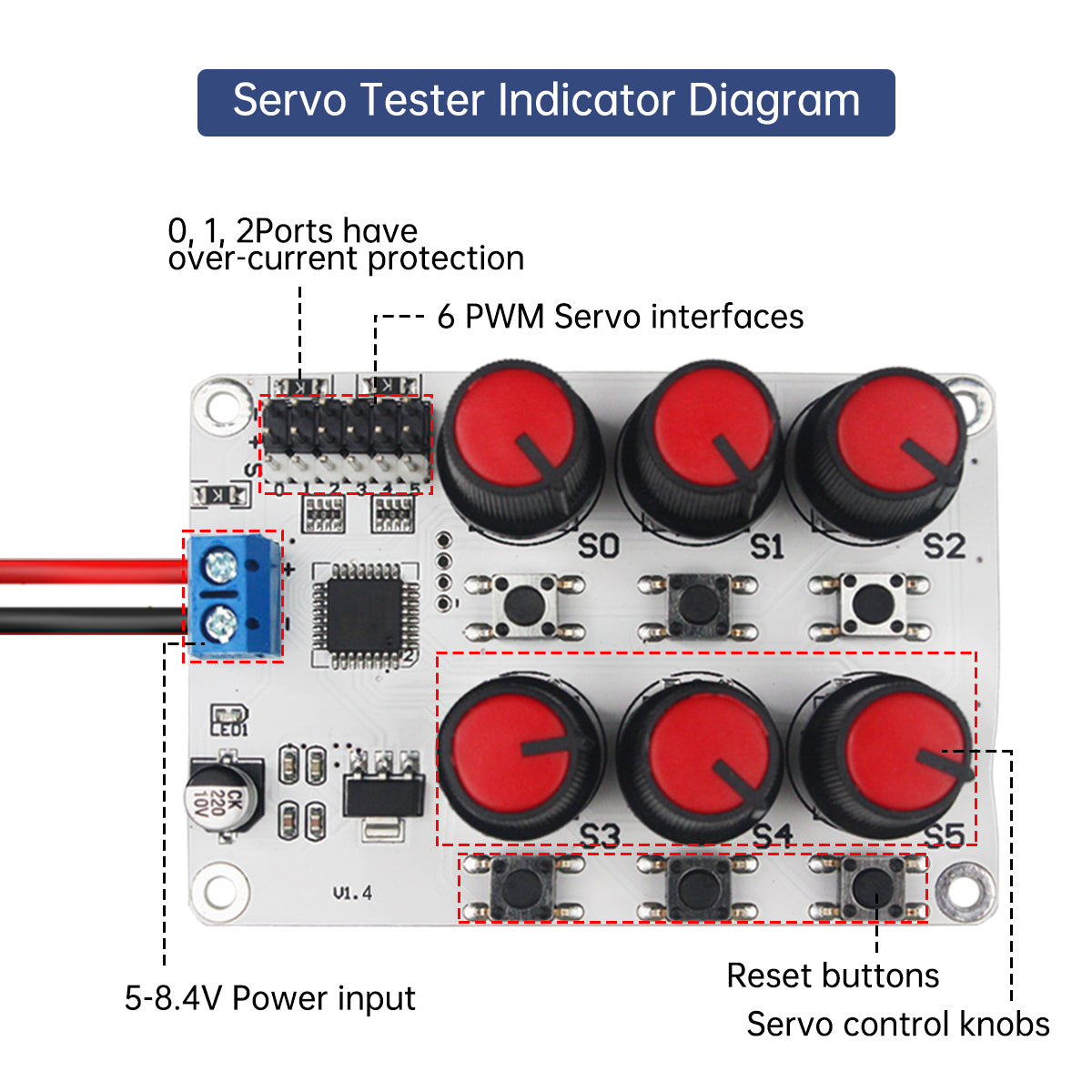

Information of Controller
- "+" Positive Pole
- "-" Negative Pole
- "S" Signal Terminal
- Manual Mode: Knob Control.
- Neutral Mode: Return to Center Position.

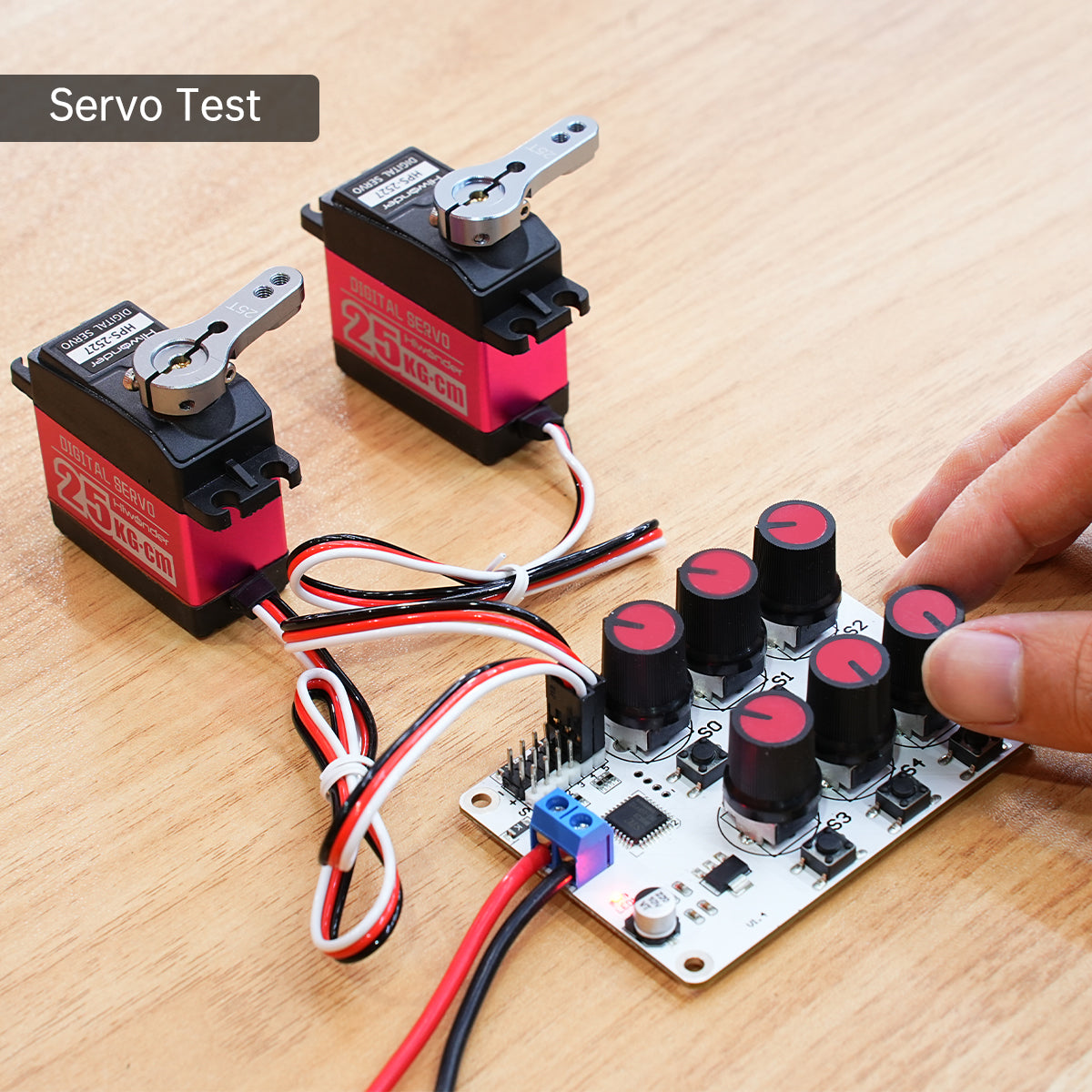

Manually Control The Servo

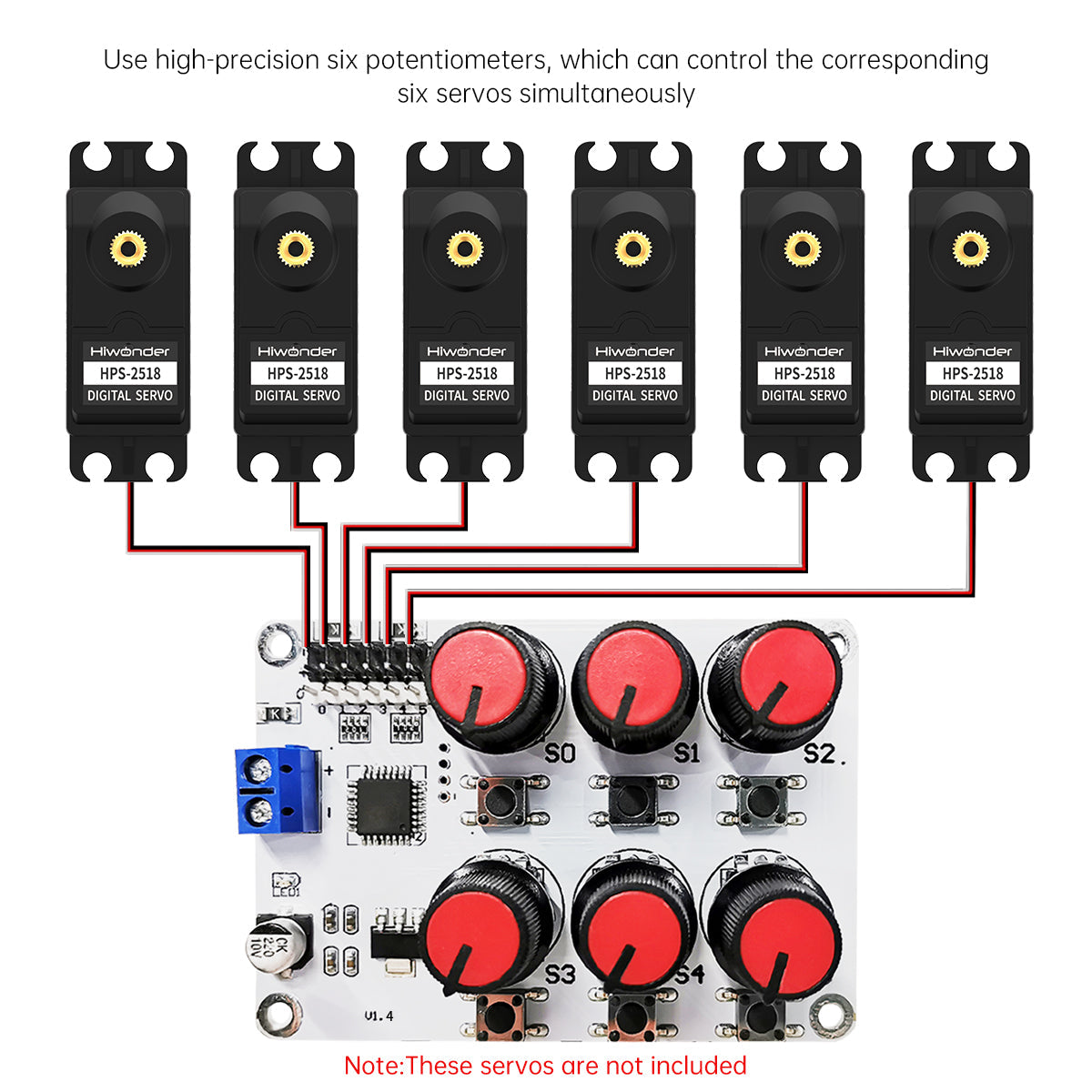

The angle rotation of the 6-way servo can be controlled in real time through the high-precision potentiometer.
Servo Quickly Return To Center
Through the reset button, the angle of the 6-way servo can be returned to the center and reset to 90°.
Overcurrent Protection
0, 1, 2 servo interfaces have over-current protection function.

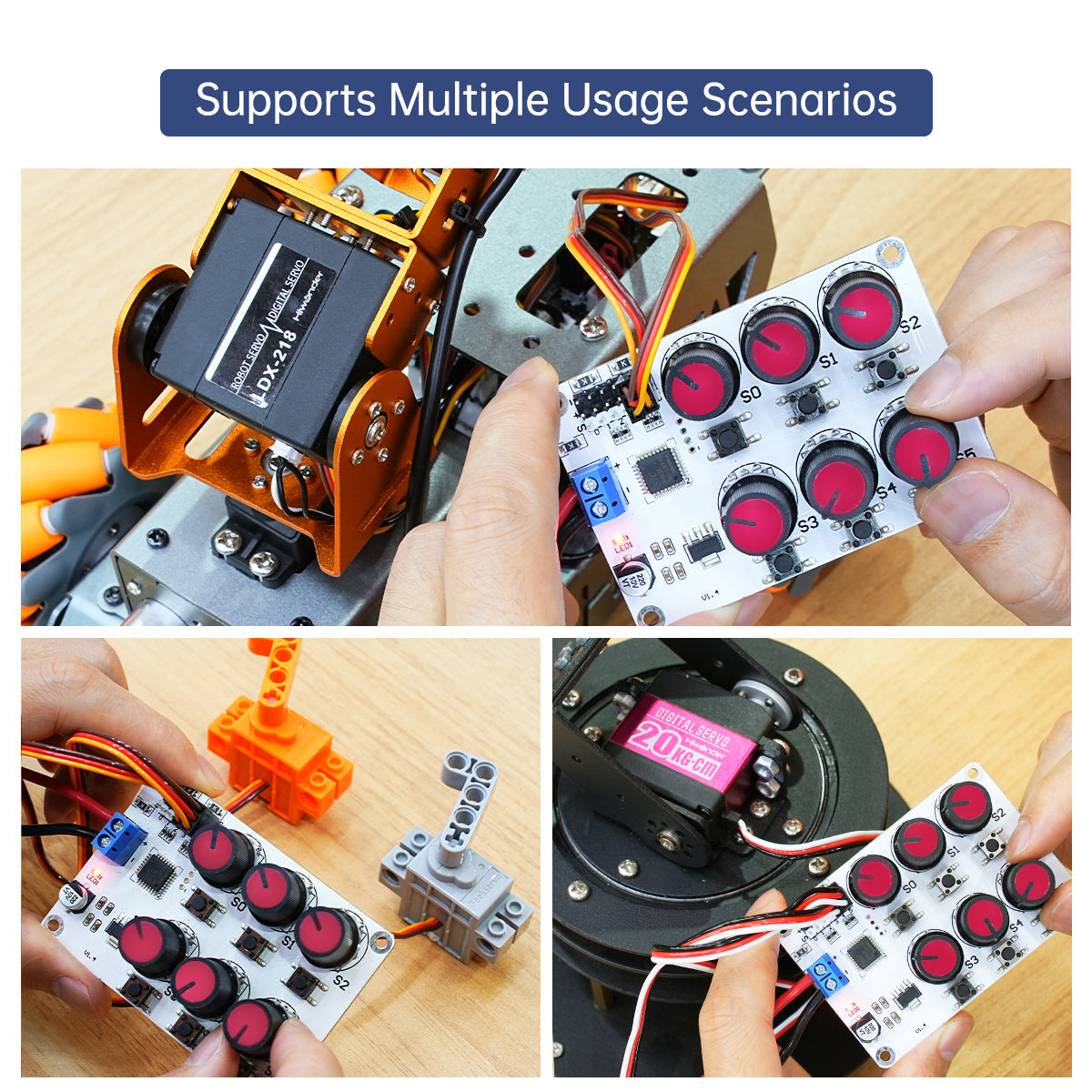

Robotic Arm Debugging
Claw Debugging
Servo Gimbal Debugging
|
|
|
|
|
|---|---|---|---|---|

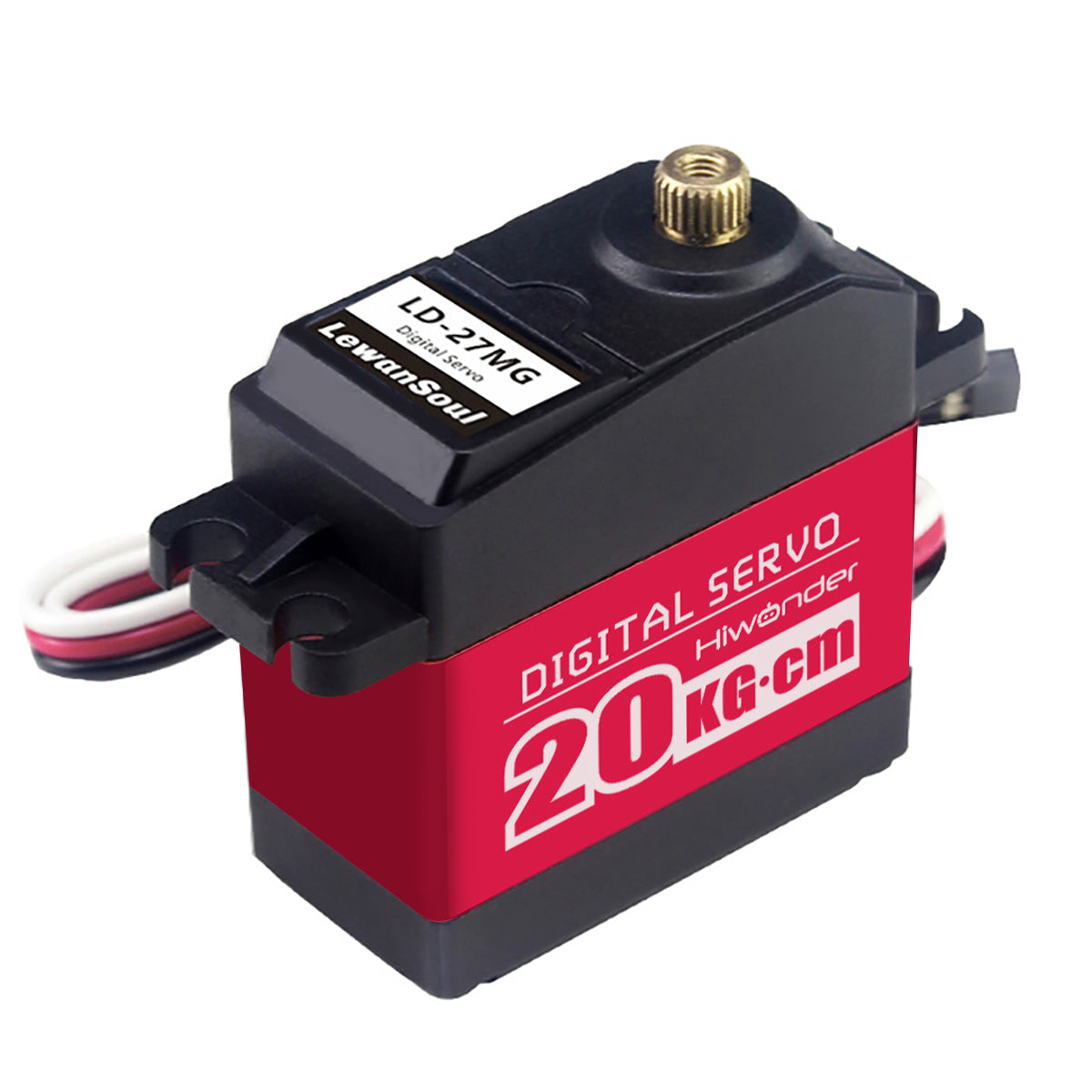

| Servo Tester 1 Channels | Servo Tester 6 Channels | 20-60KG/180°-270° PWM Servo | 35KG/180°-270° Coreless Servo | |
| Size | 2*1.4inch / 50*35mm | 3*2.1 inch / 76*53 mm | 1.57*0.8*1.59inch / 40*20*40.5mm | 1.57x0.79x1.5 inch / 40*20*38mm |
| Weight | 0.03 lb / 13.5g | 0.1 lb / 37g | 0.15LB / 66G | 0.13LB / 60G |
| Supply Voltage Range | 5-8.4V | 5-8.4V | 6-7.4v | 5-7.4v |
| Servo Controller Accuracy | 0.09° | 0.09° | 0.3° | 0.3° |
