Hiwonder Electrical Conveyor Belt/ Adjustable Speed and Moving Direction
Product SKU: 20070016
- Operating load: about 9kg
- Maximum speed: 50mm/s
- High-Quality DC Geared Motor
- Industrial PVC Conveyor Belt
- Aluminum Alloy Bracket
- Adjustable Forward/Reverse Direction and Transport Speed
- Suitable for Robot/Robot Arm Automation Applications
Available:
Only 9995 items in stock
In stock
In stock
Out of stock
Back in stock
$499.99
Save
% $-499.99
Product Introduction
The electric conveyor belt features high-quality DC geared motors, an industrial-grade PVC conveyor belt, and an aluminum alloy bracket, ensuring the smooth transport of various objects without the need for an external power supply. Users can control the conveyor belt's transport direction and speed through the motor power supply. Additionally, the conveyor belt is plug-and-play for convenience. It's compatible with most multi-degree-of-freedom, linkage, and other bionic manipulators on the market, making it an excellent choice for AI-driven automated item sorting scenarios!
Adjustable Forward/Reverse Direction and Speed Plug-and-Play
No additional power supply is required. Simply power the motor through the motor cable, enabling control over the forward and reverse transport of the conveyor belt, as well as the transport speed. It's plug and play.

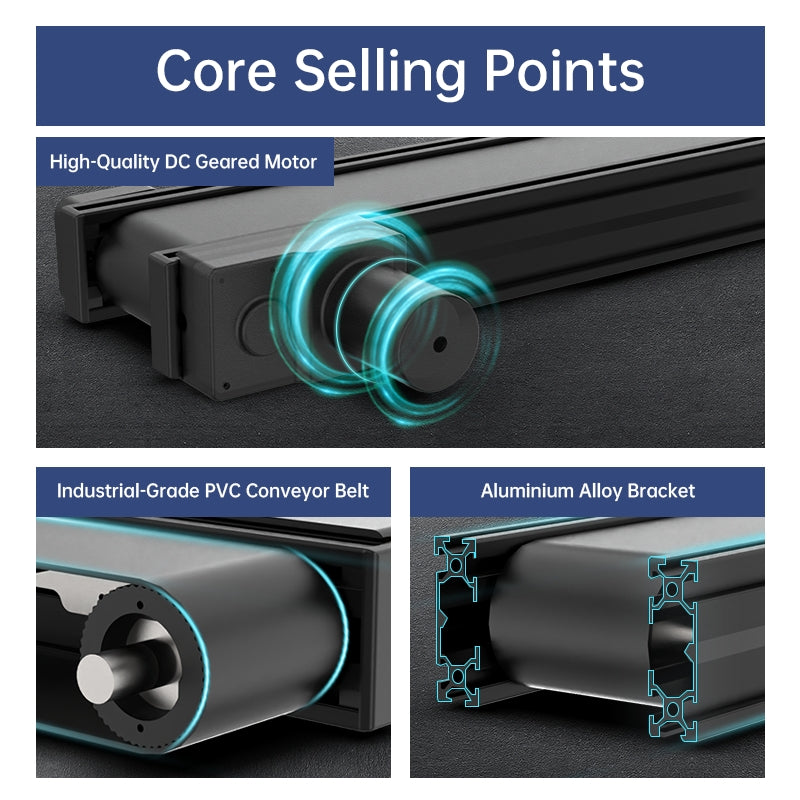

High-Quality DC Geared Motor
The motor of the conveyor belt features high-durability all-metal gears and metal output shafts, minimizing losses and extending the motor's service life.
Industrial-Grade PVC Conveyor Belt
The conveyor belt utilizes an industrial-grade PVC belt with a 2mm thickness, ensuring smooth transportation of target objects. It's resistant to deformation, slip, and highly durable.
Aluminium Alloy Bracket
The conveyor belt's structural bracket is crafted from aluminum alloy, ensuring stability and significantly extending the electric conveyor belt's service life. The surface is anodized, providing an exquisite appearance.
Compatible with Multiple Controllers

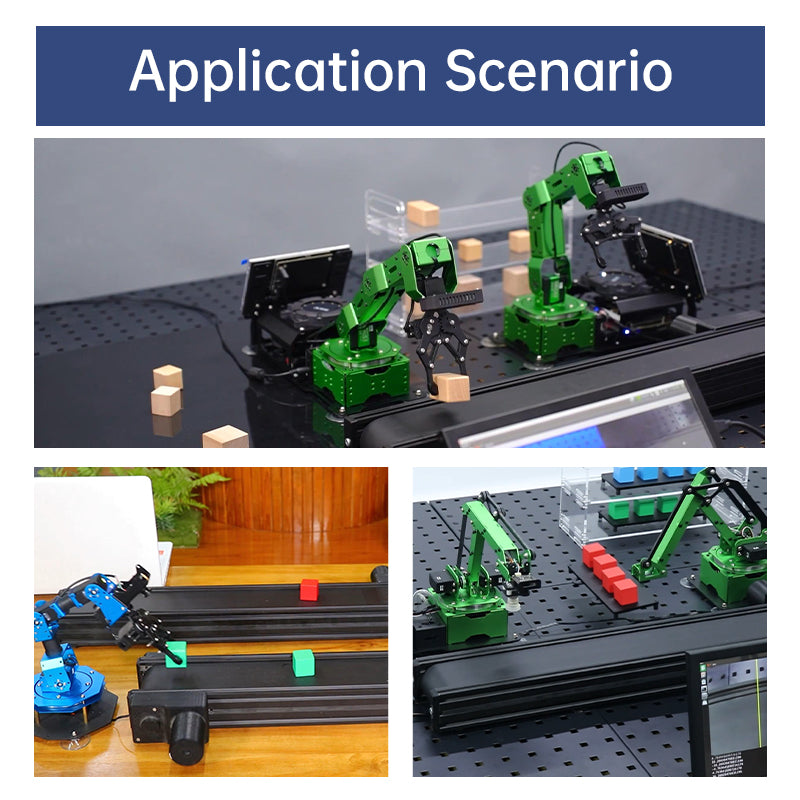

Suitable for AI Automatic Item Sorting Scenario
| Electric Conveyor Belt Parameters | |||
| Product name | Electric conveyor belt | Operating load | About 9KG |
| Operating voltage | 12V | Rated current | 2.5A |
| No-load current | 0.8A (starting current: 1.3A) | Effective carrying length | 694mm |
| Maximum speed | 50mm/s | Ratio | 1:70 |

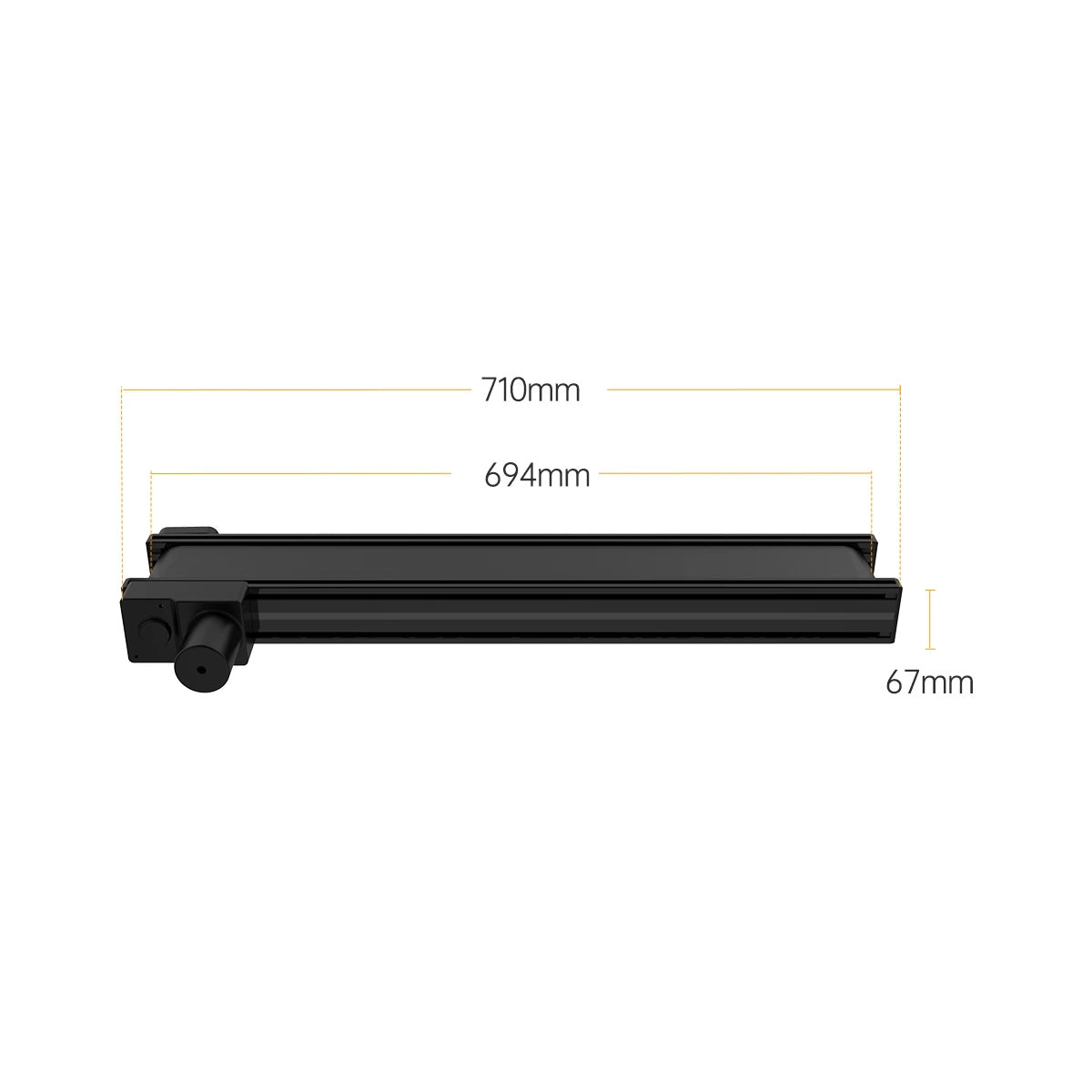

| Size | 710*227*67mm | Net weight | About 3.7kg |
| Product weight (with package) | 4.5kg | Product size (with package) | 780*300*120mm |
| Electric Conveyor Belt Parameters | |
| Product name | Electric conveyor belt |
| Operating load | About 9KG |
| Operating voltage | 12V |
| Rated current | 2.5A |
| No-load current | 0.8A (starting current: 1.3A) |
| Ratio | 1:70 |
| Maximum speed | 50mm/s |
| Effective carrying length | 694mm |
| Size | 710*227*67mm |
| Net weight | About 3.7kg |
| Product weight (with package) | 4.5kg |
| Product size (with package) | 780*300*120mm |
| Item | Specification |
| Product name | Electric conveyor belt |
| Operating load | About 9KG |
| Operating voltage | 12V |
| Rated current | 2.5A |
| No-load current | 0.8A (starting current: 1.3A) |
| Ratio | 1:70 |
| Maximum speed | 50mm/s |
| Effective carrying length | 694mm |
| Size | 710*227*67mm |
| Net weight | About 3.7kg |
| Product weight (with package) | 4.5kg |
| Product size (with package) | 780*300*120mm |
Questions & Answers
Have a Question?
-
Do I plug the power connector of the conveyor belt into one of the ports on the ArmPi? If so, which on? Picture would be much appreciated!
The conveyor belt can work with ArmPi FPV, and you can check this link: https://drive.google.com/drive/folders/1kbtGye0bgxHnIhF4PHPH2JJhMRnIewF8?usp=sharing
