- Working voltage: DC 5V
- Working current: 5mA
- Size: 50 × 20 mm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 990 items in stock
In stock
In stock
Out of stock
Back in stock
$3.99
Save
% $-3.99
Description

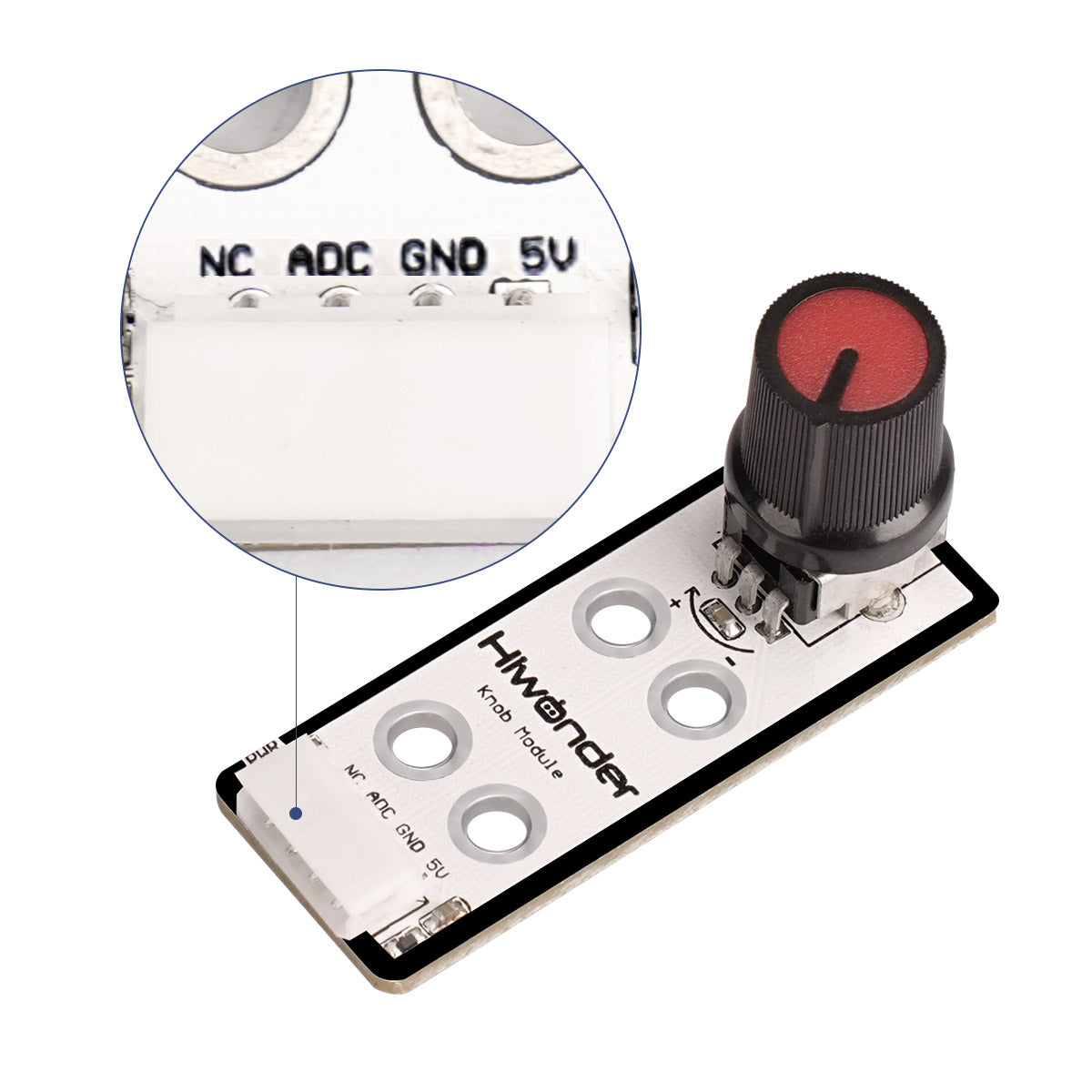

Hiwonder knob module is composed of potentiometer. By rotating the knob, you can adjust resistance value to change output voltage value. 5V GND terminal will input DC 5V voltage while ADC terminal will output 0 - 5 V voltage when working.
Knob module can be used with many modules to realize various functions, for example, fan speed control, light brightness control and so on. The rotating arrow is printed on it for user convenience.
For more information, refer to https://www.hiwonder.com.cn/store/learn/71.html.

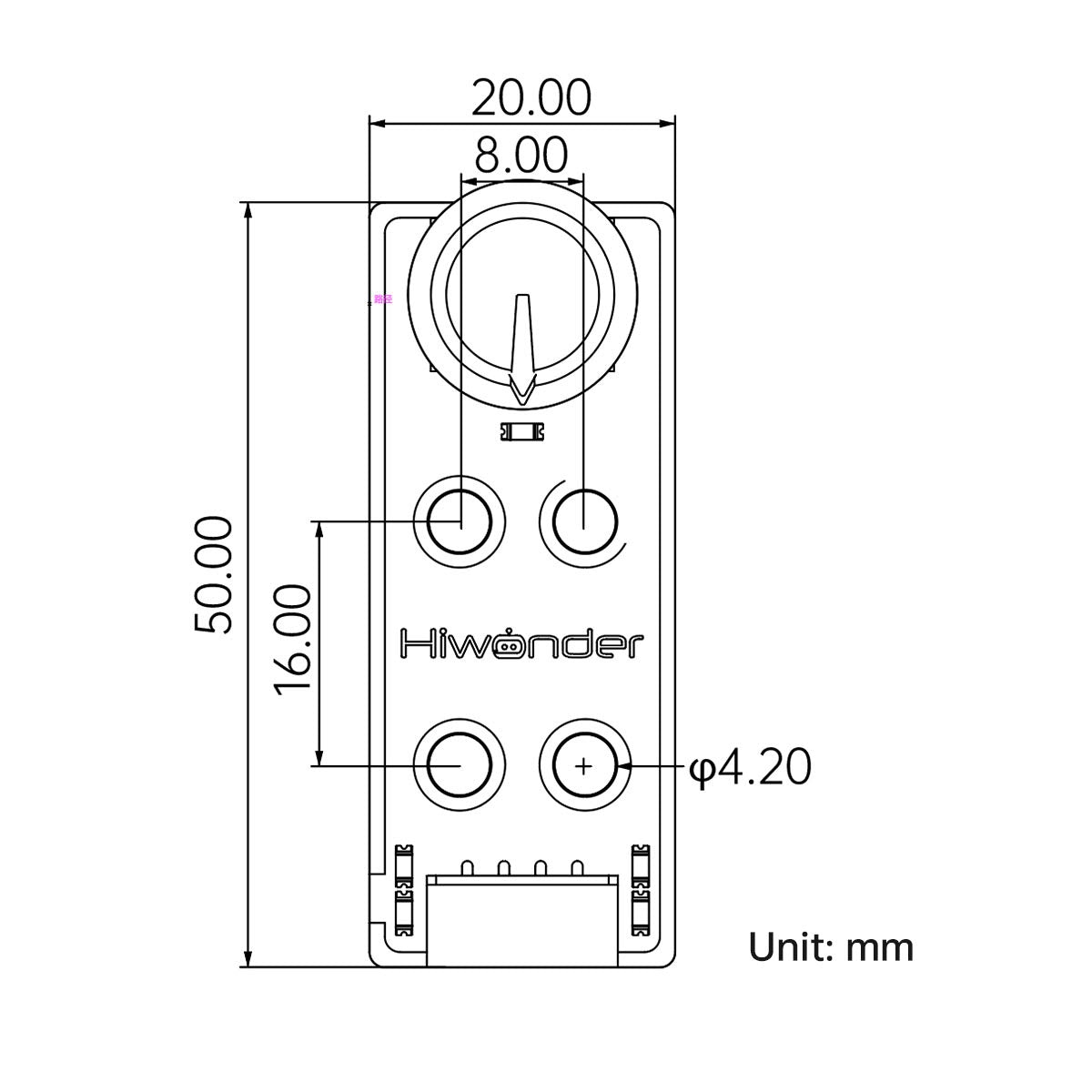

Dimensional Diagram
| Size | 50 × 20mm |
| Working voltage | DC 5V |
| Working current | 5mA |
| Port type | 5264-4AW |
| PWR | lighting up after supplying power |
Product Parameters
Support Multiple Controller/Expansion Boards

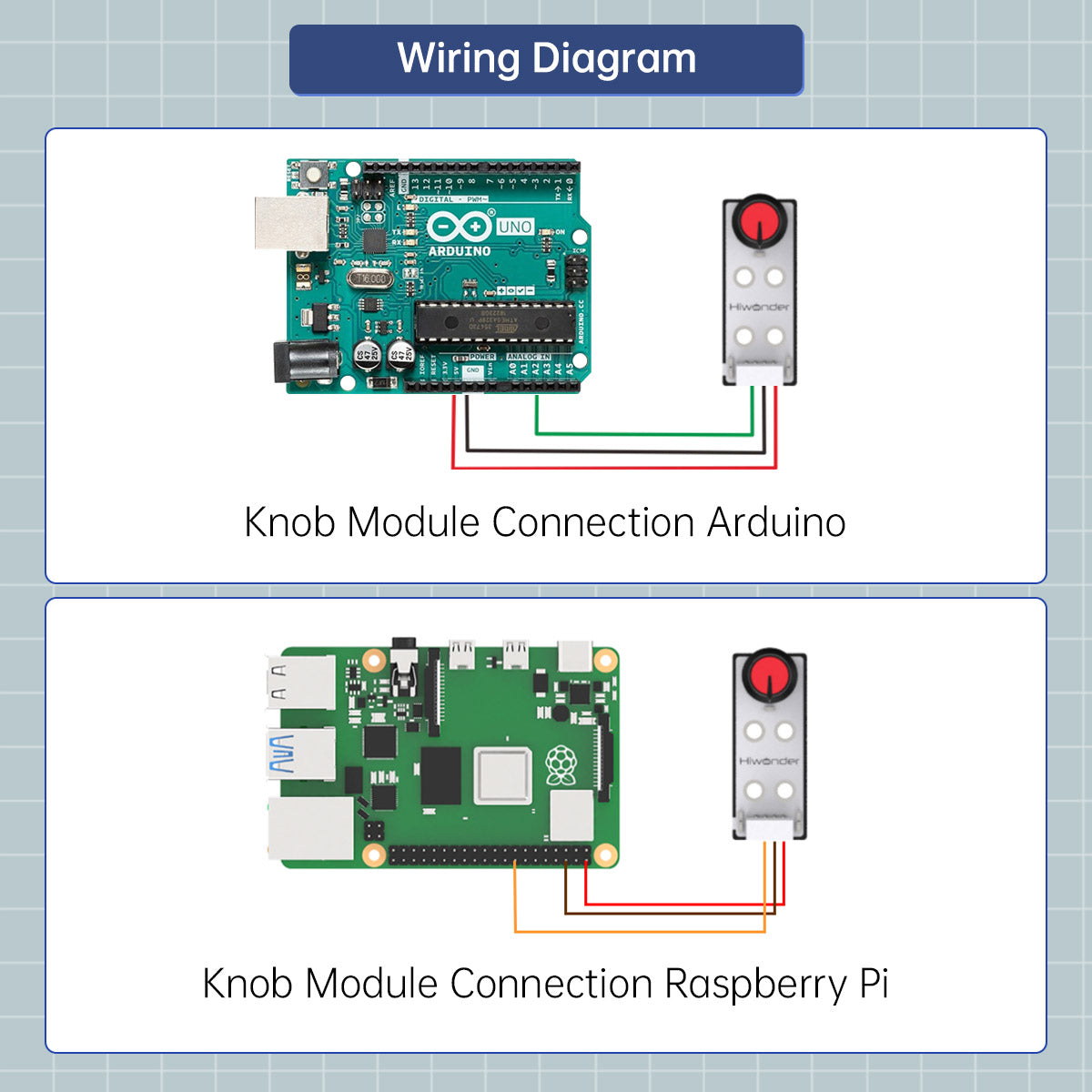

Knob Module Connection Arduino
Knob Module Connection Raspberry Pi

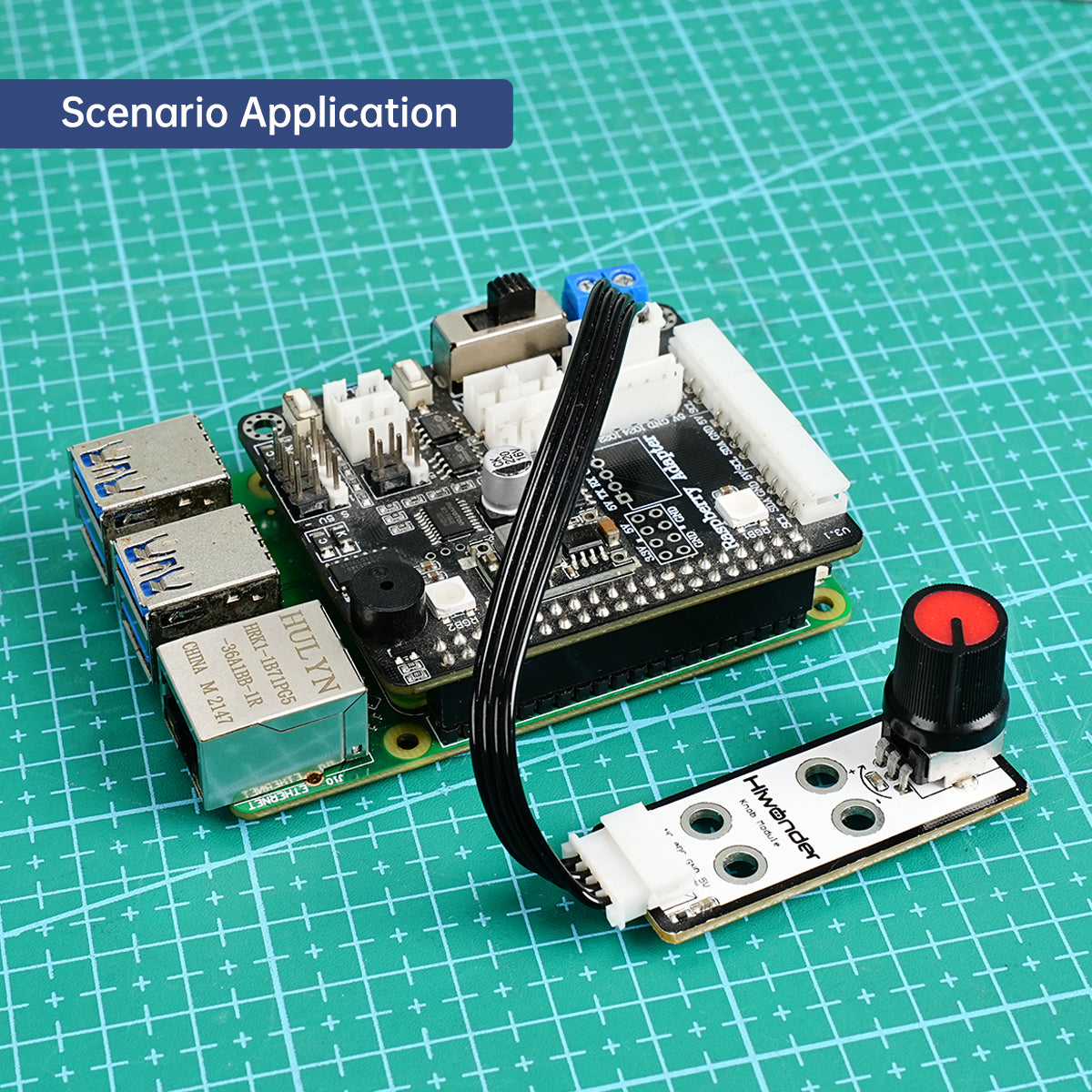

Scenario Application
| Item | Specification |
| Size | 50 * 20mm |
| Working voltage | DC 5V |
| Working current | 5mA |
| Port type | 5264-4AW |
| PWR | Lighting up after supplying power |
