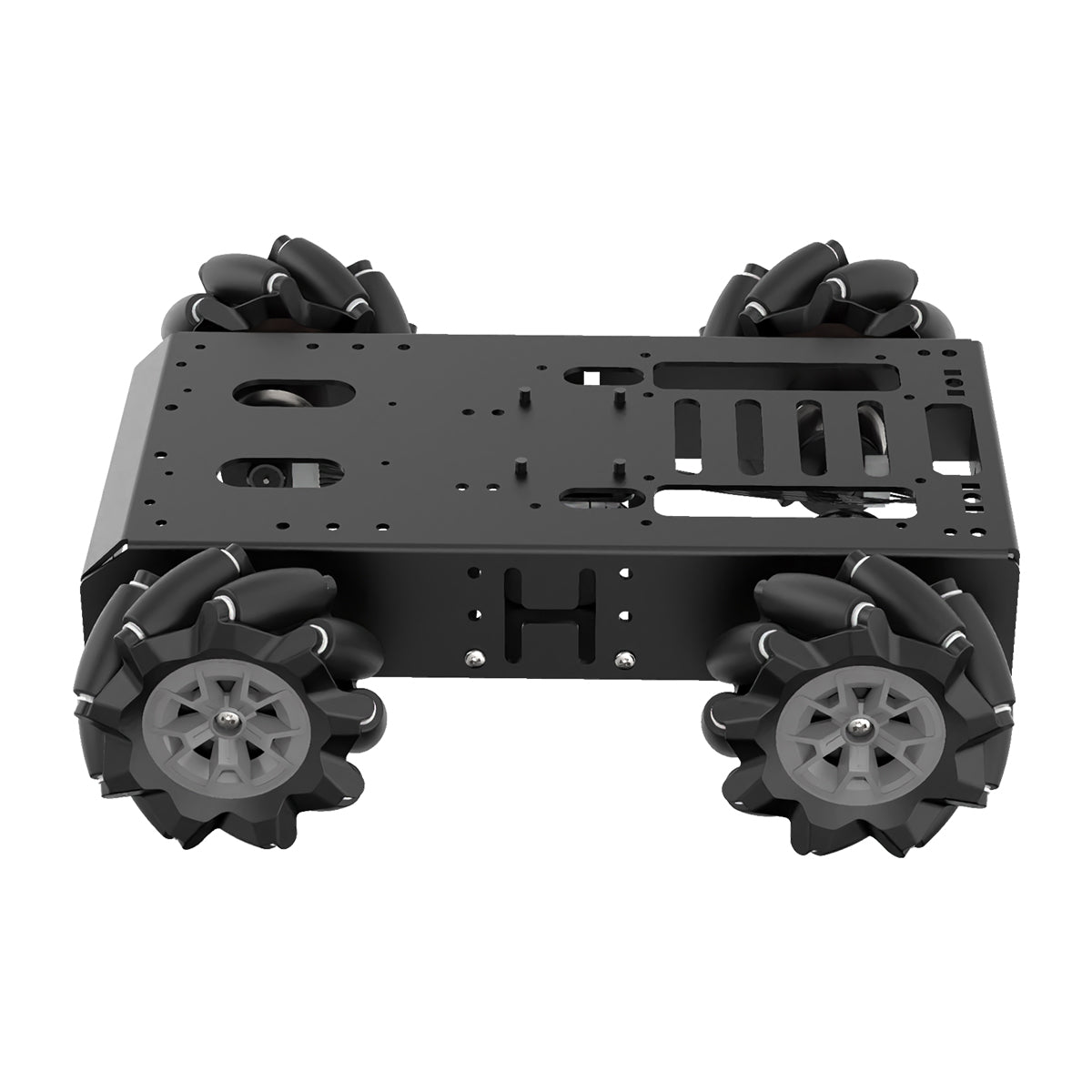

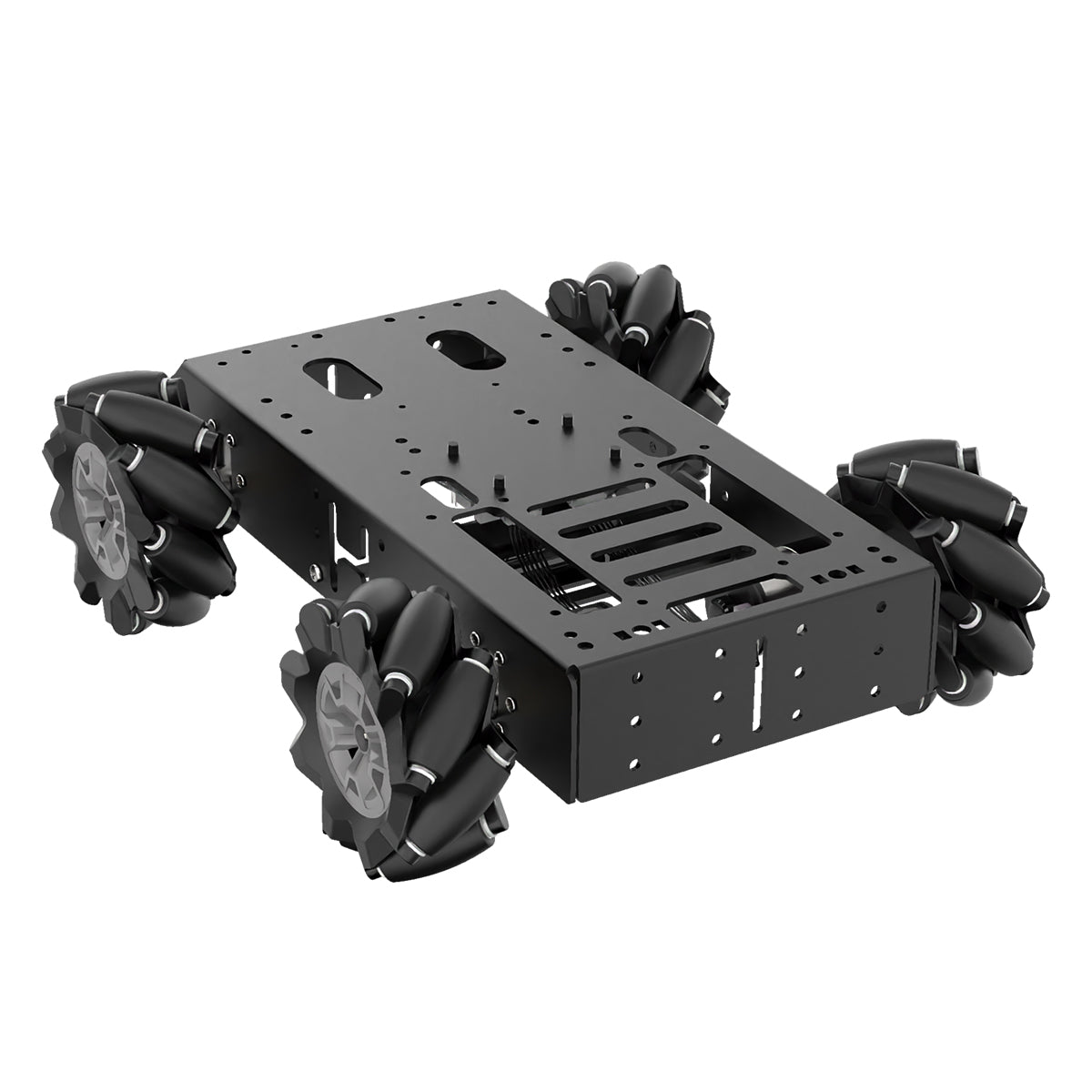

Hiwonder Large Metal 4WD Vehicle Chassis for Arduino/Raspberry Pi/ROS Robot with 8V Encoder Geared Motor

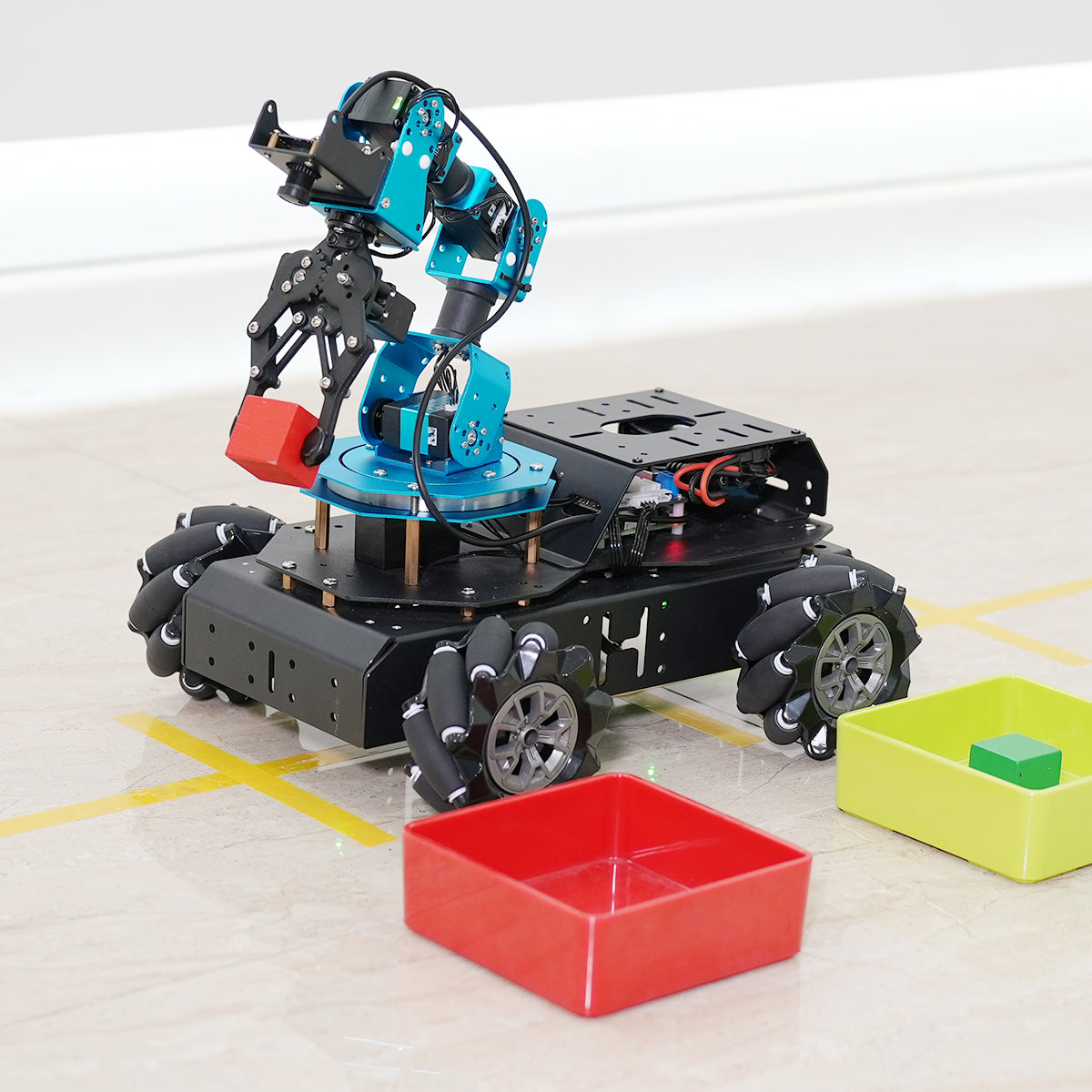

- Compatible with ArmPi FPV robotic arm, various sensors, modules and controllers
- Nice damping effect with 8V encoder geared motors
- Encoder geared motors and wheels contribute to flexible movement
- Strong and durable high-strength aluminum alloy chassis
The 4WD mecanum wheel car chassis features universal wheels, which can move in any direction and run perfectly in narrow spaces and on rough ground. All-black outlook makes your robot different and stronger!

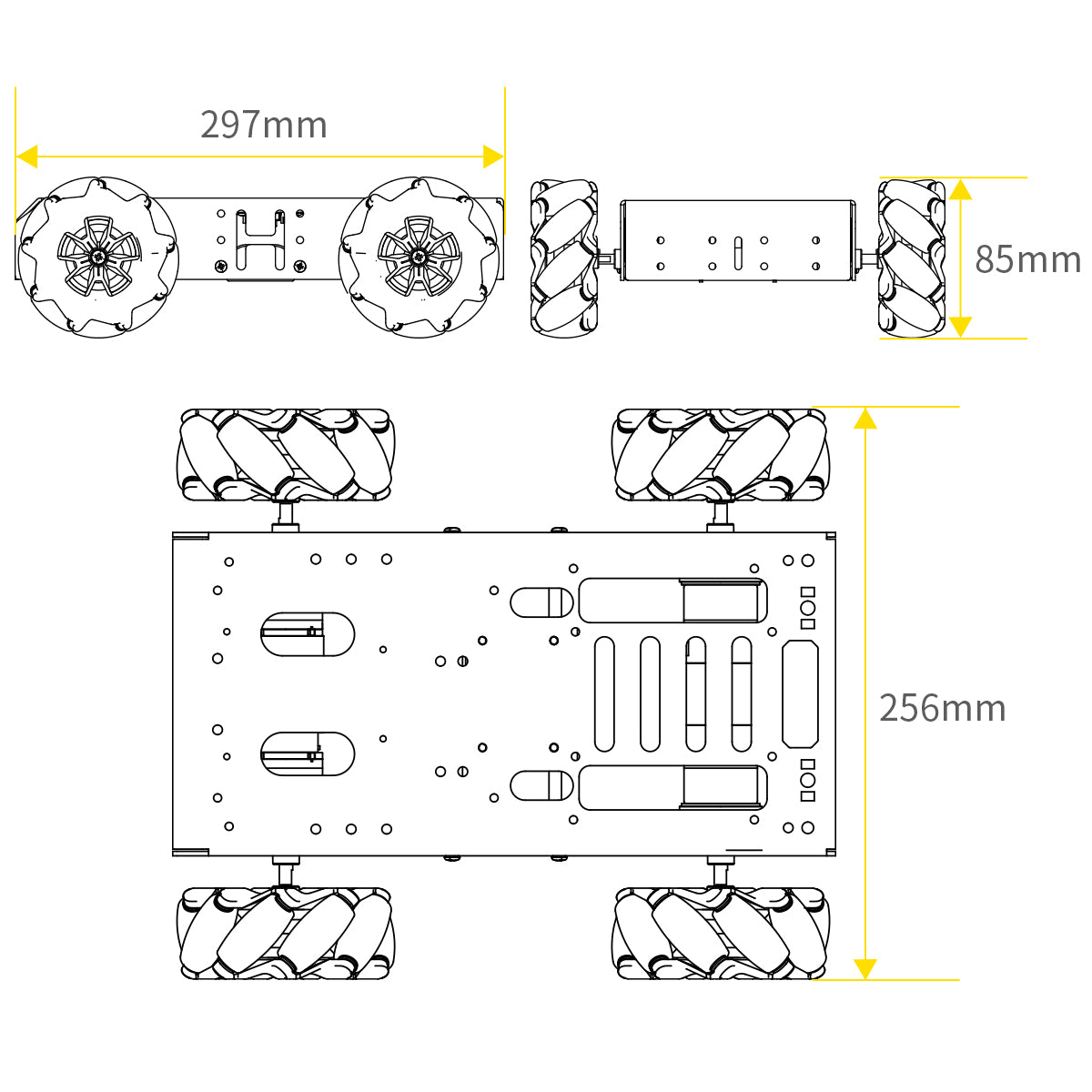

- Size: 300*245*100mm
- Weight: 1.9kg
- Material: aluminum alloy
- Working voltage: 6 - 8V
- Motor: 8V encoder geared motor
- Motor no-load speed: 110RPM

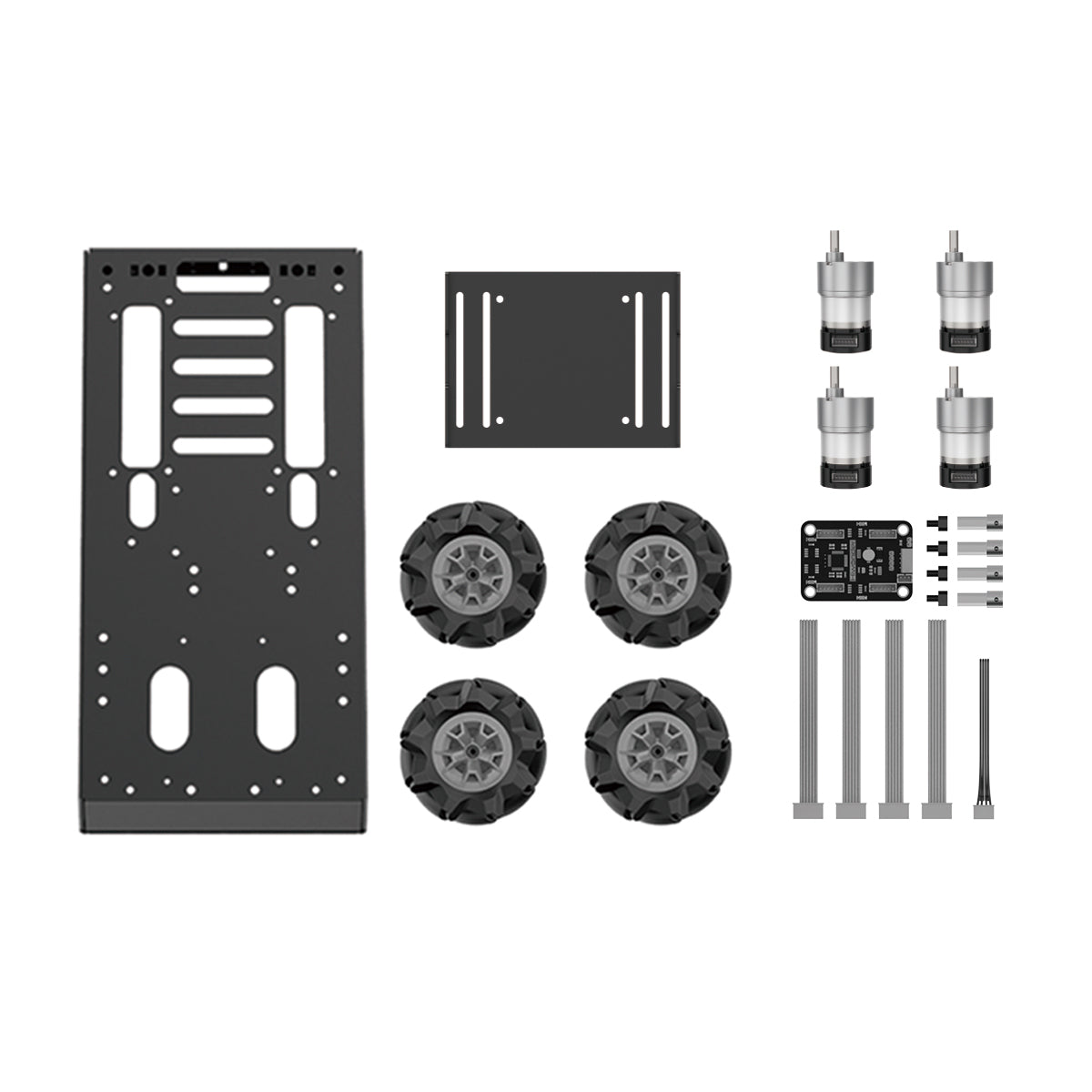

1* battery fixing plate
1* controller board
4* mecanuam wheel
4* 8V encoder motor
4* wheel coupling
1* 3pin wire
1* screw pack
| Item | Specification |
| Product size | 300*245*100mm |
| Product weight | 1.9kg |
| Material | aluminum alloy |
| Working voltage | 6 - 8V |
| Motor | 8V encoder geared motor |
| Motor no-load speed | 110RPM |
| Package weight | 2.1kg |
| Package size | 350*310*110mm |
Questions & Answers
Have a Question?
-
How can I exactly work with the motors that come with this chasis? the driver module documentation doesnt make this clear? I'm trying to run a script you provided in one of your tutorials (https://drive.google.com/drive/folders/1-9GYo6nsq64W88wAWt7O2quwI3KelPLT) but it doesnt work apparently because the configurations in the code are for different motor. I'm using raspberry pi 5
Hello,
Please refer to this tutorial: https://drive.google.com/drive/folders/1-aBIolG3vGxMVKLBE04bM5jYxpHAAFbT?usp=sharing
-
do you have a programming guide and data sheet
Here is the tutorials for your reference: https://drive.google.com/drive/folders/1oJtQWOJbROHeSN3Q2NdvgV9MB0tI0uHP?usp=sharing
-
Hi, are there documentation on how to connect it with the ArmPi FPV? Are there additional software for controlling the wheels?
Please refer to this: https://drive.google.com/drive/folders/10NLUhhyuklmxUWbsgCAfTTpTEePwA837?usp=drive_link
-
Can we program the vehicle to move? If so how? I have the arm mini piece from hiwonder which has a raspberry pi built into.
Yes, the vehicle can be programmed to move. Maybe ArmPi mini is too small to put it on this vehicle chassis:(
-
Can the vehicle be controlled remotely and programatically?
Yes. It is compatible with Arduino and STM32
