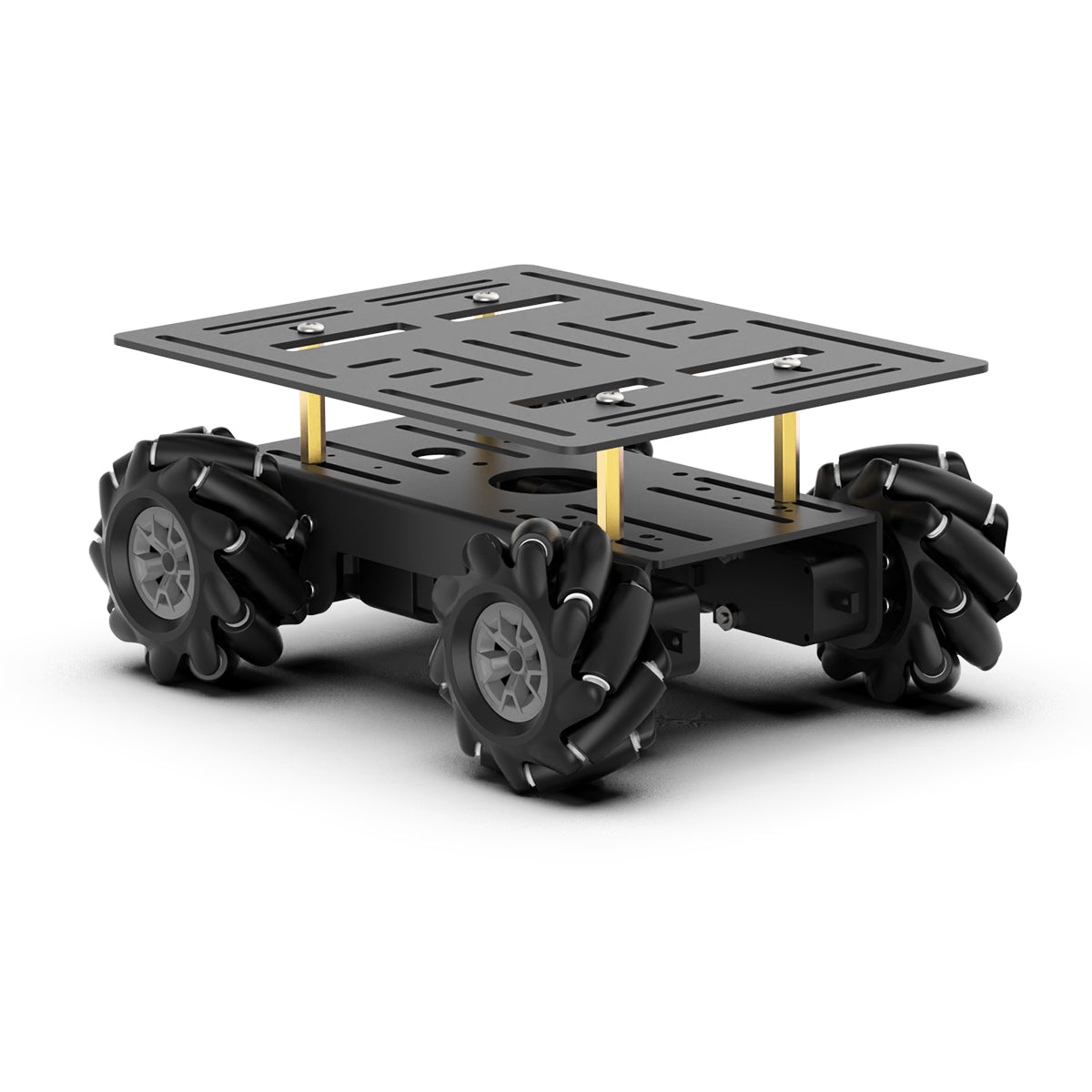

- Mecanum wheel chassis car kit use the latest mecanum wheels for movement. The 4WD mecanum wheel car chassis is universal wheel, it can move in any direction. And works well for marrow spaces and rough group.

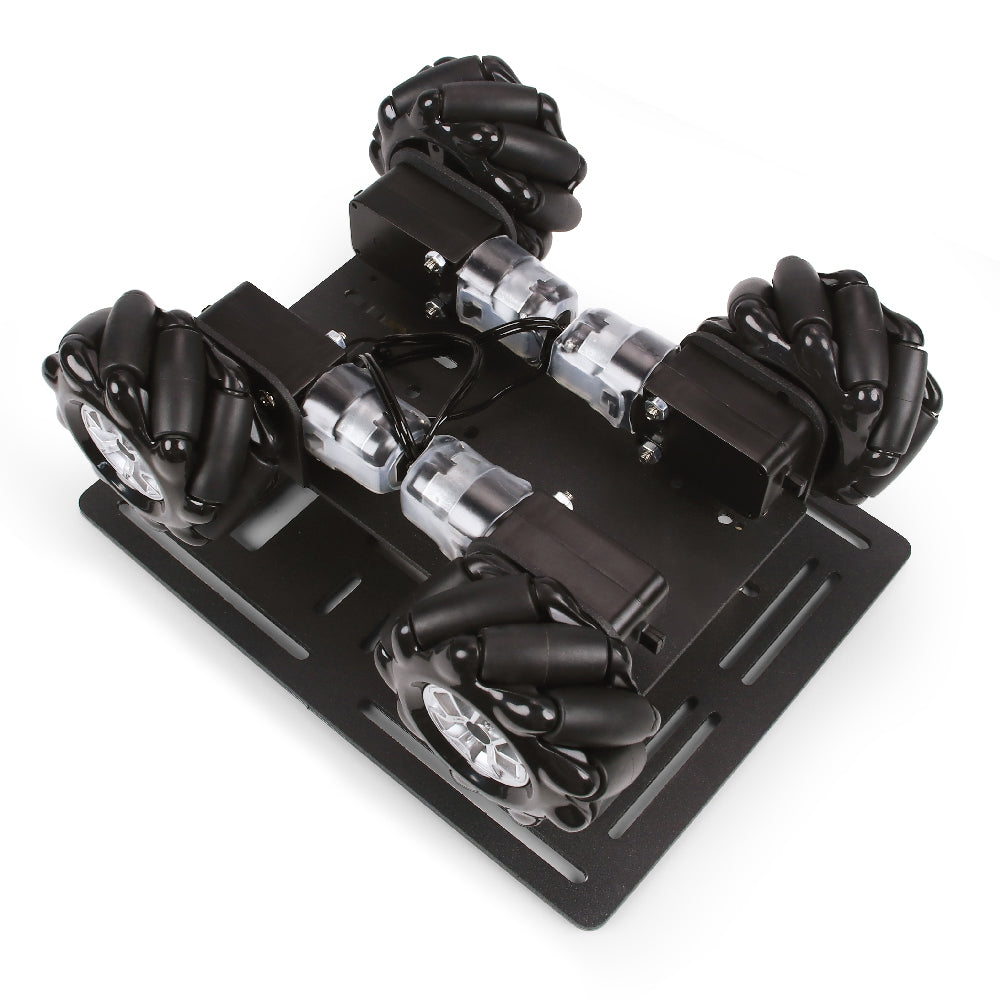

- Mecanum wheel chassis car kit with four TT motors, the ratio of the motor is 1:120, output voltage 3-6V and output 120-240RPM. Compared with the ordinary car, the torque is stronger, and the load capacity is greater!
- Mecanum wheel chassis car contains the aluminum alloy brackets, size: 180 * 140 * 89MM can load 1500g. The mecanum wheel is made of high hardness plastic, with low noise, not easy to damage and deformation, and longer service life.
- Mecanum wheel chassis car is DIY kit, and suitable for robot lovers.At the same time, it can expand electronic system such as Raspberry Pi or Arduino to achieve more creativity.

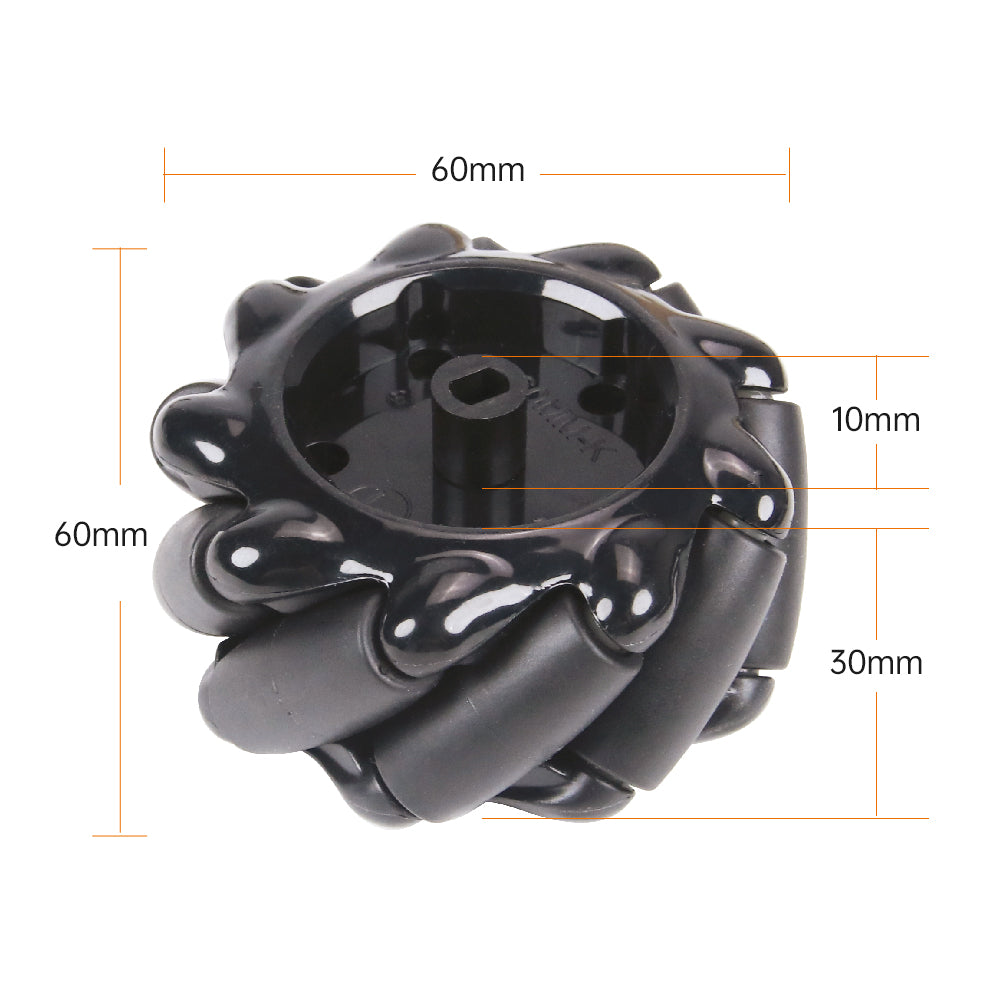

Mecanum Wheels
The mecanum wheel has compact structure and flexible movement. Assembling the trolley with four wheels can allow the trolley to achieve full lateral movement more flexibly and conveniently.
Aluminum Alloy Material
The trolley chassis is made of hard aluminum alloy, which is strong and durable.

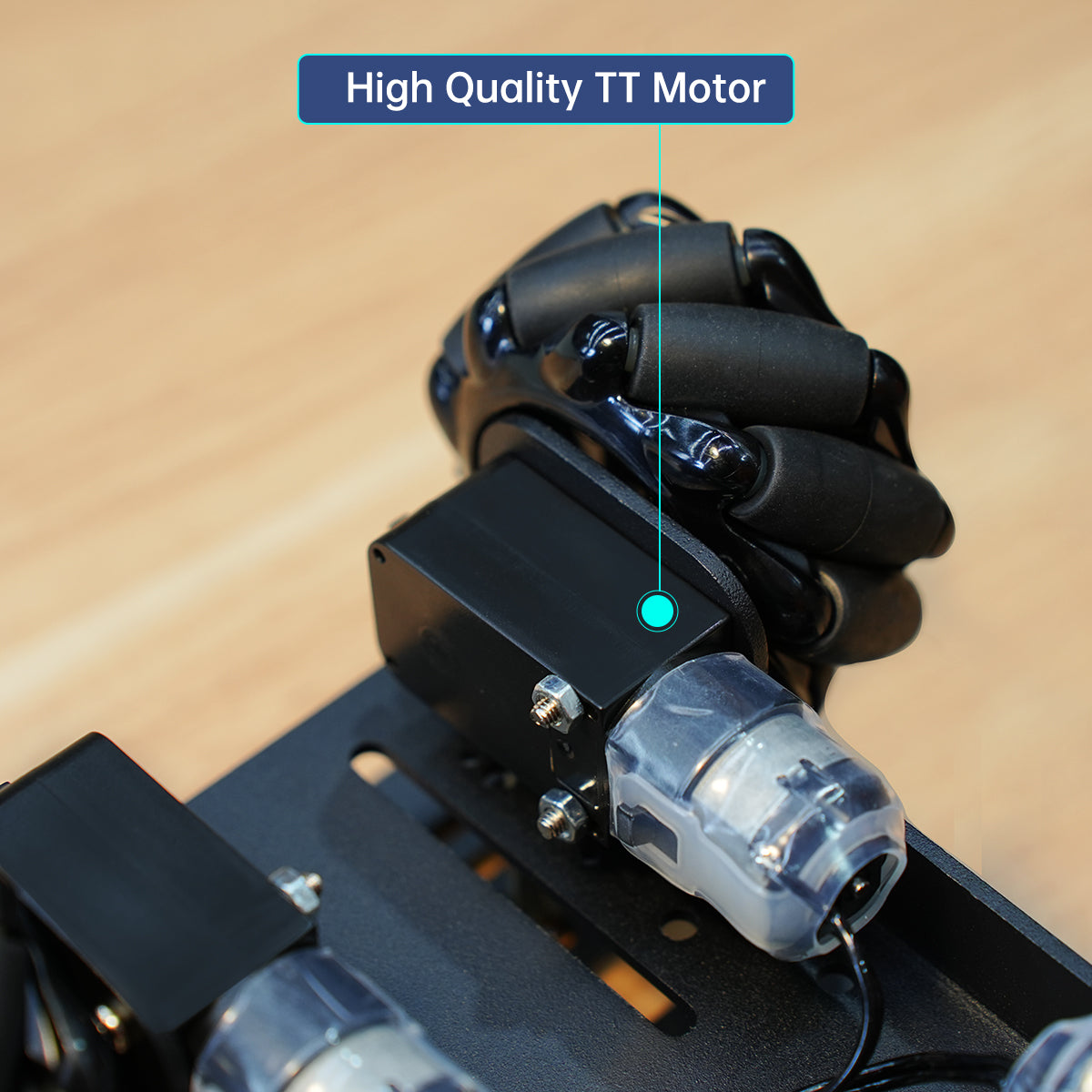

High-quality TT Motor
The chassis is equipped with four high-quality carbon brush motors with strong magnetism, high strength and anti-interference.

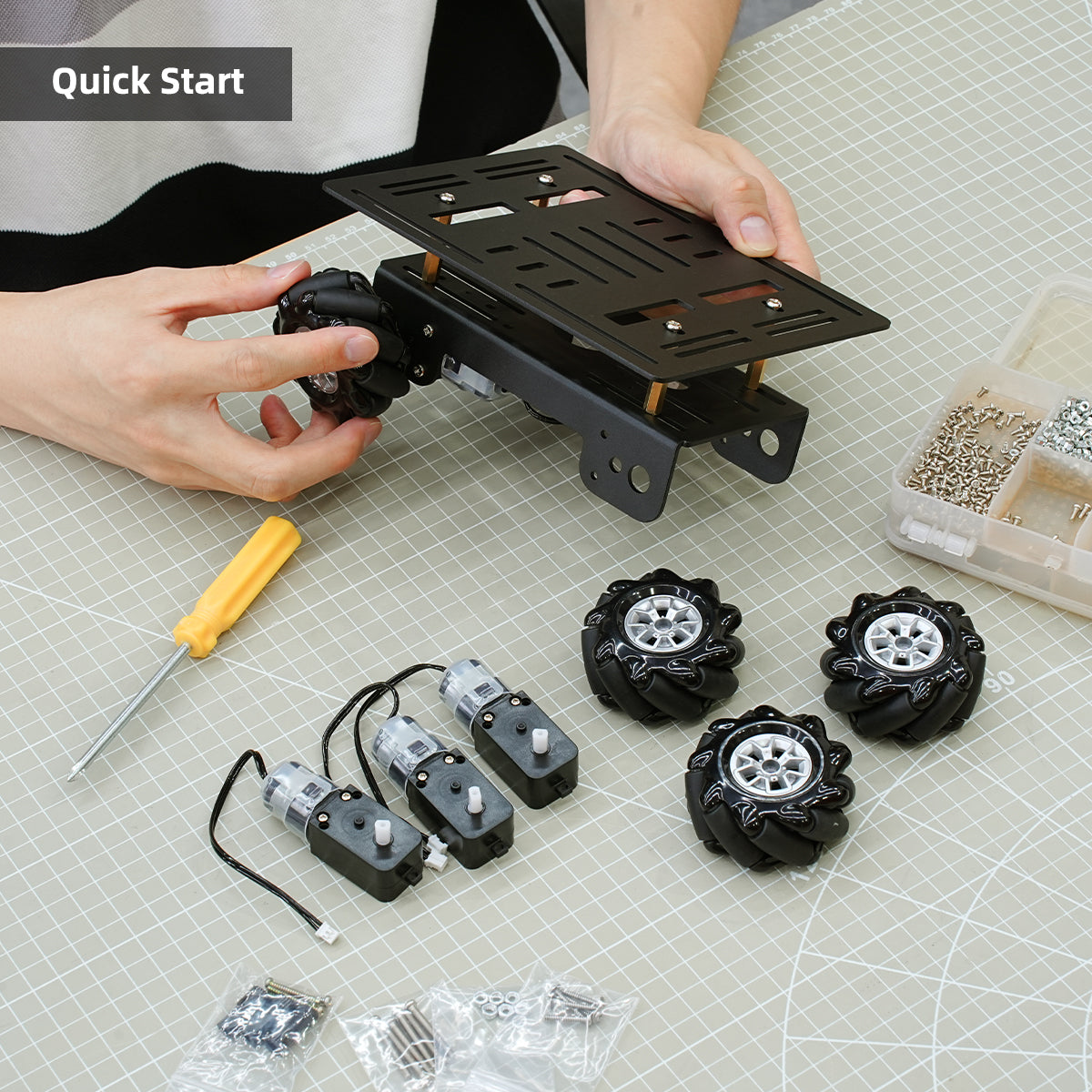

Product List
4WD Car Chassis*1
Extension bracket*1
Mecanum wheels*4
TT motor*4
TT motor coupling*4
M4*32 copper pillar*4
M2.3*16 tapping screw*4
Round head cross machine teeth*4
M3 nut*8
M4*8 round head machine screw*8
M3*25 round head machine screw*8
Parameter
- Product weight: 0.5kg
- Motor voltage: 3V-6V

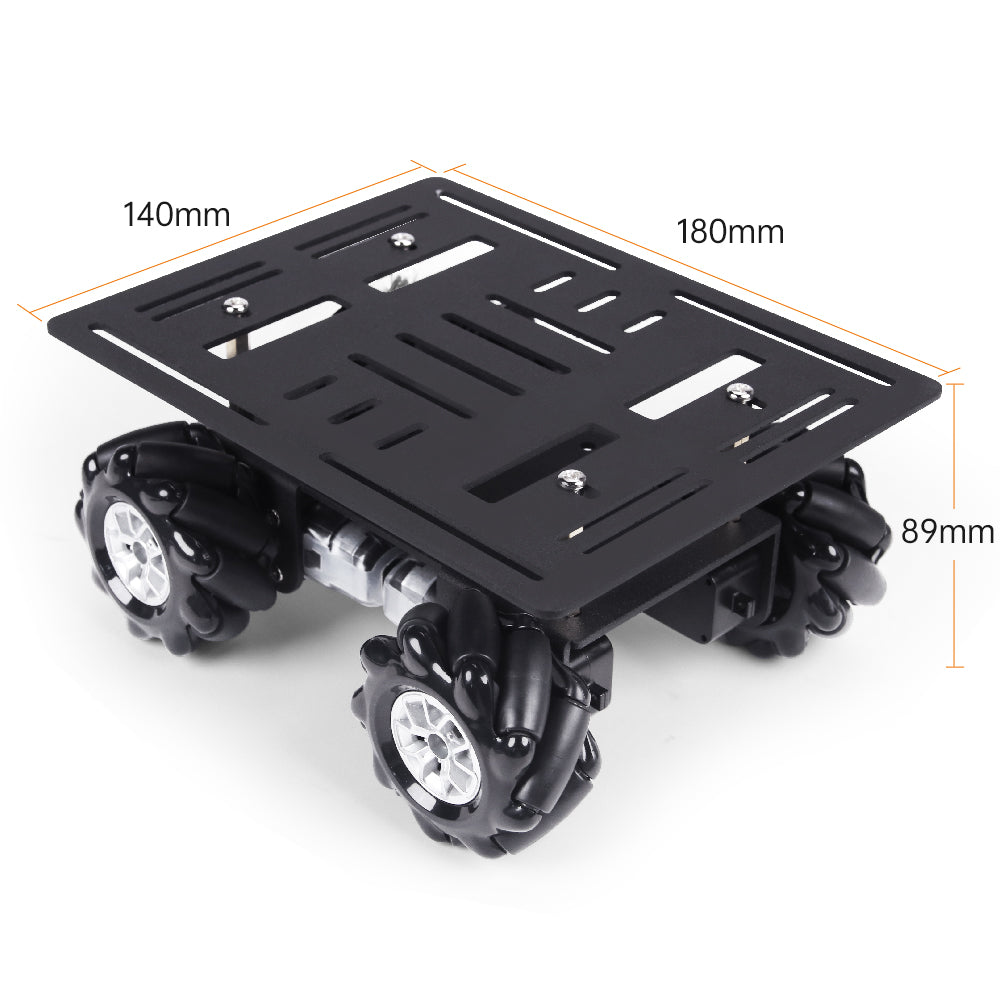

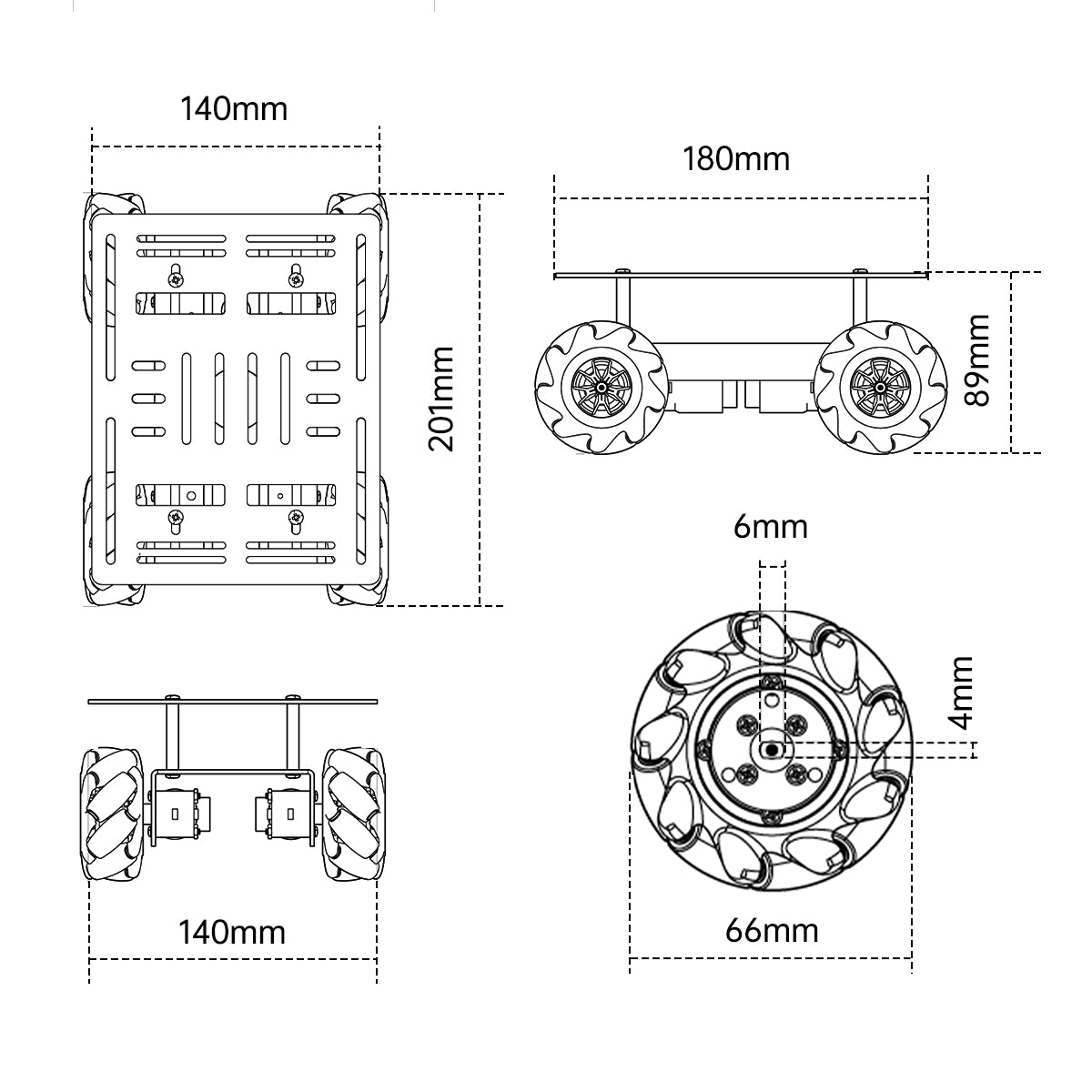

- Product size: 180*140*89mm
- Motor ratio: 1:120
- Chassis material: Aluminum alloy
- Tire diameter: 66mm
- Tire material: Engineering plastics
Reserved Expansion Holes
The body has a large number installation holes, which is convenient for users to expand.

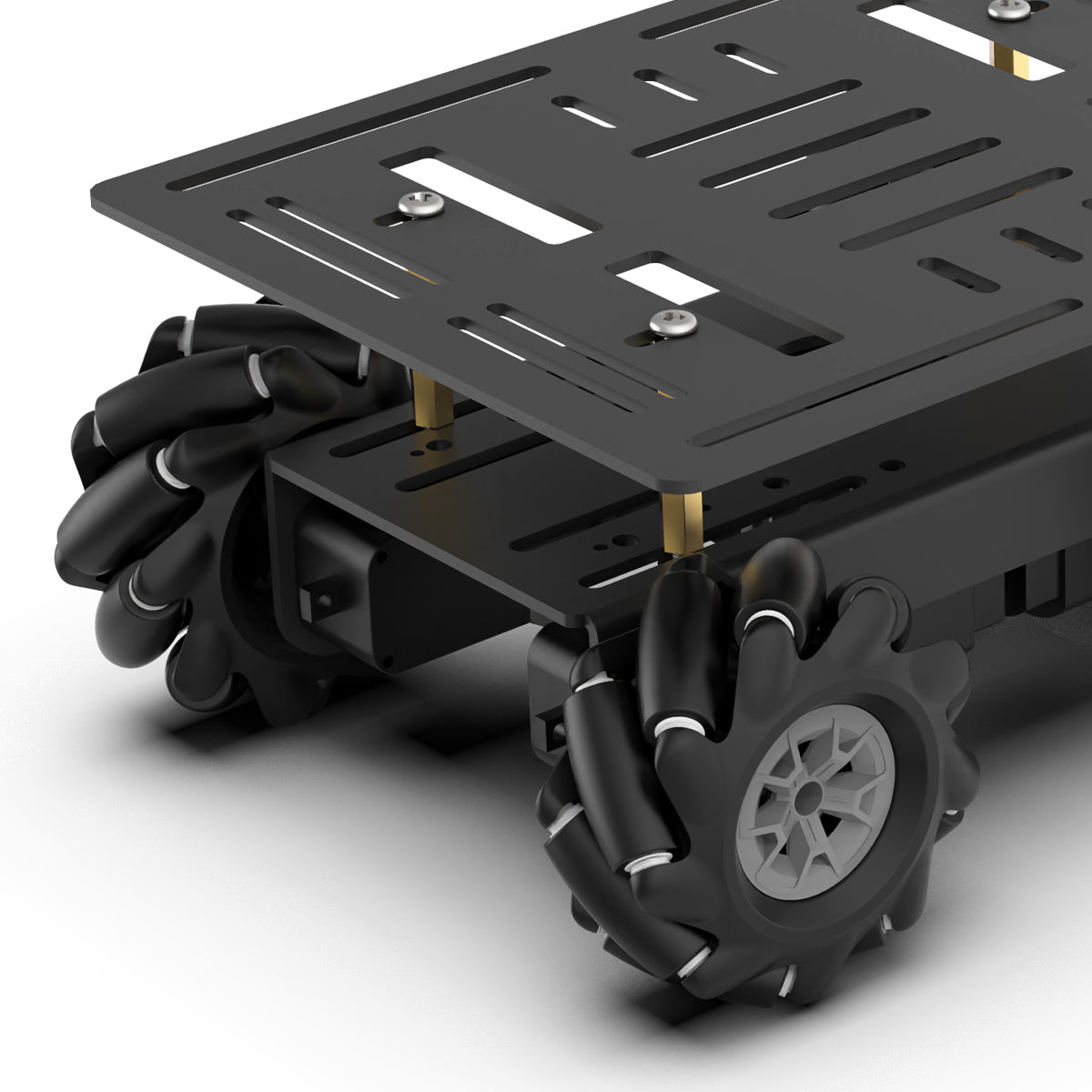

Double Layer Design
The chassis has double layers of space, which can be disassembled freely, and can easily install controllers, sensors, cameras, batteries and other external devices.
360° Omnidirectional Movement
The trolley chassis is equipped with four omnidirectional mecanum wheels, which can move 360°. Different motion modes (forward, horizontal, oblique, rotational) and excellent performance allow you to boldly challenge various complex routes.
| Item | Specification |
| Product weight | 0.5kg |
| Motor voltage | 3V-6V |
| Product size | 180*140*89mm |
| Motor ratio | 1:120 |
| Chassis material | Aluminum alloy |
| Tire diameter | 66mm |
| Tire material | Engineering plastics |
| Product List | 4WD Car Chassis*1 Extension bracket*1 Mecanum wheels*4 TT motor*4 TT motor coupling*4 M4*32 copper pillar*4 M2.3*16 tapping screw*4 Round head cross machine teeth*4 M3 nut*8 M4*8 round head machine screw*8 M3*25 round head machine screw*8 |
| Package weight | 0.7kg |
| Package size | 240*160*60mm |
Questions & Answers
Have a Question?
-
Hey I was wondering how much weight can this robot car could handle? Thank you
Sorry, we don't have specific data for that
