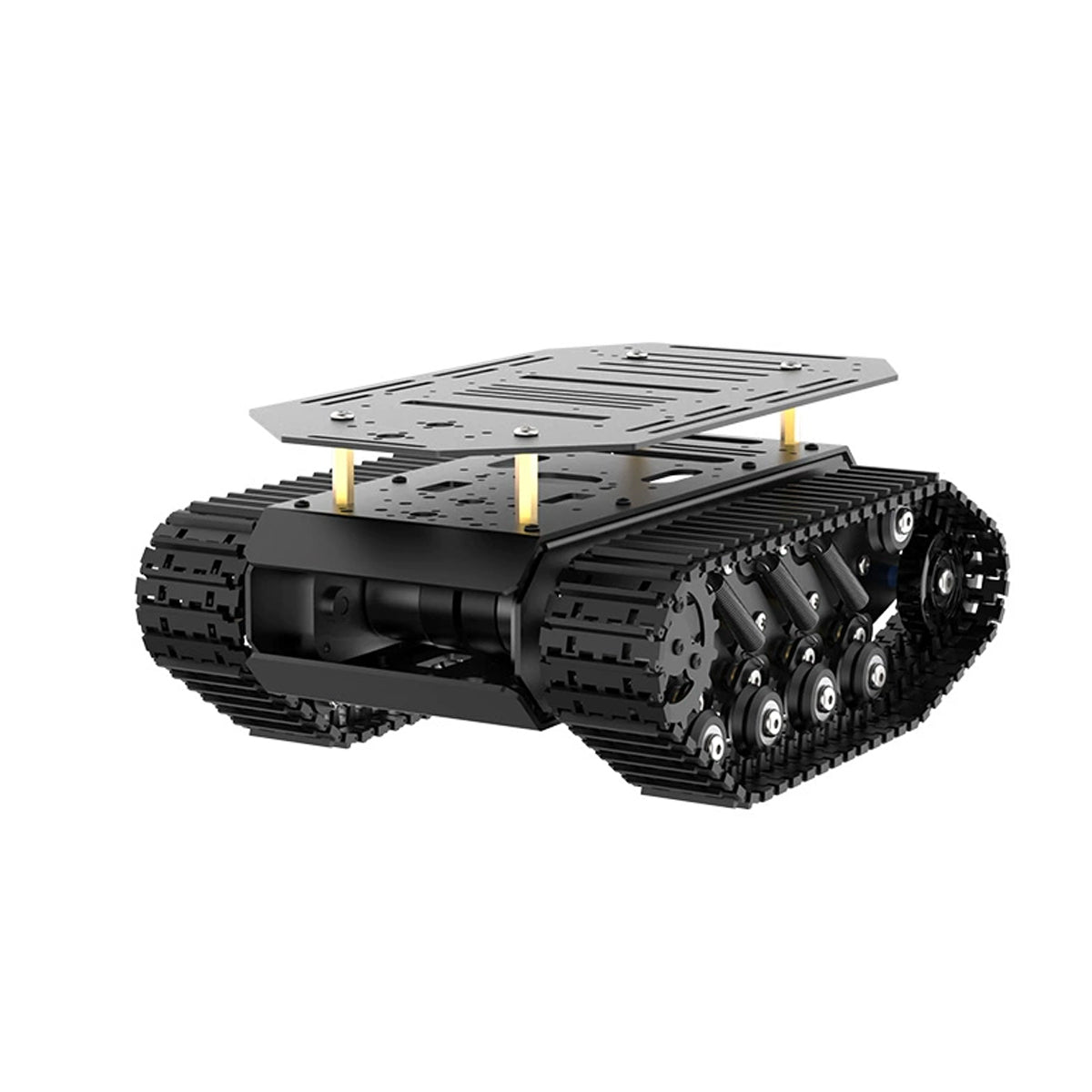

Track Chassis/ Suspension Shock Absorption Full-Metal Tank Robot Encoder Motor/ Smart Car Chassis
- 【High-quality vibration reduction effect】The chassis incorporates an 8-channel high-elasticity carbon steel tension spring and is equipped with micro bearings, ensuring agile maneuverability across diverse terrains.
- 【Strong robot tank bracket】The main body is crafted from aluminum alloy and undergoes an anodized surface treatment, resulting in an exquisite appearance.The top layer can be easily removed,facilitating DIY development.
- 【More extended functions】Bracket contain multiple expansion ports and are fully compatible with popular controllers on the market such as Jetson Nano, Raspberry Pi, Arduino ect. You also can add multiple sensors and servos to create your robot.
- 【Application】This it is perfect for hobbyists, educational, competitions and research projects. Many schools or education departments choose this car chassis for school students to learn AI robot knowledge.

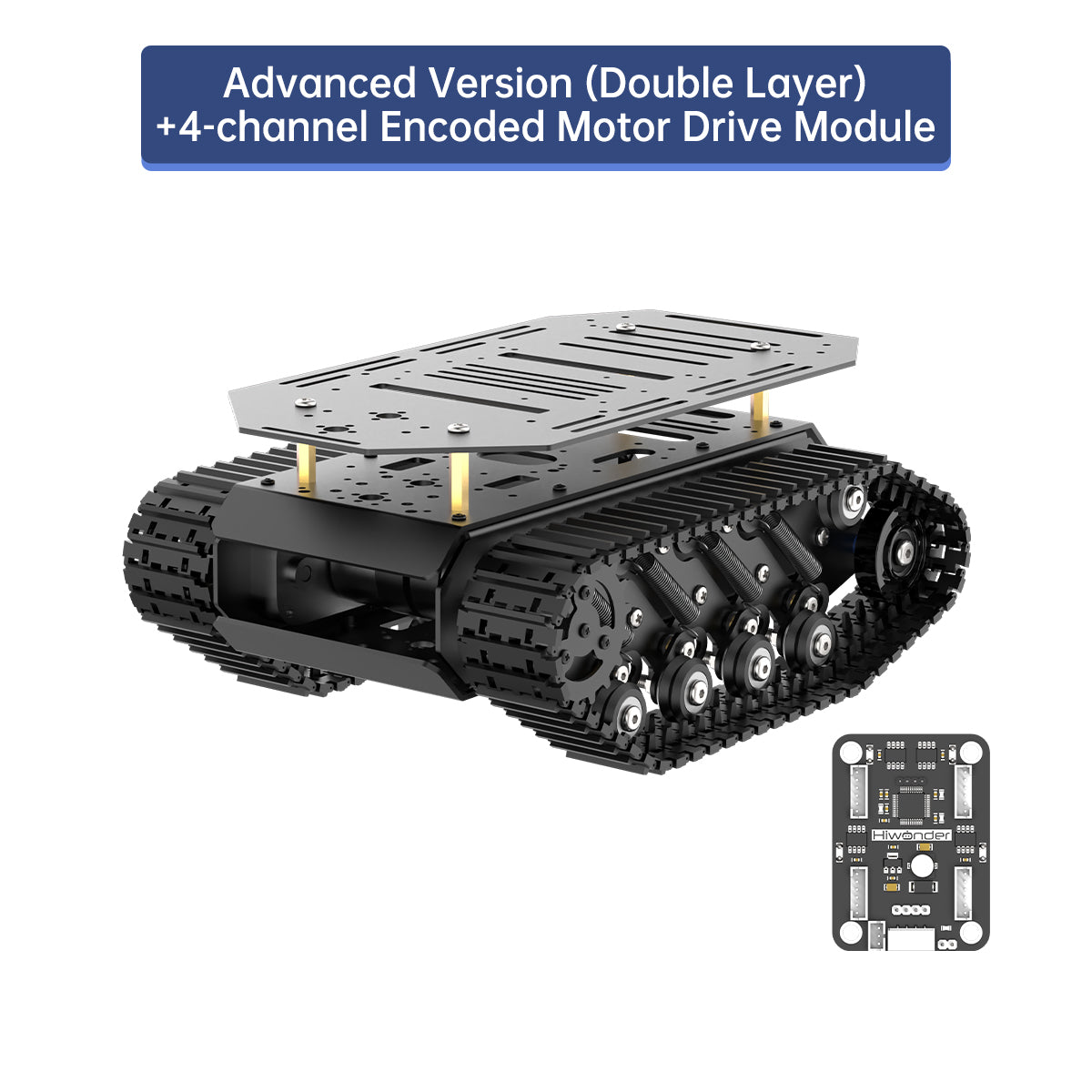

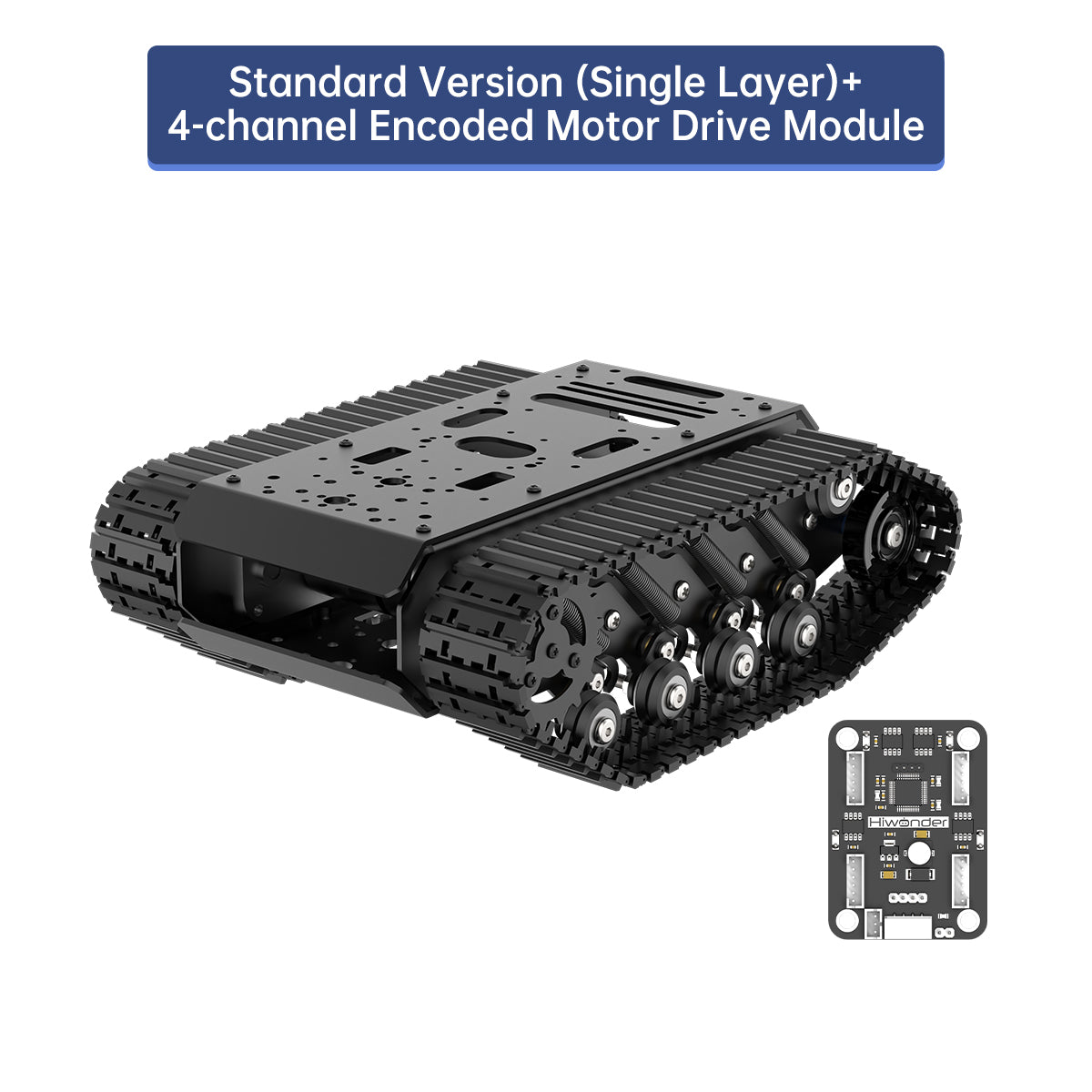

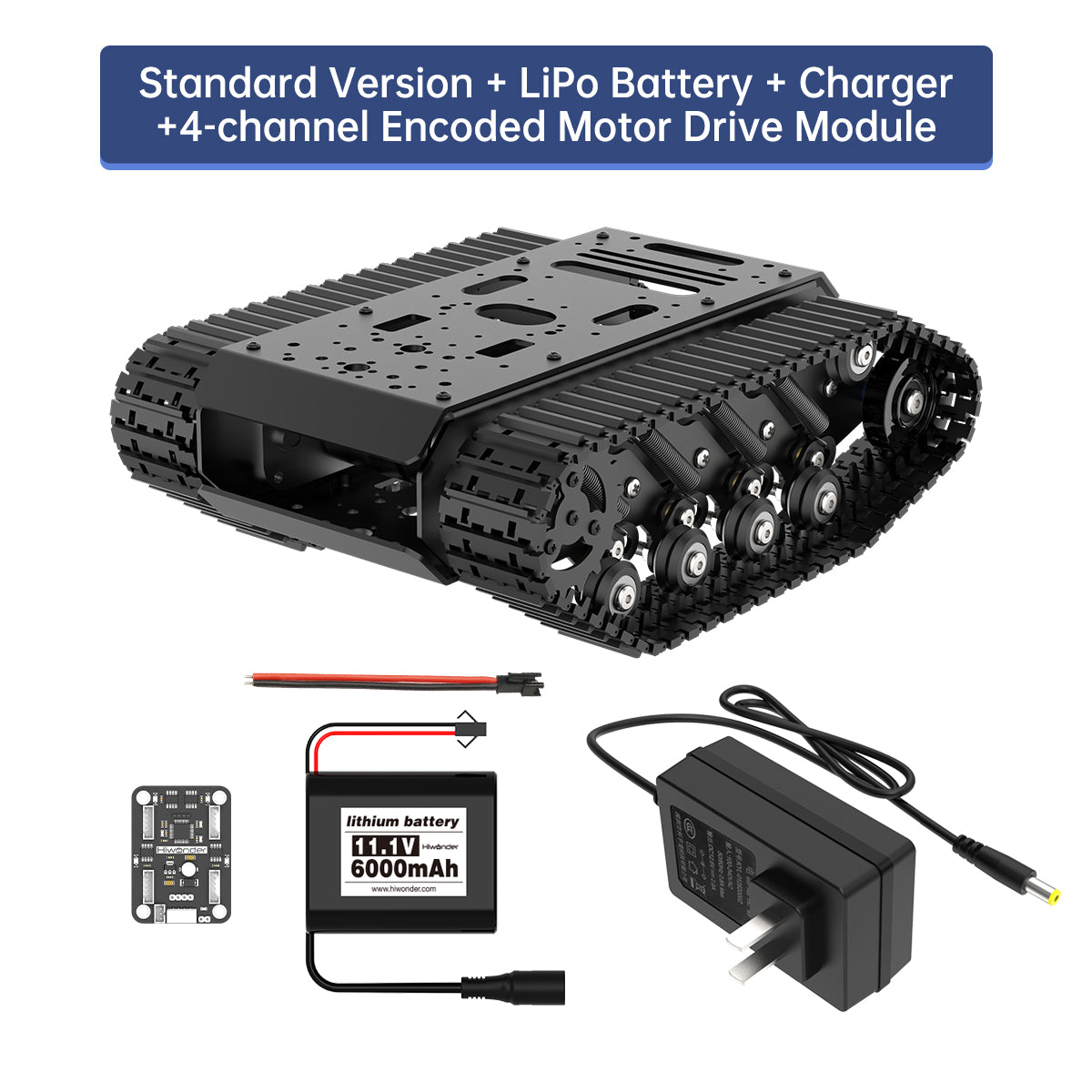

- 【Version Difference】The standard version is a single layer Track chassis; The advanced version is the double layer Track chassis.

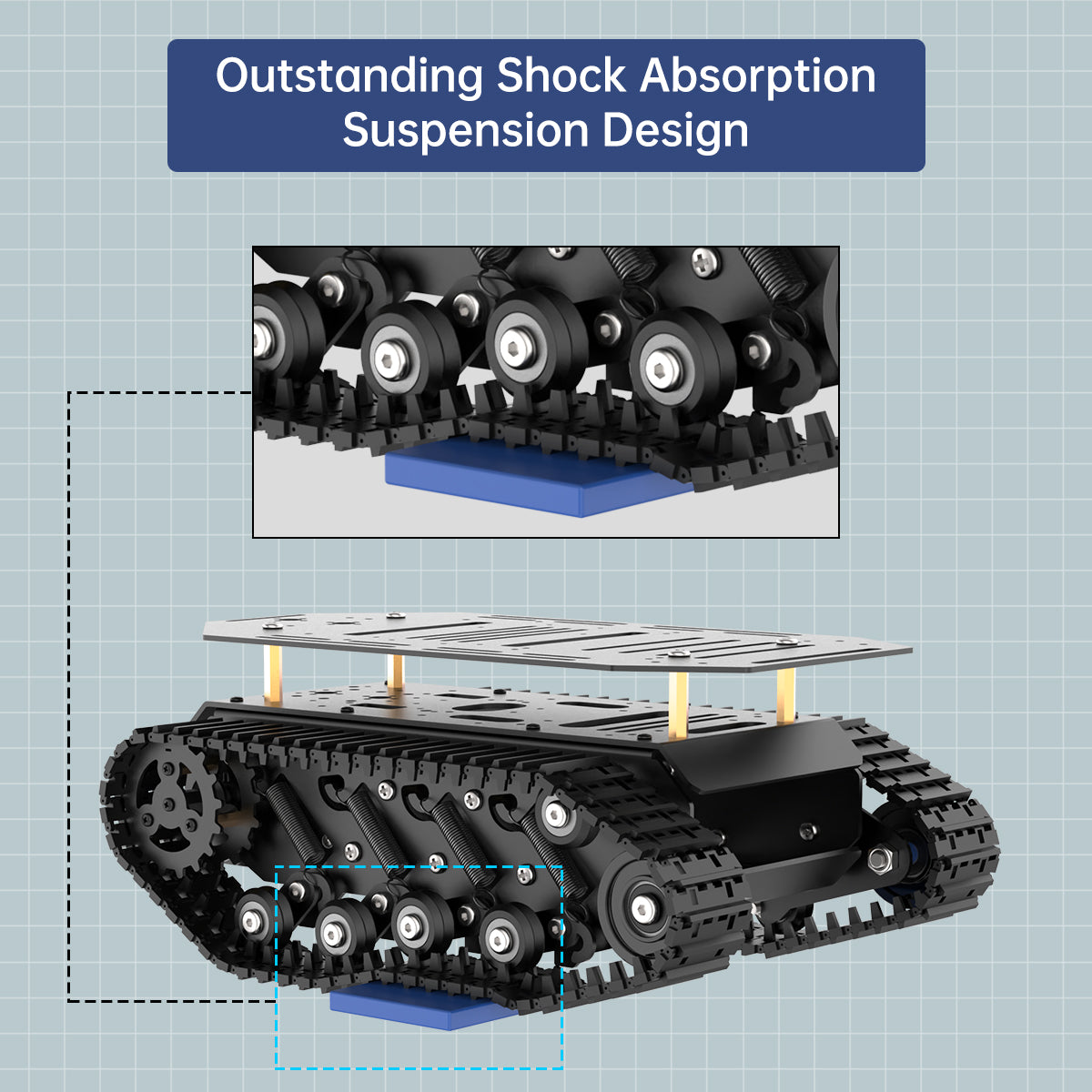

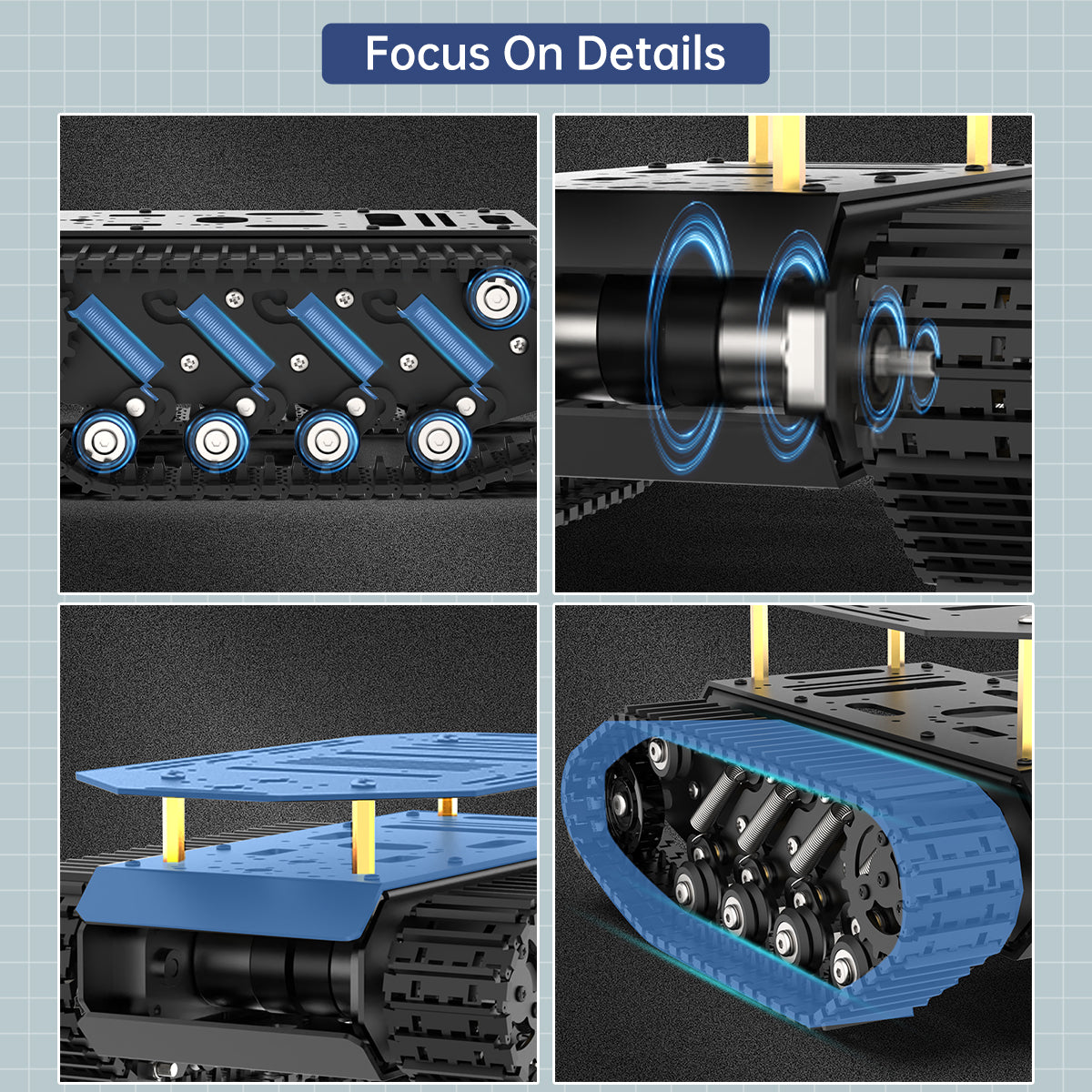

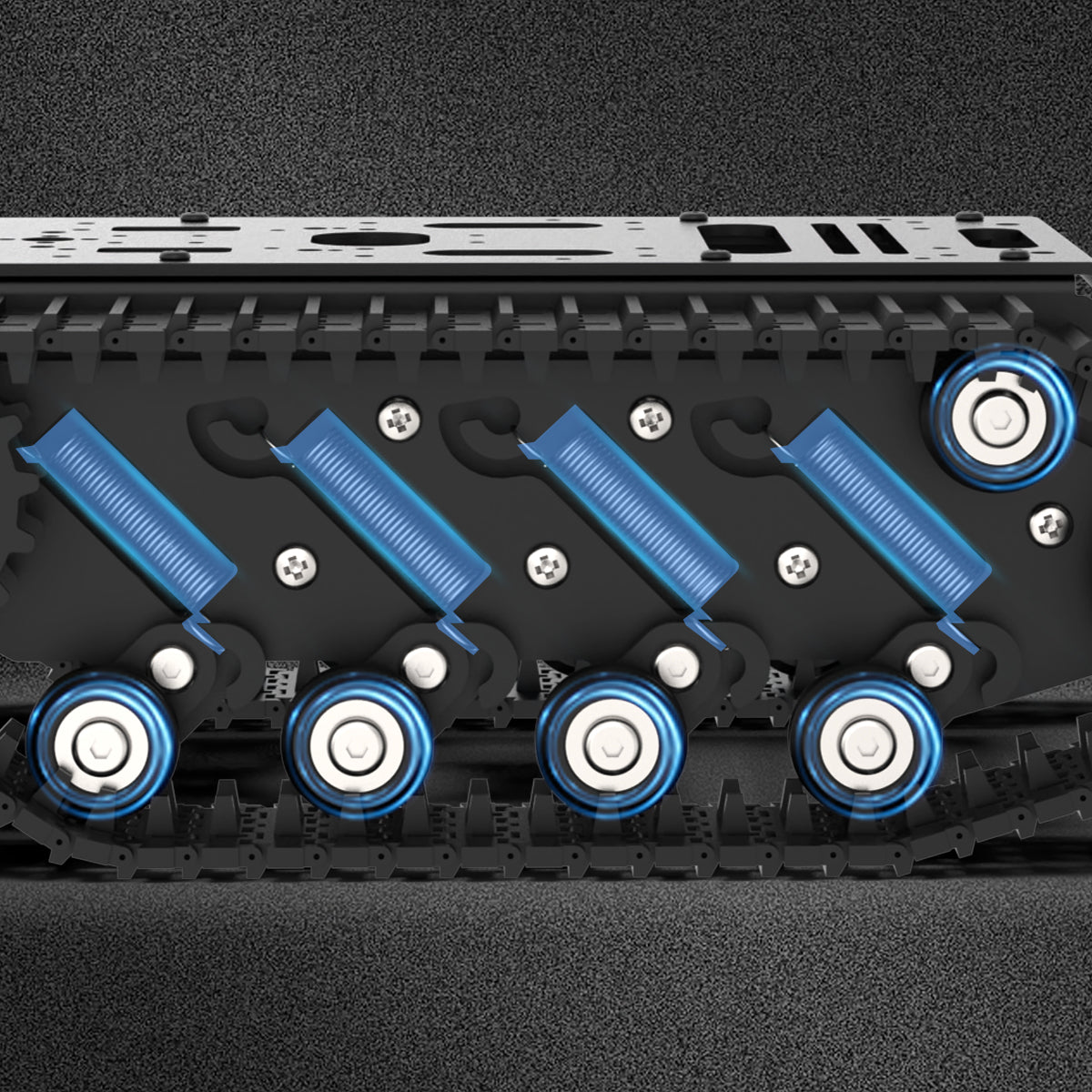

Outstanding Shock Absorption Suspension Design
It incorporates an 8-channel high-elasticity carbon steel tension spring and is equipped with micro bearings, ensuring agile maneuverability across diverse terrains.

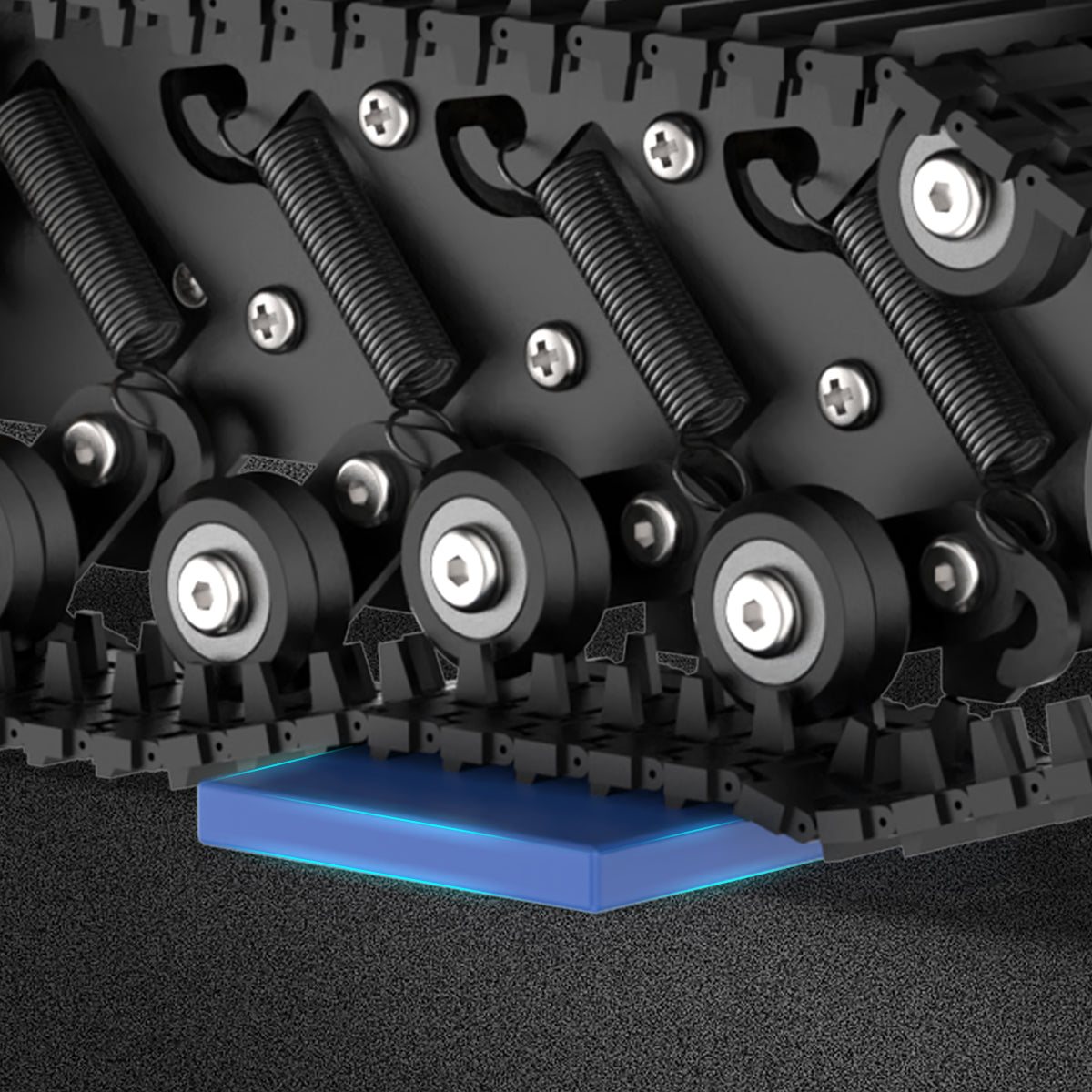

High-Elasticity Carbon Steel Tension Spring High-Durability Micro Bearings
The track chassis is not only equipped with an 8-channel high-elasticity carbon steel tension spring, but also the incorporation of high-durability micro bearings enhances the chassis's exceptional shock absorption capability.

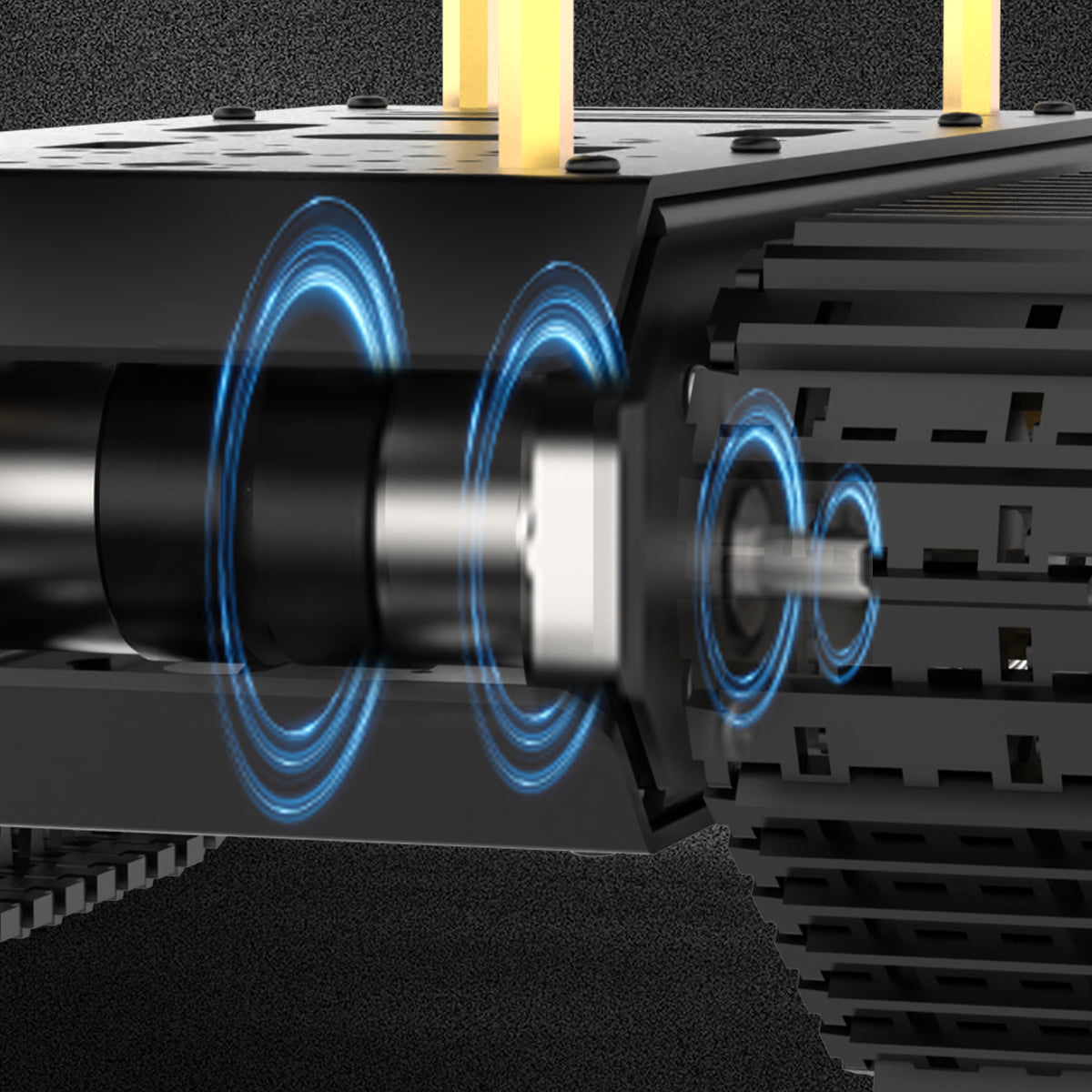

High-Performance DC Geared Motor
The chassis utilizes high-performance DC geared motors with a high-precision encoder, a rated voltage of 12V, delivering robust force, high precision, and resistance to interference.

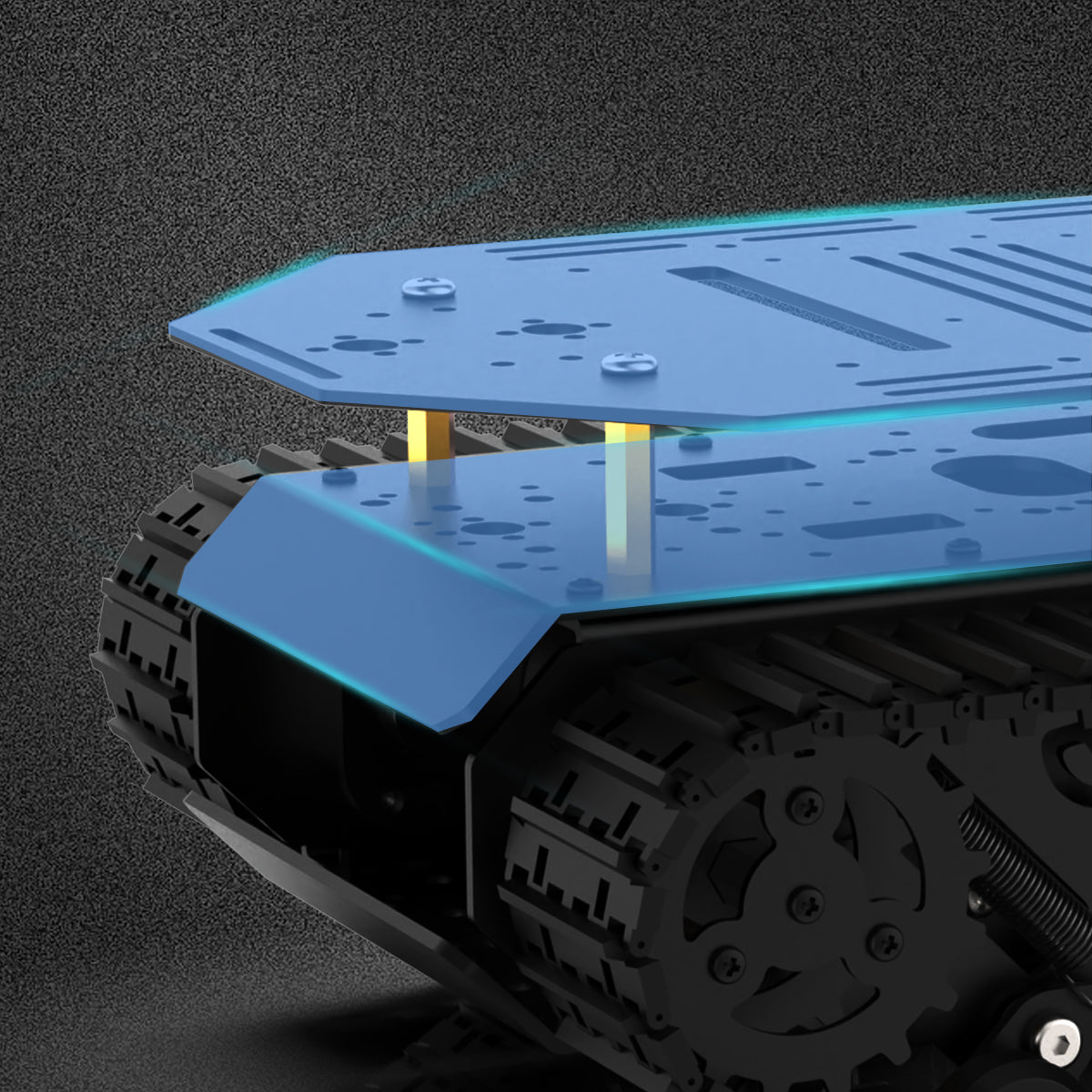

Aluminium Alloy Body
The main body is crafted from aluminum alloy and undergoes an anodized surface treatment, resulting in an exquisite appearance. The top layer can be easily removed, facilitating DIY development.

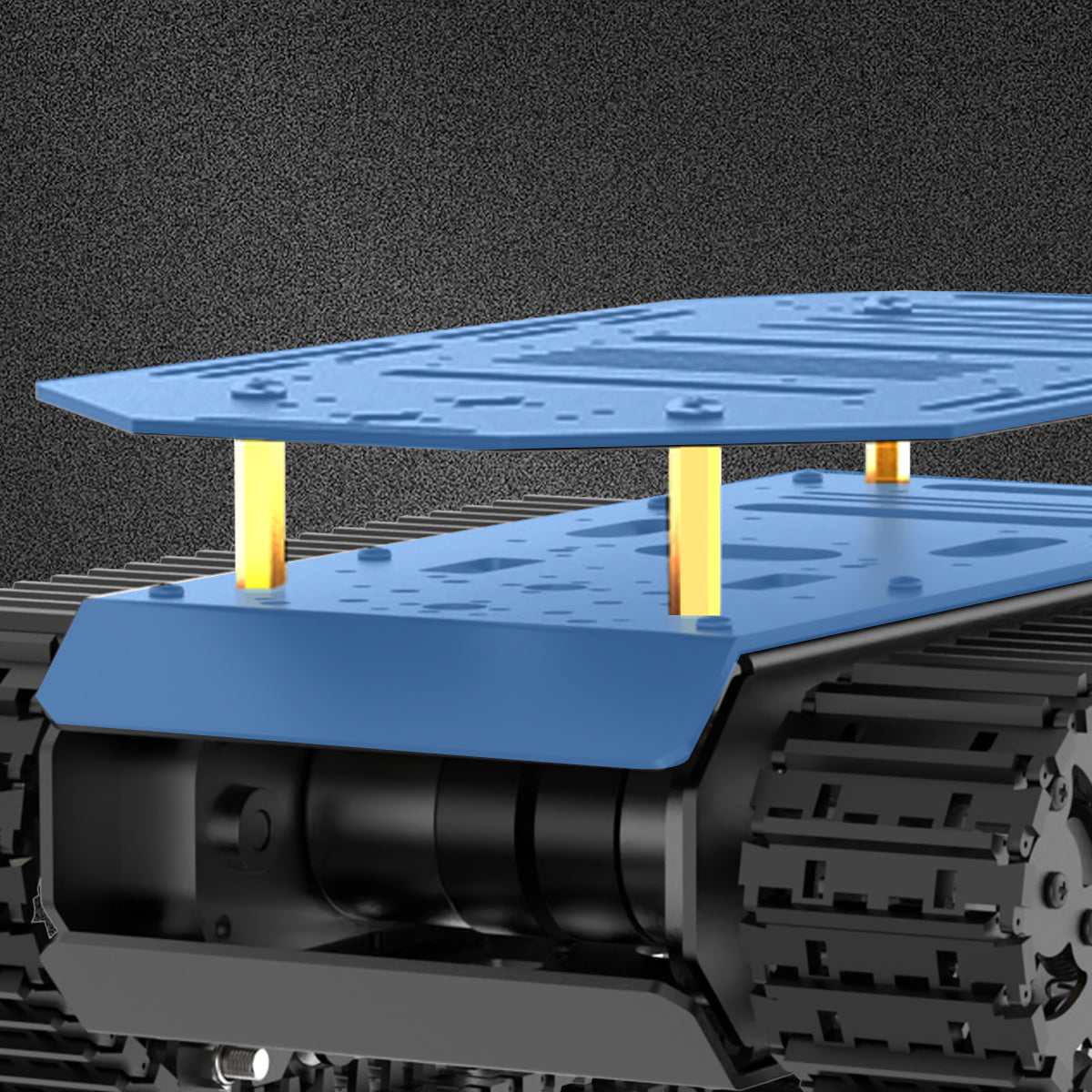

Dual-Layer Structure Ample Expansion Holes
The chassis features a dual-layer structure. The bottom layer includes designated space for the battery, along with numerous M3 and M4 holes for the attachment of various accessories, such as Raspberry Pi, Jetson Nano, microcontrollers, depth cameras, and sensors.

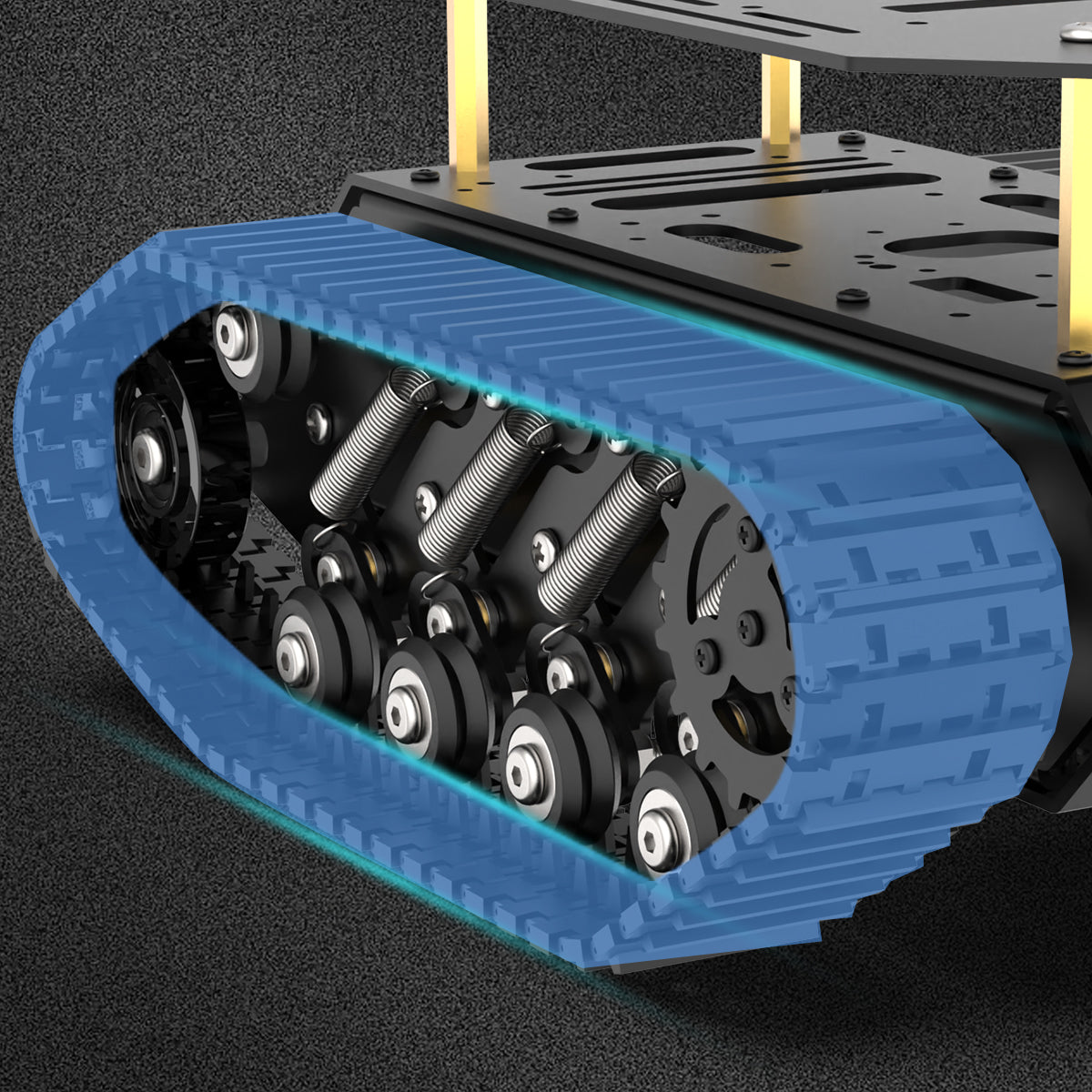

High-Quality Plastic Particle Track
The chassis incorporates high-quality plastic particles, and its dense bulged treads enhance friction, enabling smooth navigation across complex terrains.

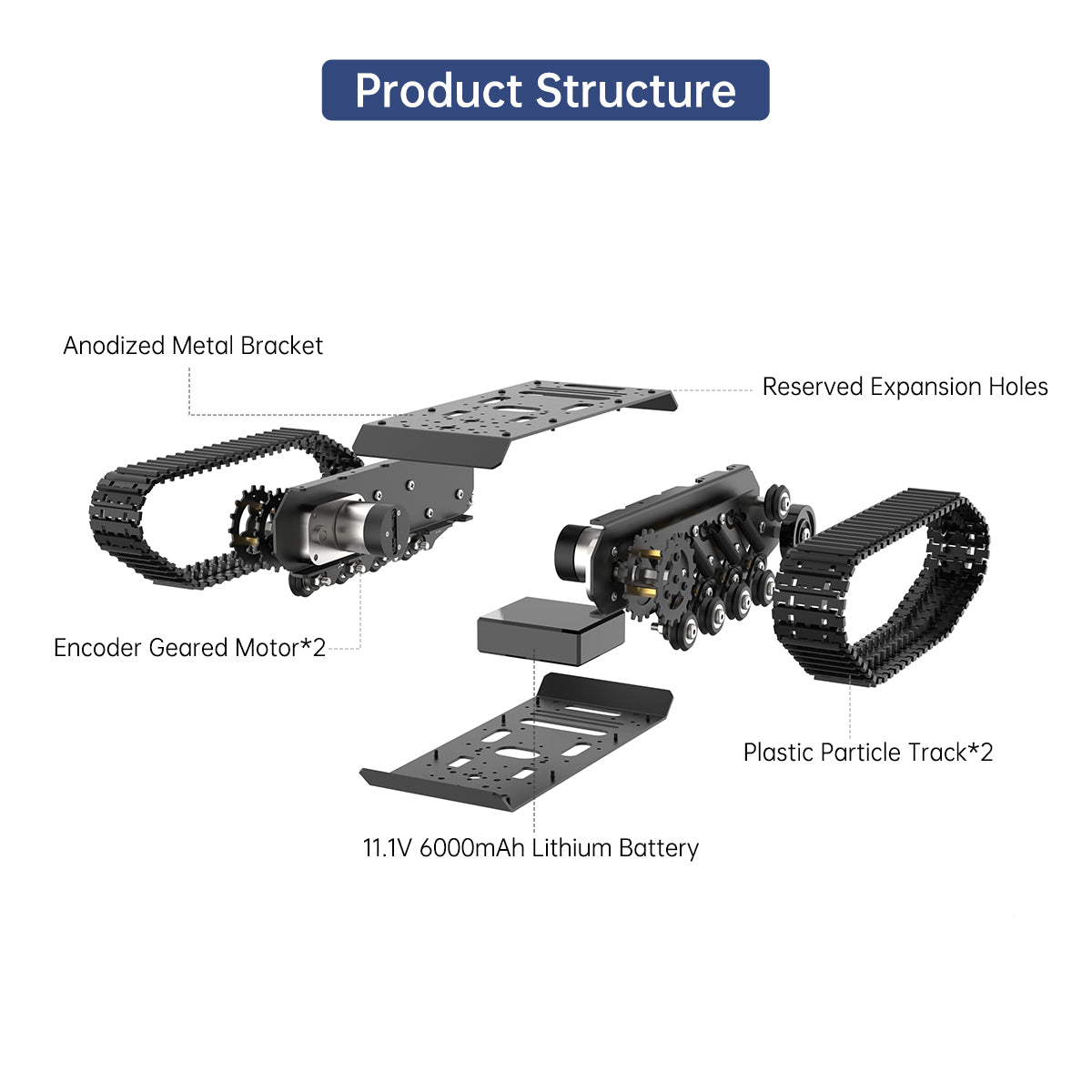

Features
- ①The chassis is equipped with high-performance DC geared motor, high-quality plastic particle track, high-elasticity carbon steel tension spring and high-durability micro bearings, ensuring agile maneuverability across diverse terrains.
- ②The chassis adopts an all-metal aluminum alloy structure with anodized surface, which is beautiful and exquisite.
- ③The suspended shock absorbing tracked chassis can expand electronic systems such as STM32 controller to achieve more creativity.
| Parameters | |||
| Motor type | JGB3865 - 520R45 -12 | Post-reduction speed | 150+10rpm |
| Rated voltage | 12V | Rated torque | 0.15N.m |
| Voltage range | 7-13V | Gear ratio | 45:1 |
| Port type | PH2.0-6PIN | Pre-reduction speed | 6500rpm |
| Stall current | 1.5A | Rated current | 0.1A |
| Stall torque | 0.5N.m | Encoder type | Hall encoder |
| Output axis | 6mm-diameter D-shape eccentric shaft | Motor type | Permanent magnet brushed |
| Parameters | |
| Motor type | JGB3865 - 520R45 -12 |
| Post-reduction speed | 150+10rpm |
| Rated voltage | 12V |
| Rated torque | 0.15N.m |
| Voltage range | 7-13V |
| Gear ratio | 45:1 |
| Port type | PH2.0-6PIN |
| Pre-reduction speed | 6500rpm |
| Stall current | 1.5A |
| Rated current | 0.1A |
| Stall torque | 0.5N.m |
| Encoder type | Hall encoder |
| Output axis | 6mm-diameter D-shape eccentric shaft |
| Motor type | Permanent magnet brushed |
| Parameters | |||

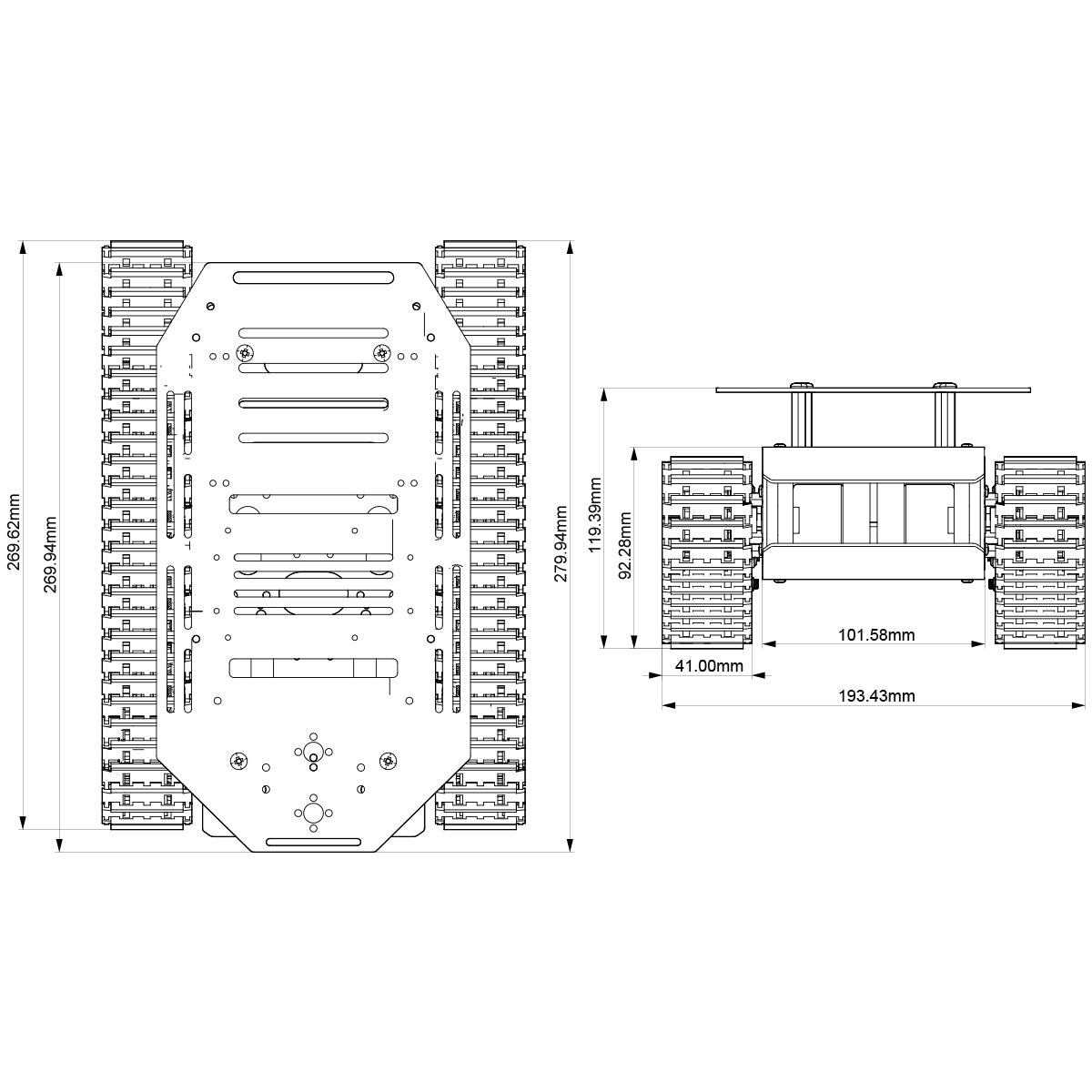

| Material | Aluminum alloy | Thickness | 2mm |
| Width | 143mm | Length | 270mm |
| Weight | 165g | Color | Black |
| Parameters | |||
| Battery model | 11.1V6000mAh lithium battery | Plug | DC5.5*2.5 female/ SM-2P male |
| Battery capacity | 6000mAh | Battery voltage | 11.1V |
| Battery size | 86*60*21mm | Charger | 12.6V |
| Item | Specification |
| Material | Aluminum alloy |
| Thickness | 2mm |
| Width | 194mm |
| Length | 270mm |
| Product weight | Single Layer: 1.4kg Double Layer: 1.6kg |
| Color | Black |
| Package weight | 2.3kg |
| Package size | 320*240*150mm |
